Name: KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-PWS
Price: 5,000.00 USD
Availability: InStock

Home > Products > Environmental Monitoring >

KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KQS-PWS

Request A Quote

Product Details

Measurement Range:

0-1 / 0-3 / 0-5 / 0-10 / 0-15 / 0-20 / 0-30 M/s (selectable)

Air Volume Range:

0-9,999,999 M³/h

Accuracy:

±(0.2 + 2%FS) M/s

Resolution:

0.01 M/s

Starting Wind Speed:

≤ 0.1 M/s

Signal Output:

RS485 (Modbus/ASCII/SERVER) / 0-5 V / 4-20 MA

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Packaging Details

Each unit has individual box, all boxes packed in standard packages or per customer request

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Get Best Price

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Get Best Price

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Get Best Price

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Get Best Price

Contact Now

Product Description

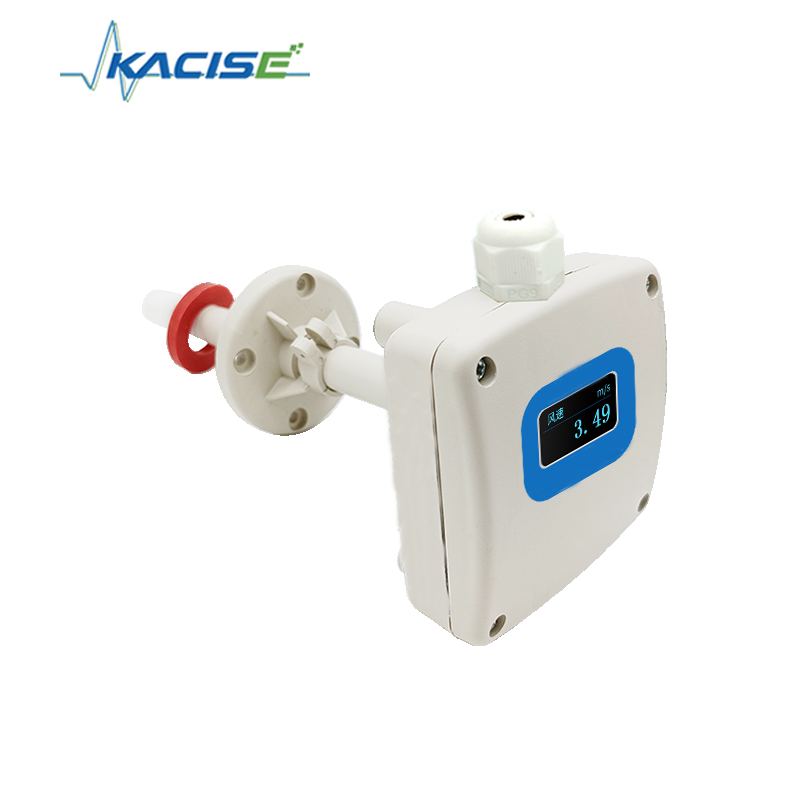

KQS-PWS Duct Wind Speed Sensor

The KQS-PWS duct-type wind speed sensor features a housing made of high-temperature and corrosion-resistant materials. Based on the thermal dissipation principle, it is capable of detecting even very low wind speeds while maintaining stable and reliable performance in harsh environments.

Compared with traditional wind speed sensors, it provides better stability and enables faster, more accurate measurement of micro airflows. Linear compensation and temperature compensation are automatically implemented, ensuring high accuracy and resolution. The sensor has no zero drift and excellent long-term stability, offering a high cost-performance ratio. Additionally, this series can withstand instantaneous high wind speeds and high wind pressure.

Product Features

Well-designed, compact and aesthetically pleasing structure, small in size, easy to carry, and simple to install
High measurement accuracy, wide measurement range, and strong stability
Strong corrosion resistance and weather resistance
Excellent dynamic response and strong anti-interference capability, ensuring accurate measurements
Low power consumption and long circuit lifespan, enabling long-term stable operation
Wide power supply range, with good signal linearity and long transmission distance

Technical Parameters

Item	Specification
Measurement range	□ 0-1 m/s □ 0-3 m/s □ 0-5 m/s □ 0-10 m/s □ 0-15 m/s □ 0-20 m/s □ 0-30 m/s
Air volume range	0-9,999,999 m³/h
Accuracy	±(0.2 + 2%FS) m/s
Resolution	0.01 m/s
Cross-sectional area range	0.01 - 100 m²
Starting wind speed	≤ 0.1 m/s
Sampling frequency	5 Hz
Power supply	DC 5-30 V (when powered at 5 V, cable must be 2×0.5 mm², length ≤ 5 m)
Signal output	RS485 (default Modbus/ASCII/SERVER)/0-5 V /4-20 mA
