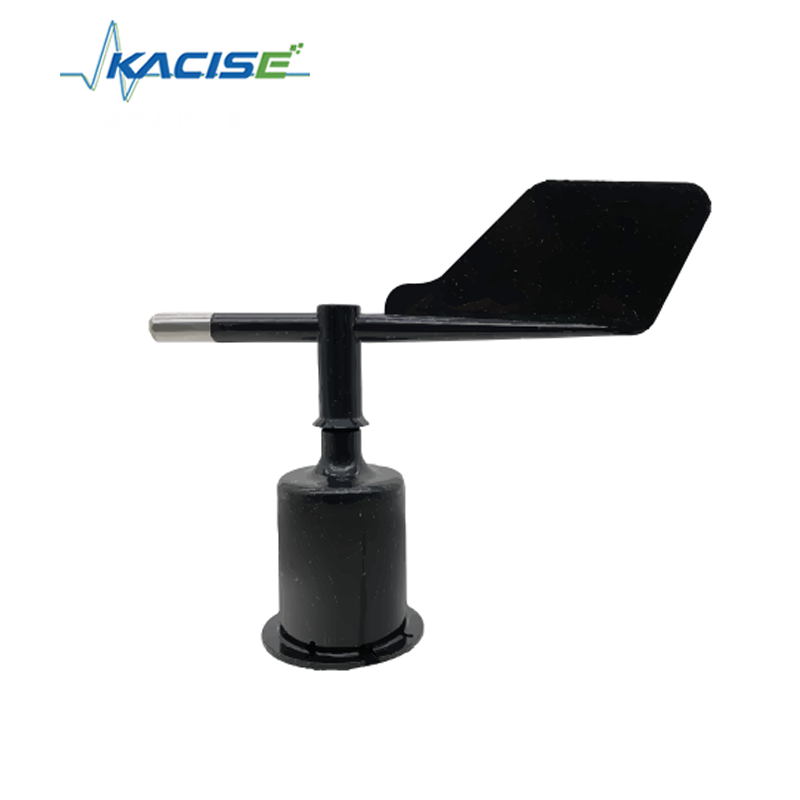

Name: KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FX1
Price: 5,000.00 USD
Availability: InStock

Home > Products > Environmental Monitoring >

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KQS-FX1

Request A Quote

Product Details

Measurement Range:

0-359° Full Direction

Starting Wind Speed:

≤ 0.8 M/s

Accuracy:

±3°

Resolution:

1°

Power Supply:

5 V Or 9-30 V DC Wide-voltage Optional

Signal Output:

4-20 MA / 0-20 MA, 0-2.5 V / 0-5 V / 1-5 V, RS485 / RS232 Optional

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Packaging Details

Each unit has individual box, all boxes packed in standard packages or per customer request

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,

Supply Ability

1000 Piece/Pieces per Week negotiable

Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time

Get Best Price

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Get Best Price

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Get Best Price

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Get Best Price

Contact Now

Product Description

KQS-FX1 Wind Direction Sensor

Wind Direction Sensor KQS-FX1

Product Introduction

The KQS-FX1 is a full 360° wind direction sensor that uses a precision angle sensing element internally. The KQS-FX1-8 eight-direction wind sensor adopts a 4-optocoupler system to determine wind direction. It uses a low-inertia ABS wind vane to ensure quick response to wind direction changes and good dynamic performance. This product features excellent linearity, high accuracy, no dead zone, strong lightning resistance, easy observation, and stable and reliable operation. It is widely used in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture and industry, transportation, and other fields.

Product Features

Independently patented design; each sensor is wind-tunnel calibrated
Uses high-quality bearings, low starting wind speed, and stable performance
Easy installation; supports both bottom and side cable outlet configurations

Technical Parameters

Item	Specification
Range	0-45 m/s (current/voltage output) 0-70 m/s (pulse, RS485, RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed value)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5 V or 9-30 V wide-voltage optional
Net weight	125 g
Signal output	Current: 4-20 mA/0-20 mA Voltage: 0-2.5 V / 0-5 V /1-5 V Serial port: RS485 / RS232 optional
Cable length	Standard: 0.8 m Others:

Dimension
