Name: KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FS1
Price: 5,000.00 USD
Availability: InStock

Home > Products > Environmental Monitoring >

KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KQS-FS1

Request A Quote

Product Details

Measurement Range:

0-45 M/s (analog Output) / 0-70 M/s (digital/pulse Output)

Starting Wind Speed:

≤ 0.8 M/s

Accuracy:

±(0.5 + 0.02V) M/s

Resolution:

0.1 M/s

Power Supply:

5 V Or 9-30 V DC Wide-voltage Optional

Signal Output:

4-20 MA / 0-20 MA, 0-2.5 V / 0-5 V / 1-5 V, RS485 / RS232 Optional

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Packaging Details

Each unit has individual box, all boxes packed in standard packages or per customer request

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Get Best Price

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Get Best Price

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Get Best Price

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Get Best Price

Contact Now

Product Description

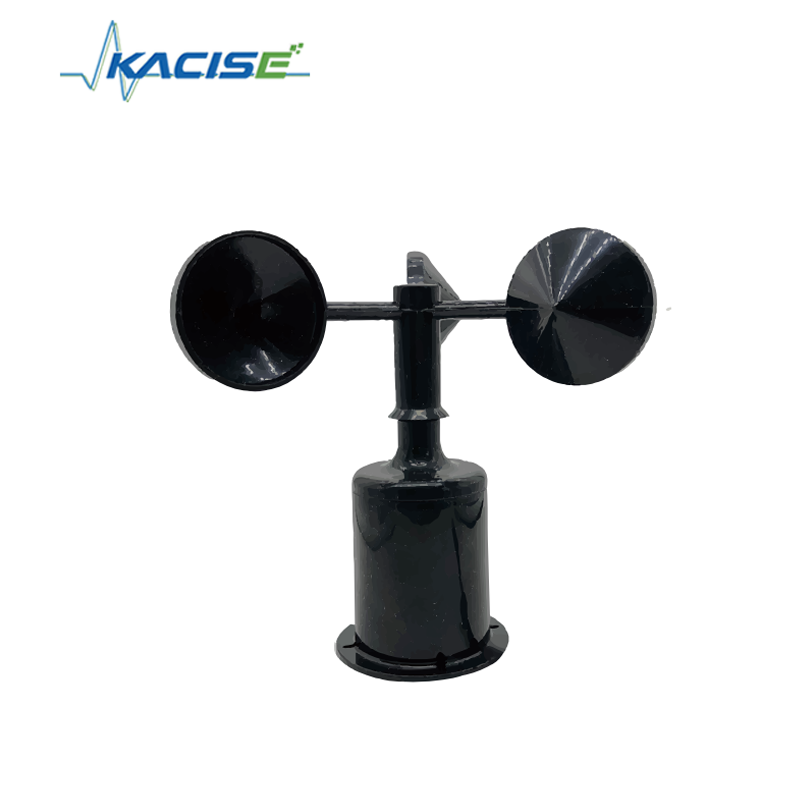

KQS-FS1 Wind Speed Sensor

Product Overview

The KQS-FS1 wind speed sensor adopts a traditional three-cup anemometer structure. The wind cups are made of high-strength ABS material, providing excellent durability and low starting wind speed. The built-in signal processing unit can output corresponding wind speed signals according to user requirements, supporting RS485/RS232 communication, pulse output, voltage output, or current output.

This sensor is widely used in advertising barrier systems, meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation applications.

Product Features

Independently patented design and development; each sensor is calibrated in a wind tunnel
Uses high-quality bearings, ensuring low starting wind speed and stable performance
Easy to install, compatible with bottom or side cable outlet mounting

Technical Parameters

Item	Parameter
Measuring range	□ 0-45 m/s (current/voltage output) □ 0-70 m/s (pulse / RS485 / RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5V or optional 9-30V wide-voltage supply
Net weight	125 g
Signal output	Current: □ 4-20 mA / □ 0-20 mA Voltage: □ 0-2.5 V / □ 0-5 V / □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
