Name: KQL-QXY Handheld Weather Station with 16 Compass Directions Wind Direction, 128x64 Backlit LCD Display, and 38,000 Records Storage
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQL-QXY
Price: 5,000.00 USD
Availability: InStock

Home > Products > Environmental Monitoring >

KQL-QXY Handheld Weather Station with 16 Compass Directions Wind Direction, 128x64 Backlit LCD Display, and 38,000 Records Storage

Place of Origin:

CHINA

Brand Name:

KunQuan

Certification:

Model Number:

KQL-QXY

Request A Quote

Product Details

Display:

128x64 Backlit LCD

Wind Direction:

16 Compass Directions, Auto North-Seeking

Storage:

38,000 Records

Power Supply:

3 X AA 1.5V Batteries

Weight:

0.5 Kg (1.8 Kg With Case)

Interface:

USB (Data Download)

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,

Supply Ability

1000 Piece/Pieces per Week negotiable

Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time

Get Best Price

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Get Best Price

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Get Best Price

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Get Best Price

Contact Now

Product Description

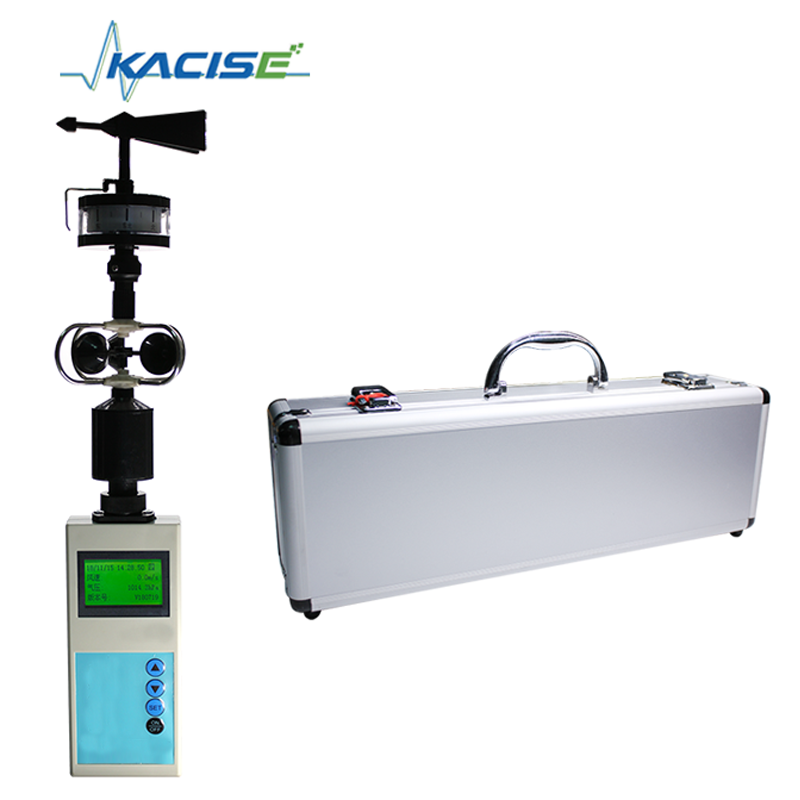

KQL-QXY Handheld Weather Station

Product Introduction

The KQL-QXY handheld weather station is a compact, portable meteorological instrument that integrates multiple measurement functions into one easy-to-operate mobile device. Utilizing precision sensors and intelligent processing technology, it simultaneously measures, records, and stores four essential meteorological parameters: wind speed, atmospheric pressure, temperature, and humidity.

The device features a mechanical wind vane combined with automatic north-seeking functionality, enabling users to easily and intuitively read wind direction across 16 compass points. With its built-in high-capacity FLASH memory chip, the station can store at least one year of meteorological data when configured with a 15-minute logging interval.

A standard USB communication interface allows for straightforward data transfer to computers using the supplied USB cable and weather station software, facilitating comprehensive data processing and analysis.

Technical Parameters

Item	Measurement Parameter	Range	Accuracy	Resolution
Meteorological parameters	Wind speed	0-30 m/s	±(0.5 + 0.02V) m/s (V = real-time wind speed)	0.1
	Wind direction	16 directions	±1 direction	1 direction
	Air temperature	-40 to 100°C	±0.3°C	0.1°C
	Relative humidity	0-100% RH	±5% RH	0.1% RH
	Atmospheric pressure	10-1100 hPa	±0.5 hPa	0.1 hPa
Power supply	3 × AA 1.5V dry batteries
Storage	38,000 data records
Weight	Approx. 0.5 kg (about 1.8 kg with aluminum case)
Dimensions	410 mm × 70 mm × 70 mm
Operating environment	Temperature: -20°C to 80°C; Humidity ≤100% RH (no condensation)

Product Features

128 × 64 large LCD screen with backlight, displaying air temperature, humidity, wind speed, and atmospheric pressure
Mechanical automatic north-seeking dial and wind direction pointer for real-time wind direction indication (16 directions)
Large-capacity data storage supporting up to 38,000 meteorological records with adjustable logging interval from 1 to 240 minutes
Standard USB communication interface for easy data download
System language switchable between Chinese and English
Powered by three AA 1.5V batteries with low power consumption design for extended standby time
