Name: Digital Differential Pressure Gauge 100mm with 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-2000
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Digital Differential Pressure Gauge 100mm with 4-20mA Output

digital differential pressure gauge 100mm

pressure gauge 4-20mA output

precision pressure sensor gauge

Brand Name:

Dwyer

Certification:

Model Number:

DM-2000

Request A Quote

Digital Differential Pressure Gauge 100mm with 4-20mA Output

Product Details

Accuracy:

±1% F.S. At 70°F.

Connection Location:

Screw-type Terminal Bloc

Dial Diameter:

100

Warranty:

1 Year

Customized Support:

OEM, ODM

Temperature Effect:

20 To 120°F (-6.67 To 48.9°C).

Highlight:

digital differential pressure gauge 100mm

pressure gauge 4-20mA output

precision pressure sensor gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell STT850 Precision Pressure Transmitter for Industrial Use

Get Best Price

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Get Best Price

Yokogawa FLXA202 2-Wire Dual Channel Transmitter Analyzer

Get Best Price

Yokogawa EJA430E Gauge Pressure Transmitter 4-20mA Output

Get Best Price

86--17719566736

Contact Now

Product Description

Digital Differential Pressure Gauge 100mm with 4-20mA Output

Product Attributes

Attribute	Value
Accuracy	±1% F.S. At 70°F
Connection Location	Screw-type Terminal Block
Dial Diameter	100
Warranty	1 Year
Customized Support	OEM, ODM
Temperature Effect	20 To 120°F (-6.67 To 48.9°C)

Product Description

OEM ODM Digital Differential Pressure Gauge 100mm IECEE

Product Introduction

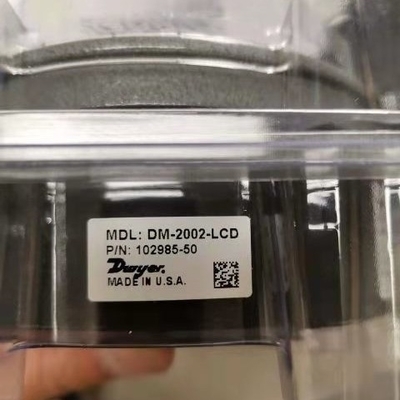

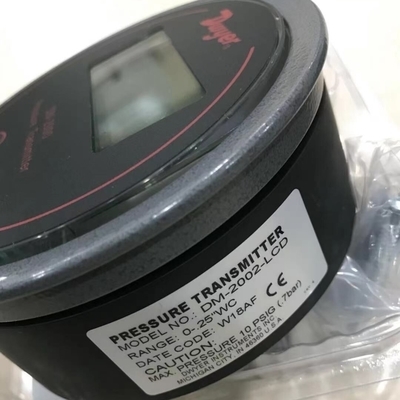

Dwyer DM-2002 Series Digital differential pressure gauge DM-2002-LCD Output Signal 4 to 20 mA.

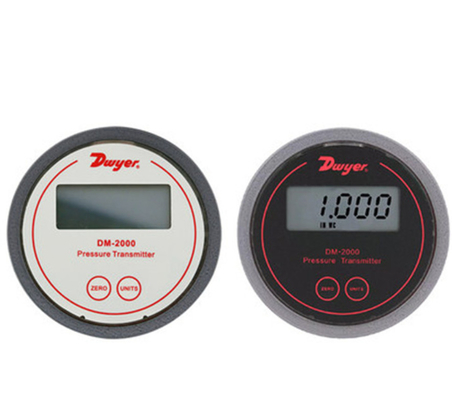

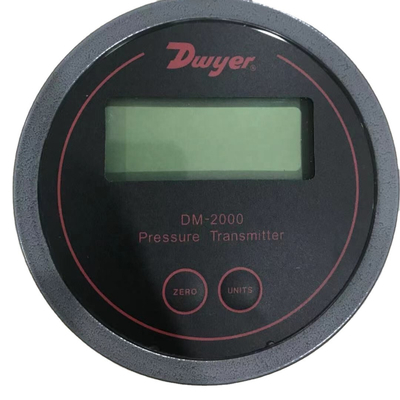

DM-2000 series differential pressure transmitter with digital display is used to monitor the differential pressure of air or other compatible gases, output standard 4-20mA. It is the same size as the 2000 series Magnehelic differential pressure gauge mounting hole, which is easy to replace and upgrade. There are many ranges to choose from, and special ranges can also be customized.

FRP molded pressure joints and housings are used for easy and simple installation. Numeric keys to calibrate zero and span. Optional three-and-a-half LCD digital display for on-site indication, according to different ranges, there are 4 to 6 engineering units for selection.

Technical Specs at a Glance

Parameter	Details
Model Range Examples	DM-2002: 0-0.25" w.c. / DM-2012: ±0.25" w.c. / DM-2007: 0-5" w.c.
Accuracy	±1% FS at 70°F (21°C)
Output Signal	4-20 mA (2-wire)
Power Supply	10-35 VDC
Display (Optional)	3.5-digit LCD, 0.7" height
Process Connections	1/8" ID tubing
Enclosure Material	Glass-filled plastic
Weight	4.8 oz (136 g)
Agency Approvals	CE certified
