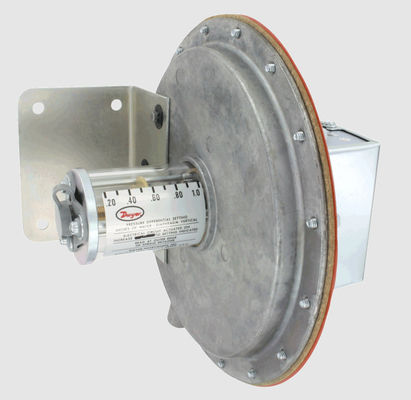

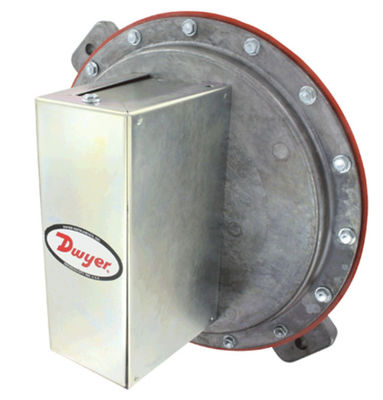

Name: Dwyer 1638 Series Precision Pressure Switches
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 1638-0,1638-1,1638-10,1638-2,1638-5
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer 1638 Series Precision Pressure Switches

1638 Series Precision Pressure Switches

Dwyer Precision Pressure Switches

Precision Pressure Switches

Brand Name:

Dwyer

Certification:

Model Number:

1638-0,1638-1,1638-10,1638-2,1638-5

Request A Quote

Dwyer 1638 Series Precision Pressure Switches

Product Details

Service:

Air And Non-combustible, Compatible Gases

Temperature Limits:

-30 To 110°F

Pressure Limits:

10 Psig (68.95 KPa) Continuous, 25 Psig (172.4 KPa) Surge

Repeatability:

±1%

Process Connections:

1/8" Female NPT

Mounting Orientation:

Diaphragm In Vertical Position

Highlight:

1638 Series Precision Pressure Switches

Dwyer Precision Pressure Switches

Precision Pressure Switches

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell STT850 Precision Pressure Transmitter for Industrial Use

Get Best Price

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Get Best Price

Yokogawa FLXA202 2-Wire Dual Channel Transmitter Analyzer

Get Best Price

Yokogawa EJA430E Gauge Pressure Transmitter 4-20mA Output

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer 1638 Series Precision Pressure Switches

Product Specifications

Attribute	Value
Service	Air And Non-combustible, Compatible Gases
Temperature Limits	-30 To 110°F
Pressure Limits	10 Psig (68.95 KPa) Continuous, 25 Psig (172.4 KPa) Surge
Repeatability	±1%
Process Connections	1/8" Female NPT
Mounting Orientation	Diaphragm In Vertical Position

Product Features

Visible Set Point Indicator - A clear, easy-to-read dial allows real-time visualization of the pressure set point, simplifying initial setup, operation, and troubleshooting. This feature reduces downtime by enabling quick identification of activation thresholds without additional tools.
Large Diaphragm for Low-Range Accuracy - The switches utilize a large diaphragm design to deliver precise pressure sensing in low ranges, ensuring reliable activation at exact pressure points. This makes them suitable for applications where minor pressure fluctuations require responsive control, such as fan coil systems, air handlers, or fluid level monitoring.
High Current Load Capability - With the ability to support current loads up to 15 amps, the 1638 Series eliminates the need for additional relays or components in most small electrical systems. This simplifies wiring in HVAC installations, pump control, and process equipment, reducing installation costs and complexity.
Versatile Model Selection - Available models cover a range of pressure spans to match diverse application needs:
- 1638-0: Ultra-low range for delicate pressure sensing
- 1638-1/2/5/10: Graduated ranges for medium to higher low-pressure applications
Rugged Construction - Built to withstand industrial environments, the switches offer durable performance in HVAC ducts, process lines, and mechanical systems.
