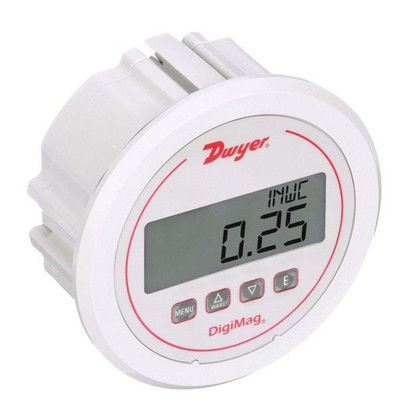

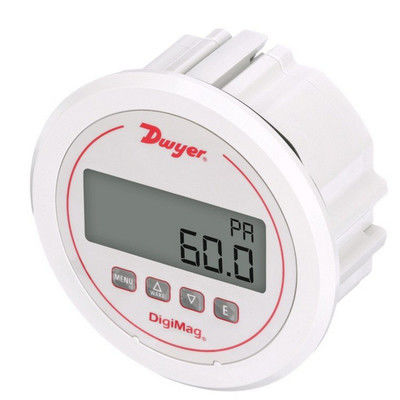

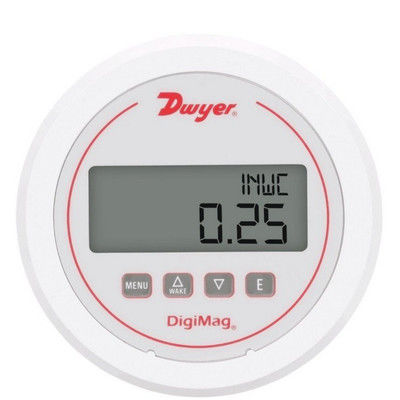

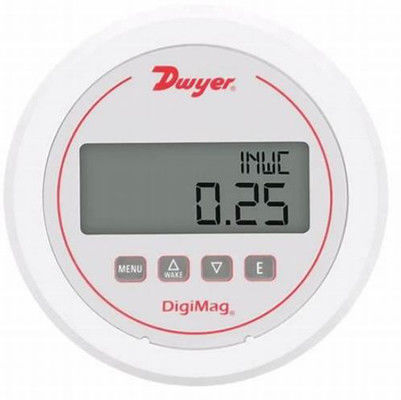

Name: Dwyer DM-1102 Digital Differential Pressure Gauge
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-1102
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer DM-1102 Digital Differential Pressure Gauge

DM-1102 Pressure Gauge

Digital Differential Pressure Gauge

Digital Pressure Gauge

Brand Name:

DWYER

Certification:

Model Number:

DM-1102

Request A Quote

Product Details

Current Consumption:

5 MA Maximum

Electrical Connections:

Removable Terminal Block For 16 To 26 AWG

Electrical Entry:

Cable Gland For 0.114 To 0.250" (2.9 To 6.4 Mm) Diameter Cable

Enclosure Rating:

NEMA 4X (IP66)

Accuracy:

±1% FS Including Linearity

Temperature Limits:

0 To 140°F (-18 To 60°C)

Highlight:

DM-1102 Pressure Gauge

Digital Differential Pressure Gauge

Digital Pressure Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell STT850 Precision Pressure Transmitter for Industrial Use

Get Best Price

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Get Best Price

Yokogawa FLXA202 2-Wire Dual Channel Transmitter Analyzer

Get Best Price

Yokogawa EJA430E Gauge Pressure Transmitter 4-20mA Output

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer DM-1102 Digital Differential Pressure Gauge

Product Attributes

Attribute	Value
Current Consumption	5 MA Maximum
Electrical Connections	Removable Terminal Block For 16 To 26 AWG
Electrical Entry	Cable Gland For 0.114 To 0.250" (2.9 To 6.4 Mm) Diameter Cable
Enclosure Rating	NEMA 4X (IP66)
Accuracy	±1% FS Including Linearity
Temperature Limits	0 To 140°F (-18 To 60°C)

Product Description

Dwyer DM-1102 Digital Differential Pressure Gauge

Product Introduction

The Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge is a precision instrument designed for low-pressure monitoring in air and non-combustible gas systems. Part of the DM-1000 series, this gauge combines the reliability of the Magnehelic analog predecessor with digital versatility, making it ideal for isolation rooms, hospitals, and temporary installations where accuracy and ease of use are critical.

Product Features

Digital Versatility:

Field-programmable for pressure, air velocity, or flow measurements. 4-button interface for quick zero/span calibration and unit conversion (in. w.c., Pa, kPa, mBar).
Filter Maintenance Alert:

User-set dirty filter alarm with blinking display to prompt maintenance.
Dual Power Options:

9V battery (150-hour life at 1-second update) or 9-24 VDC for wired installations. Battery backup ensures uninterrupted operation during power outages.
Rugged Design:

IP66 rating protects against dust and water jets, suitable for harsh environments.

Technical Specifications

Parameter	Detail
Model	DM-1102
Pressure Range	0-0.25" w.c. (0-60 Pa)
Accuracy	±1% full scale (FS)
Media	Air and non-combustible gases
Housing	Glass-filled plastic (NEMA 4X/IP66 rated)
Power	9V battery or 9-24 VDC (battery acts as backup when both connected)
Display	4-digit LCD (0.60"H x 0.33"W), real-time readings in in. w.c. or Pa
Temperature Range	0-140°F (-18-60°C)
Long-Term Stability	±1% FS/year
