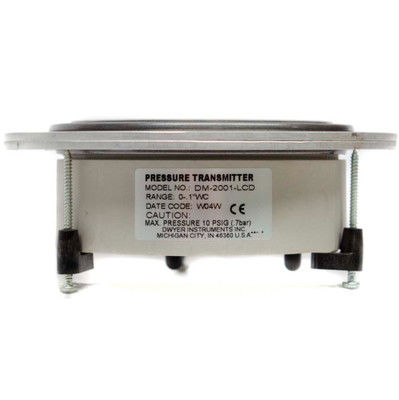

Dwyer DM-2000 Series Digital Differential Pressure Transmitter

The Dwyer DM-2000 Series Digital Differential Pressure Transmitter is engineered to measure pressure differences in air and non-combustible gas systems, delivering a standardized 4-20mA output signal for seamless integration with industrial control systems. Designed with a compact housing compatible with Magnehelic gauges, this transmitter combines field-calibratable accuracy with rugged durability for demanding applications.

• Accuracy & Stability: ±1% full-scale (FS) accuracy at 70°F (21°C), with ±1% FS/year long-term stability.
• Standardized Output: 4-20mA (2-wire) signal compatible with PLCs, HMIs, and building management systems (BMS).
• Field Calibration: Digital push-button zero and span adjustments eliminate the need for potentiometers.

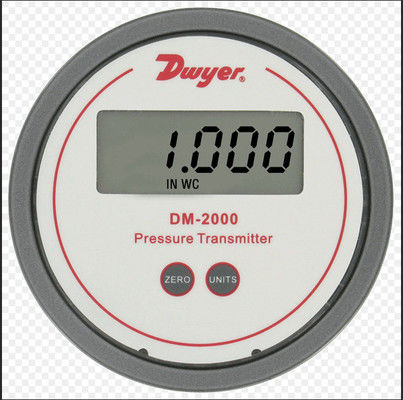

• Optional Display: 3.5-digit LCD (0.7" height) with selectable engineering units (Pa, in. w.c., kPa, etc.).

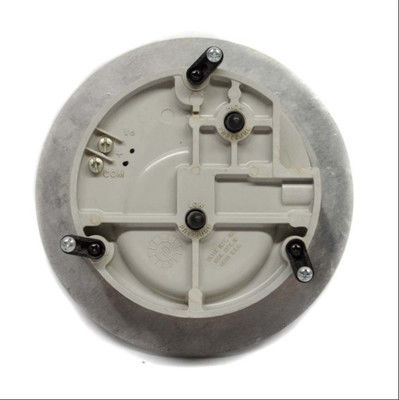

• Magnehelic® Compatibility: Identical mounting dimensions for easy retrofit from analog to digital monitoring.
