Product Description

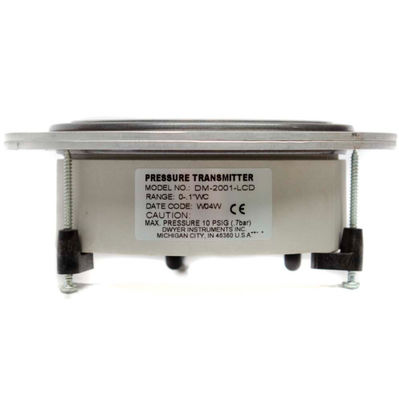

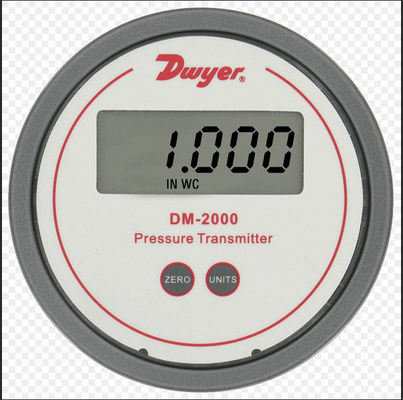

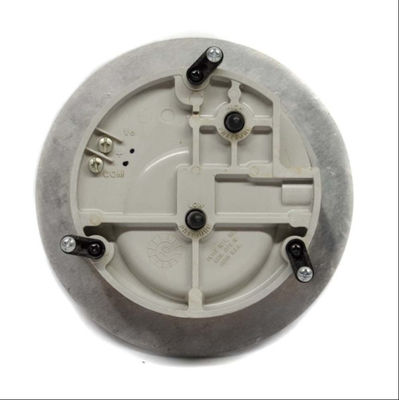

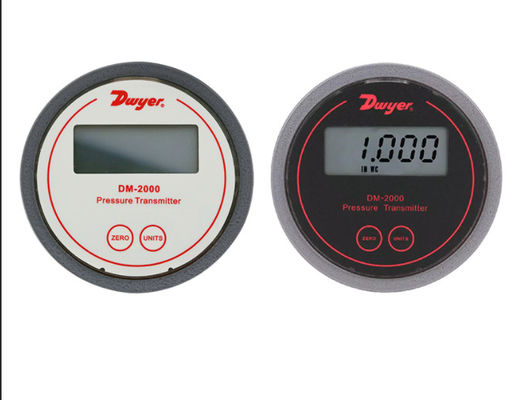

Dwyer DM-2000 Series Digital Differential Pressure Transmitter

Brand Name	Dwyer
Accuracy	±1% F.S. At 70°F
Pressure Range	0-1250pa
Power Supply	10-35VDC
Display	LCD
Output	4-20mA

Product Overview

The Dwyer DM-2000 Series Digital Differential Pressure Transmitter is engineered to measure pressure differences in air and non-combustible gases, outputting a standard 4-20 mA signal for seamless integration with industrial control systems.

With a pressure range of 0-1250 Pa and ±1% FS accuracy at 70°F, it ensures precise monitoring for filter differential pressure, fan control, and building static pressure applications.

The transmitter features a glass-filled plastic housing compatible with standard Magnehelic® gauge mounting dimensions, enabling easy field upgrades. Digital push-button zero/span adjustments and an optional 3.5-digit LCD display enhance usability, while its rugged design withstands 10 psig operating pressure for reliable performance.

Key Features

Precision Measurement: ±1% FS accuracy at 70°F with ±1% FS/year long-term stability. Responds quickly to pressure changes for real-time alerts in critical scenarios.
Signal Output & Compatibility: 4-20 mA output (2-wire) compatible with building automation systems. Same mounting dimensions as Magnehelic® gauges for drop-in replacements.
User-Friendly Design: Digital push-button zero/span calibration eliminates potentiometer adjustments. Optional 3.5-digit LCD (0.7" H) with field-selectable engineering units (4-6 units depending on range).
Durable Construction: Glass-filled plastic housing with 10 psig pressure limit (0.69 bar). Operating temperature: 20-120°F (-6.67-48.9°C).
Installation Flexibility: Vertical mounting with 1/8" ID tubing connections for quick pressure port setup. Tamper-proof button configuration prevents accidental setting changes.

Technical Specifications

Parameter	Details
Model	DM-2000
Pressure Range	0-1250 Pa
Accuracy	±1% FS at 70°F (21°C)
Output Signal	4-20 mA (2-wire)
Power Supply	10-35 VDC
Current Consumption	38 mA max
Display (Optional)	3.5-digit LCD, 0.7" height
Process Connections	1/8" ID tubing
Enclosure Material	Glass-filled plastic
Weight	4.8 oz (136 g)
