Name: Dwyer Magnesense MS-111 Micro Differential Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MS-111
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer Magnesense MS-111 Micro Differential Pressure Transmitter

Dwyer MS-111 Pressure Transmitter

Micro Differential Pressure Transmitter

Dwyer Magnesense Pressure Transmitter

Brand Name:

Dwyer

Certification:

Model Number:

MS-111

Request A Quote

Product Details

Brand Name:

Dwyer

Model:

MS-111

Response Time:

300 Msec

Temperature Limits:

0 To 150°F (-18 To 66°C)

Output Signal:

4~20 MA

Display Mode:

Digital Display

Highlight:

Dwyer MS-111 Pressure Transmitter

Micro Differential Pressure Transmitter

Dwyer Magnesense Pressure Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell STT850 Precision Pressure Transmitter for Industrial Use

Get Best Price

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Get Best Price

Yokogawa FLXA202 2-Wire Dual Channel Transmitter Analyzer

Get Best Price

Yokogawa EJA430E Gauge Pressure Transmitter 4-20mA Output

Get Best Price

86--17719566736

Contact Now

Product Description

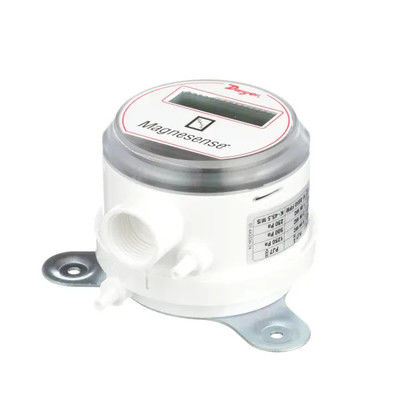

Dwyer Magnesense MS-111 Micro Differential Pressure Transmitter

Product Attributes

Brand Name	Dwyer
Model	MS-111
Response Time	300 Msec
Temperature Limits	0 To 150°F (-18 To 66°C)
Output Signal	4~20 MA
Display Mode	Digital Display

Product Description

The Dwyer Magnesense MS-111 is a versatile micro differential pressure transmitter designed for precise monitoring of pressure and air velocity in industrial and commercial systems. Leveraging patented magnetic sensing technology, this compact device combines field-configurable functionality with rugged durability, making it ideal for building automation, HVAC, and process control applications.

Product Features

High Accuracy: ±1% full-scale (FS) for 2"-5" w.c. ranges; ±2% FS for 1" w.c. (250 Pa) at standard conditions.
Flexible Output: 4-20 mA (2-wire) signal for seamless integration with control systems, supporting up to 1250 Ω loop resistance.
Field Configurability: Selectable English (in. w.c.) or metric (Pa) units, with adjustable damping (0.5-15 sec.) for noise reduction.
Square Root Output: Enables direct flow calculation when used with Pitot tubes or orifice plates.
Rugged Enclosure: NEMA 4X (IP66) rating for protection against dust, water, and harsh environments.

Technical Specifications

Model	MS-111
Pressure Range	Selectable: 1", 2", 5" w.c. (250, 500, 1250 Pa)
Media	Air and non-combustible gases
Power Supply	10-35 VDC (2-wire); 17-36 VDC / 21.6-33 VAC (3-wire)
Temperature Range	-18-66°C (-4-150°F)
Pressure Limits	1 psi (operating); 10 psi (burst)
Response Time	300 ms (95% response with adjustable damping)
Connections	3/16" ID tubing (pressure); 1/2" NPT electrical entry with cable gland
Mounting	Vertical orientation with diaphragm in vertical position
Weight	230 g (8.1 oz)
Certifications	CE compliant
