KUS550 4 - 20mA Ultrasonic Level Sensor Small Size Light Weight

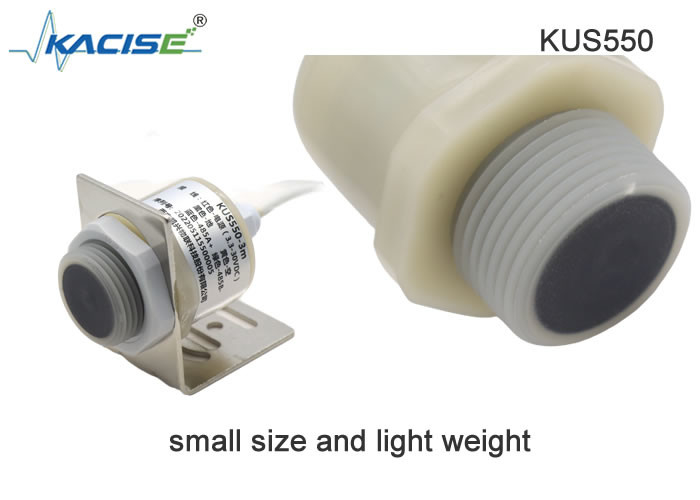

• Compact design with small size and light weight

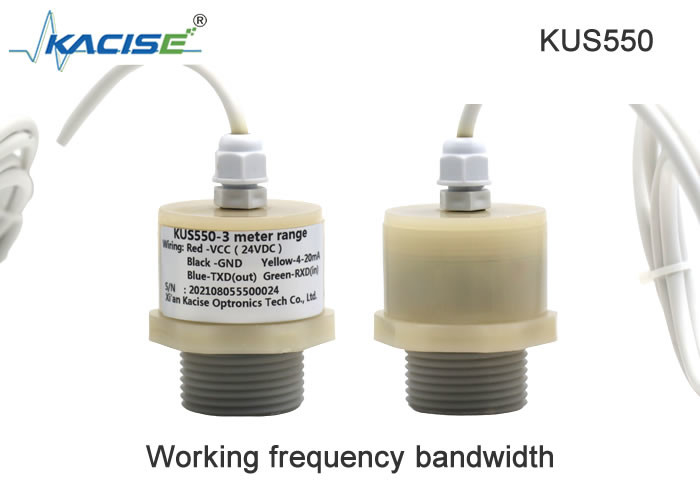

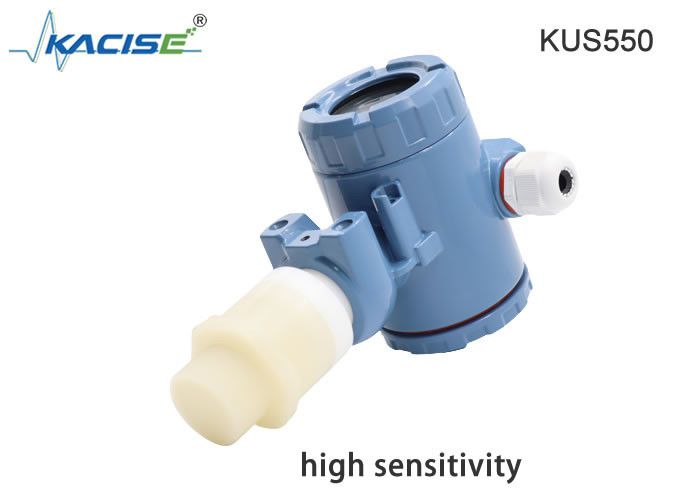

• Wide operating frequency with high sensitivity
• Versatile for diverse industrial applications
• Low power consumption with efficient energy management
• High precision measurement with 0.1mm resolution
• Robust construction with IP68 protection rating

The KUS550 low-power ultrasonic level sensor is designed for efficient liquid level measurement with minimal energy consumption. Featuring a short settling time (under 1ms) and excellent stability, this sensor is ideal for applications requiring quick response and low power operation.

With digital temperature compensation and a wide operating range (-40 to 85℃), the KUS550 delivers high accuracy measurements while maintaining reliability in demanding environments. Its shock-resistant PVDF housing ensures durability in industrial settings.

The sensor operates with exceptional energy efficiency:

• Sleep state: <0.3mA (0.00099W at 3.3V)
• Wave state: <20mA
• Detection state: <5mA

Power optimization is achieved through:

• Advanced low-power ICs
• Precise circuit power management
• MCU sleep mode activation when idle

Ideal for IoT solutions and industrial monitoring in:

• Water management (tanks, reservoirs, treatment plants)
• Municipal infrastructure (manholes, inland waterways)
• Industrial processes (petrochemical, food processing, steel)
• Energy sector (hydropower, coal mines, electrical plants)

Enables real-time data collection and cloud-based monitoring to reduce manual inspection costs and improve system oversight.

For temperatures below 0℃, proper protective measures must be implemented. When mounting in through holes using steel nuts, ensure fixation at the middle of the housing thread for optimal performance.

Standard model: KUS550 RS485 with 2m maximum range

Custom configurations available for output type (4-20mA, 0-5V, 0-3V, RS485, TTL) and detection range (up to 5m).
