Rs485 Intelligent Ultrasonic Sensor 4 - 20mA Wide Range

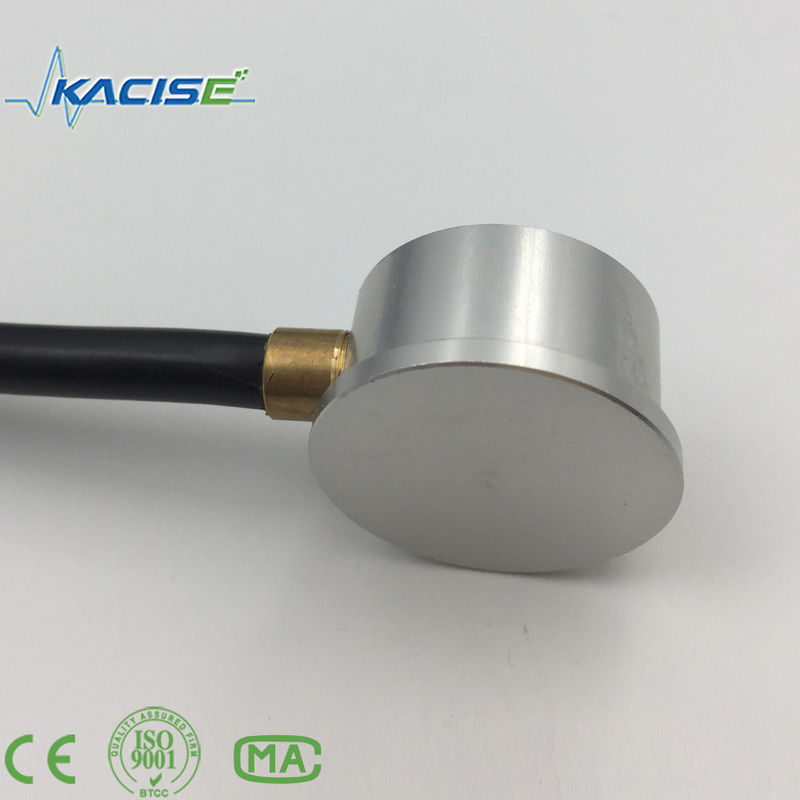

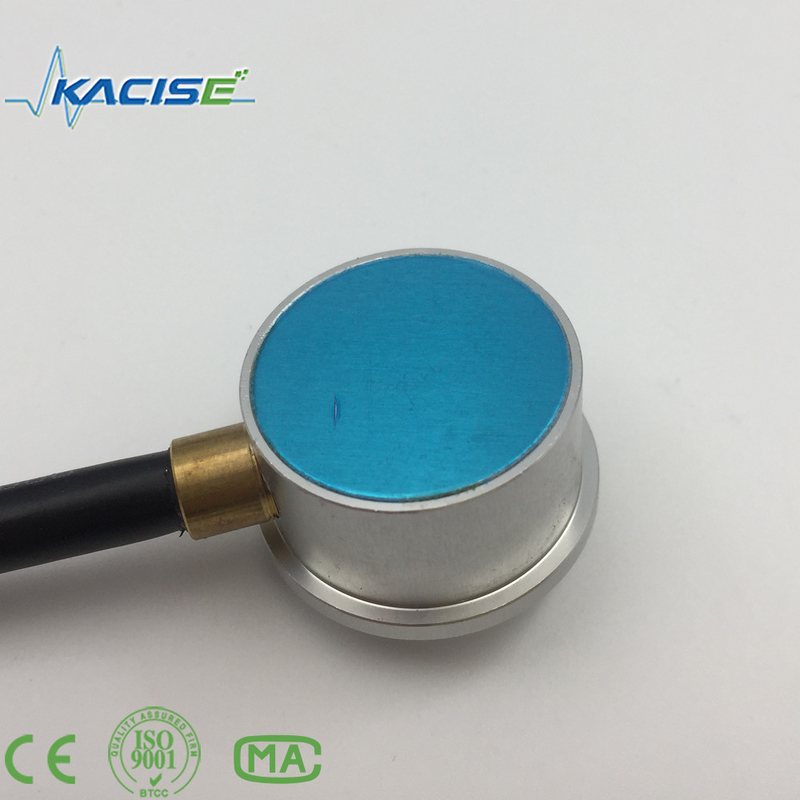

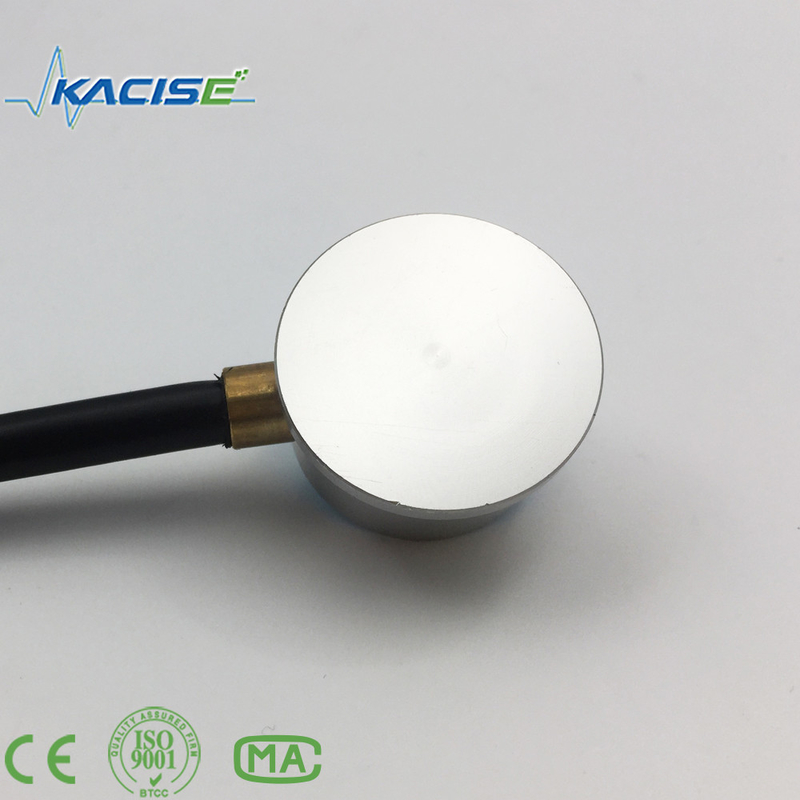

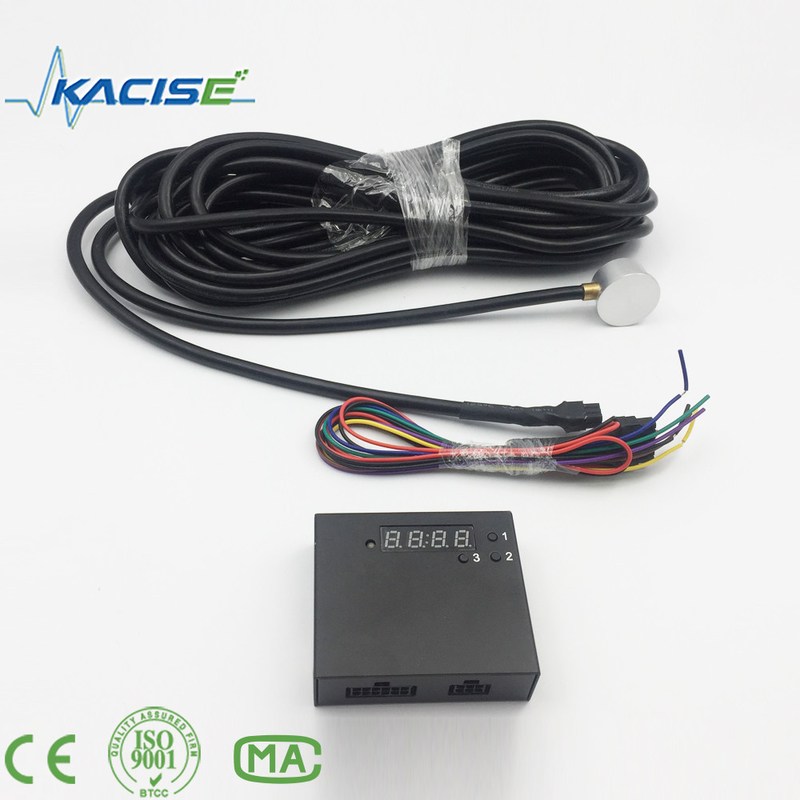

This external liquid level sensor operates on sonar ranging principles, utilizing an integrated temperature sensor to process sonar signals. The sensor is mounted on the exterior wall of the tank. Using patented algorithms, it calculates liquid height and transmits data to remote control systems (e.g., DCS) via 4-20mA, HART, RS-485, or Modbus protocols.

The system measures the time taken for signals to transmit and reflect from the liquid surface. These signals are processed through patented algorithms to determine liquid height using the formula:

H=αV(t-t1)/2

Where:
H = height of the liquid
V = velocity of sound in the liquid
t = time between transmitted and received signal
t_g = propagation time in the tank wall
α = liquid compensation factor

• LPG tanks
• Liquid ammonia tanks
• Liquid chlorine tanks
• Liquid propene/propane tanks
• Fuel tanks
• Acids/solvents tanks
• Concentrated sulfuric acid (98%) tanks
• Nitric acid tanks
• Hydrofluoric acid tanks
• Hydrochloric acid tanks

• True non-invasive sensing technology
• External mounting on tank bottom
• Compatible with most tank shapes and sizes
• Multiple output options for telemetry systems
• CNEX certified for hazardous areas
• Integrated temperature sensor
• Cost-effective, reliable, and accurate
• Unaffected by pressure variations
• Simple installation with no tank penetration
• No operational downtime during installation
• Maintenance-free with no moving parts

About Xi'an Kacise

Xi'an Kacise holds ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certifications, ensuring compliance with international standards.

With 10 years of specialization in pressure, level and flow measurement instruments, our experienced team has established us as a professional manufacturer and solution provider committed to continuous quality improvement.

Kacise sensors are exported to America, Spain, Australia, Chile and 20 other countries, receiving consistently positive feedback. We operate on the principles of competitive pricing, efficient production, and excellent after-sales service, seeking mutually beneficial partnerships with customers worldwide.

Our Services

• 24-hour response to inquiries
• OEM/ODM services with custom design capabilities
• Distributorship opportunities for unique products
• Protection of marketing areas, designs, and confidential information
• Volume-based discounts
