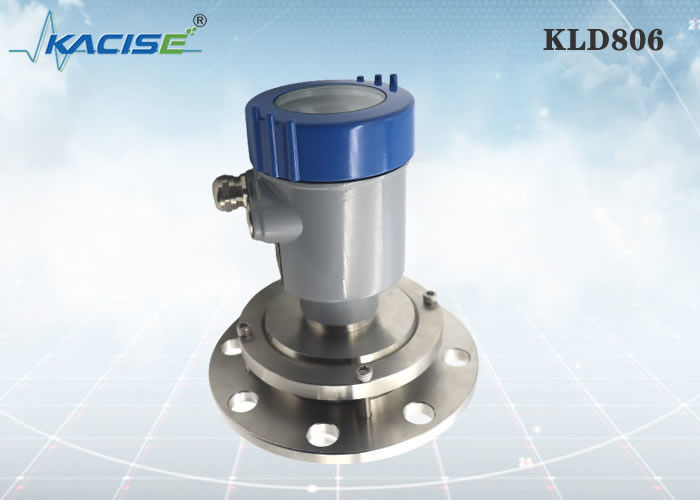

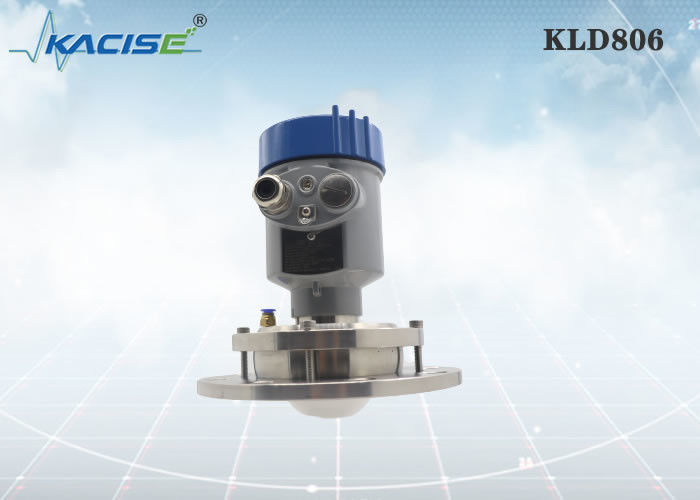

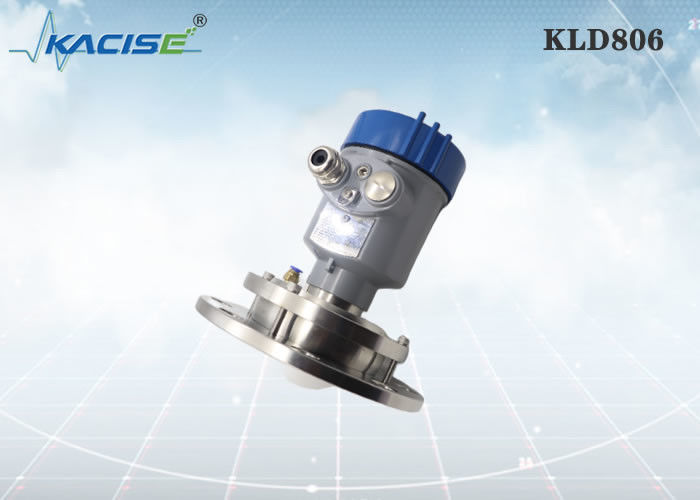

KLD806 80G FM Radar Level Sensor with 80GHz Frequency Flange Mounting and PTFE Antenna for Cement Silos

76-81GHz FM continuous wave radar products support four-wire and two-wire applications. Multiple models, the maximum range of the product can reach 100 meters. Because of its higher working frequency and shorter wavelength, it is particularly suitable for solid applications. The working mode of transmitting and receiving electromagnetic waves through the lens has unique advantages in high dust and harsh temperature environment. The instrument shall be fixed by flange or thread to make installation convenient and easy.

• Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
• The smaller antenna size satisfies the measurement of more working conditions.
• A variety of lens antennas, smaller launch angles, more concentrated energy, stronger echo signals, and higher reliability than other radar products under the same industrial and mining conditions.
• It has stronger penetration and can be used normally in the case of adhesion and condensation.
• The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
• Multiple measurement modes, radar response in fast measurement mode

KLD806

Medium: solid, storage container, process container, strong dust application Measuring range: 0.3m~10/20/30/60/100m Process connection: flange ≥ DN100 Process temperature: -40～110℃ Process pressure: -0.1～0.3MPa Antenna size: 76mm lens antenna (purge optional) Antenna material: PTFE Accuracy: ±5mm Protection class: IP67 Center frequency: 80GHz Launch angle: 3° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum/plastic/stainless steel Signal output: two-wire /4...20mA/HART protocol four-wire 4...20mA/ RS485 Modbus

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

① datum plane

② vessel center or axis of symmetry

When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.

Too long installation connection will affect the radar performance.

Unit in mm:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
