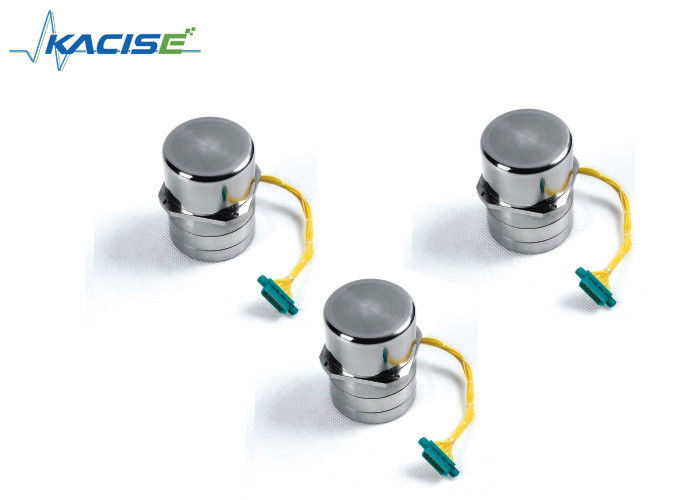

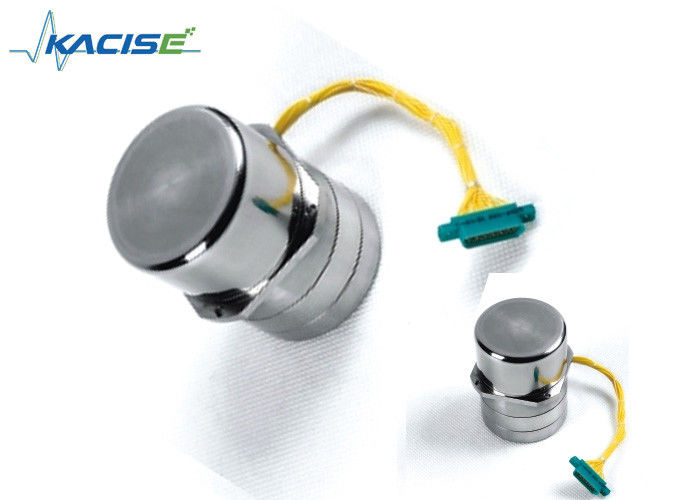

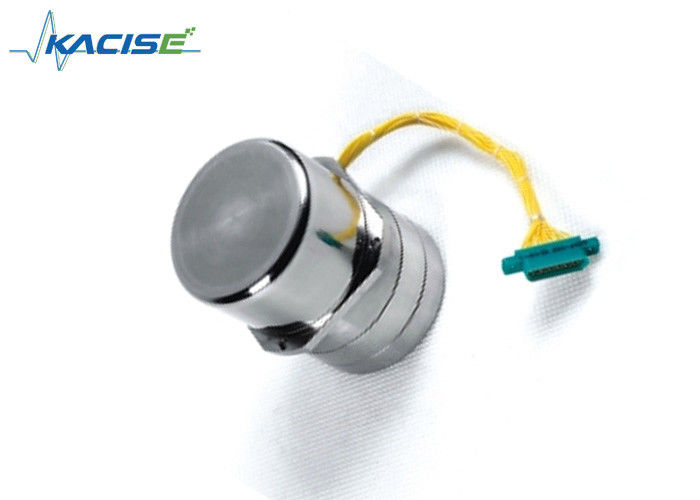

Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field

Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field

  • Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field
  • Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field
  • Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field
  • Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field
Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: KTG-M5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Random Drift: ≤0.2°/h Power(1 Phase): 5&16000V & Hz
Drift Stability: ≤0.25°/h Non-linear: ≤0.5%F
Max Tracking Rate: ≥60°/S Band Width: ≥70HZ
High Light:

mems gyroscope sensor

,

gyroscope sensor module

KTG-50 High Accuracy Dynamic Tuned Gyroscope for land strap-down system

Feature


  • Light weight

  •  Small size

  •  Quick starting

  • Used in high temperature environment


Introduction

In the drilling field, inertial devices is greater and more adaptable than flying field, because of its poor working conditions, environmental temperatures are high, the temperature of adaptation and life requirements are very demanding, KTG-M5 dynamically tuned gyro is designed for the case of the drilling field.

Parameter


Parameter Spec. Value Unit
Power Power(3 Phase) 12&400 V & Hz
Power(1 Phase) 5&16000 V & Hz
performance Random Drift ≤0.2 °/h
Drift stability ≤0.25 °/h
Non-linear ≤0.5 %FS
Max tracking Rate ≥60 °/S
Non-G-Sensitive Drift ≤15 °/h/g
G-Sensitive Drift ≤8 °/h/g
Band Width ≥60 Hz
Torquer Scale Factor ≥670 °/h/mA
technological Sync rate 8000 r/min
Sync Time ≤30 S
Output gradient 21±2 mV/`
Primary torquer 50±3 Ω
secondary torque 2±0.5 Ω
Physical Weight <130 g
Dimensions φ29×53 mm
Flange M5×29 mm
Working environment Temperature -15~100
Vibration 5 g
Shock ≥50 g



Installation


Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.

Operation


  • Only products matching the appropriate power and locked loop circuit board in order to work properly, need circuit board, please explain in advance.
  • When the product under normal use, you should turn on the power to start the motor, about 40s, and then the on-lock loop, so that the products in closed loop state; shutdown, disconnect locked loop so that the product is in the open-loop operation, and then disconnect power supply.
  • Product energized, shut down in 40s, should avoid shaking the product, the installation process should be light, light up, the product non-collision, percussion.
  • Product in the use of the process is strictly prohibited to pull the plug.
  • Product in the use of the process, can`t short circuit between external power supply.
  • Abnormality occurs during use, should immediately turn off the power, fault isolation, if the product internal fault, the customer shall promptly notify my company, my company organized by the repair.



Dimension

 Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field 0Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field 1J30J-15T


Connector definition


 The socket type:J30J-15T (cable length160~175mm)


Pin No. Function definition Remark
1 Signal output of X-axis
2 GND For Excitation power and signals
3 X-axis torque coil(the end)
4 A phase motor driver power There-phase 12V, 400Hz
5 Sensor excitation power supply Singal-phase5V, 16KHz
6 Signal output of Y-axis
7 Y-axis torque coil(the beginning)
8 B phase motor driver power There-phase 12V, 400Hz
9 DC+15V Power for Preamplifier
10 DC-15V Power for Preamplifier
11 X-axis torque coil(the beginning)
12 NULL
13 NULL
14 C phase motor driver power There-phase 12V, 400Hz
15 Y-axis torque coil(The end)

NOTE: The same applies to J30J-21T, if use other socket, please explain in advance.


workshop​


Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field 2


Application

Lightweight Electronic Gyroscope Sensor For Borehole Drilling Field 3
