GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Low Random Walk Fiber Optic Gyroscope

Bias Stability Electronic Gyroscope Sensor

Bias Magnetic Sensitivity Inertial Angular Rate Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

CE

Contact Us
Request A Quote
GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs
Product Details
Run-up Time:
3s
Random Walk:
<0.1°/√h
Bias Magnetic Sensitivity:
<0.5°/h/Gs
Bias Repeatability:
<1°/h
Bias Temperature Sensitivity (1°C/min):
<2°/h
Bias Stability (25°C):
<2°/h
Bias:
<1°/h
Highlight:

Low Random Walk Fiber Optic Gyroscope

,

Bias Stability Electronic Gyroscope Sensor

,

Bias Magnetic Sensitivity Inertial Angular Rate Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h online

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price
Good price GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation online

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price
Good price GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h online

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price
Good price GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs online

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

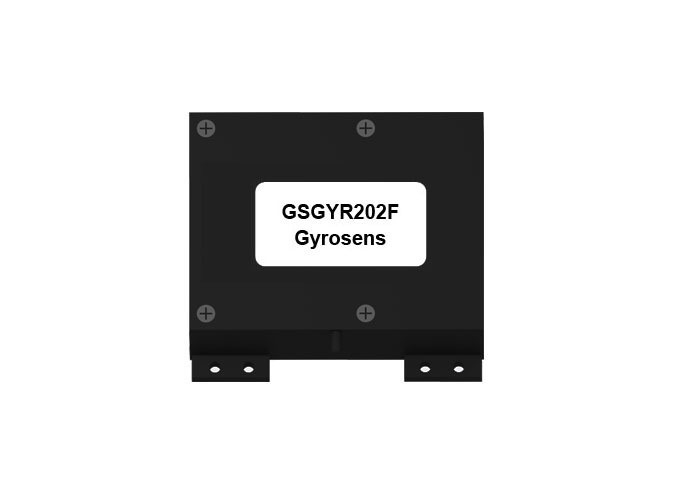

GSGYR202F Fiber Optic Gyroscope
Product Introduction
The GSGYR202F is an inertial angular rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along its sensitive axis. It features a digital closed-loop detection circuit that extracts optical path differences between clockwise and counterclockwise light propagation, enabling real-time angular velocity detection through modulation, demodulation, and closed-loop feedback control.
Key Features
  • Consists of optical angular velocity sensing unit and signal detection unit
  • Provides dual-axis angular increment information and internal temperature data
  • Digital closed-loop detection for precise measurements
  • Real-time angular velocity signal detection
Main Components
  • Optical path unit: SLD light source, optical fiber coil, integrated optical phase modulator, optical fiber coupler, and photodetector
  • Circuit unit: Light source driving circuit, signal detection and control circuit
  • Structural components: Gyroscope housing and mounting elements
GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs 0
Technical Specifications
Parameter GSGYR202F
Number of Axles 2
Power Voltage +5V DC
Power (25°C) <3W
Power (-45°C～+70°C) <4W
Supply Current >1.5A
Output RS422
Size 70×65×25mm
Run-up Time 3s
Bias <1°/h
Bias Stability (25°C) <2°/h
Bias Temperature Sensitivity (1°C/min) <2°/h
Bias Repeatability <1°/h
Bias Magnetic Sensitivity <0.5°/h/Gs
Random Walk <0.1°/√h
Scale Factor Nonlinearity <50ppm
Scale Factor Asymmetry <10ppm
Scale Factor Repeatability <20ppm
Threshold <0.8°/h
Resolution <0.8°/h
Bandwidth ≥500Hz
Weight 170g±10g
Dynamic Range ±500°/s
Start-up Current <1.5A
Operating Temperature -45°C～+70°C
Storage Temperature -55°C～+80°C
Supply Voltage Accuracy <±5%
Power Ripple <50mV
Dimensions
GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs 1
