GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

2 Axles Fiber Optic Gyroscope

Compact Size Electronic Gyroscope Sensor

Low Power Inertial Angular Rate Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

CE

Model Number:

GSGYR201F

Contact Us
Request A Quote
GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation
Product Details
Number Of Axles:
2
Size:
64×60×40mm
Output:
RS422
Supply Current:
>1.5A
Power (-45°C～+70°C):
<4W
Power (25°C):
<3W
Power Voltage:
+5V DC
Highlight:

2 Axles Fiber Optic Gyroscope

,

Compact Size Electronic Gyroscope Sensor

,

Low Power Inertial Angular Rate Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h online

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price
Good price GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation online

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price
Good price GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h online

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price
Good price GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs online

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description
GSGYR201F Fiber Optic Gyroscope
Product Introduction
The GSGYR201F is an inertial angular rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along its sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences caused by external angular velocity, converting these signals into precise measurements through advanced modulation and demodulation techniques.
Key Features
  • Consists of optical angular velocity sensing unit and signal detection unit
  • Provides dual-axis angular increment information and internal temperature data
  • Digital closed-loop detection for precise measurements
  • Real-time angular velocity signal detection
Main Components
  1. Optical path unit: Includes SLD light source, optical fiber coil, integrated optical phase modulator, optical fiber coupler, and photodetector
  2. Circuit unit: Light source driving circuit, signal detection and control circuit
  3. Gyroscope structural components

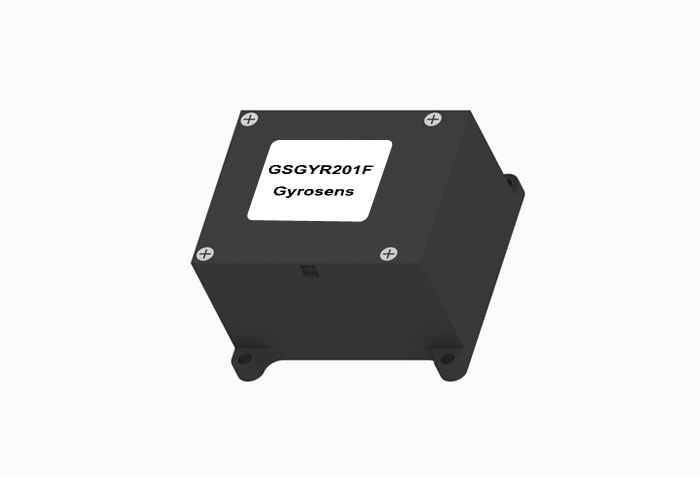

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation 0
Technical Specifications
Parameter GSGYR201F GSGYR201F-H
Number of Axles 2 2
Power Voltage +5V DC +5V DC
Power (25°C) <3W <3W
Power (-45°C～+70°C) <4W <4W
Supply Current >1.5A >1.5A
Output RS422 RS422
Size 64×60×40mm 64×60×40mm
Run-up Time 3s 3s
Bias <1°/h <1°/h
Bias Stability (25°C) <1°/h <0.3°/h
Bias Temperature Sensitivity (1°C/min) <1°/h <1°/h
Bias Repeatability <1°/h <0.3°/h
Bias Magnetic Sensitivity <0.5°/h/Gs <0.2°/h/Gs
Random Walk <0.1°/√h <0.02°/√h
Scale Factor Nonlinearity <50ppm <50ppm
Scale Factor Asymmetry <10ppm <10ppm
Scale Factor Repeatability <20ppm <20ppm
Threshold <0.3°/h <0.1°/h
Resolution <0.3°/h <0.1°/h
Bandwidth ≥500Hz ≥500Hz
Weight 170g±10g 200g±10g
Dynamic Range ±500°/s ±500°/s
Start-up Current <1.5A <1.5A
Operating Temperature -45°C～+70°C -45°C～+70°C
Storage Temperature -55°C～+80°C -55°C～+80°C
Supply Voltage Accuracy <±5% <±5%
Power Ripple <50mV <50mV
Dimensions
GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation 1
