Name: GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR324F
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Single 5V Power Supply Fiber Optic Gyroscope

Bias Stability <0.5°/h Electronic Gyroscope Sensor

Scale Factor Asymmetry <100 Three-Axis Gyroscope

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR324F

Request A Quote

Product Details

Bias Stability 25°C:

<0.5°/h

Scale Factor Asymmetry:

<100

Scale Factor Nonlinearity:

<100

Random Walk:

<0.05°/√h

Bias Repeatability:

<0.5°/h

Highlight:

Single 5V Power Supply Fiber Optic Gyroscope

Bias Stability <0.5°/h Electronic Gyroscope Sensor

Scale Factor Asymmetry <100 Three-Axis Gyroscope

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

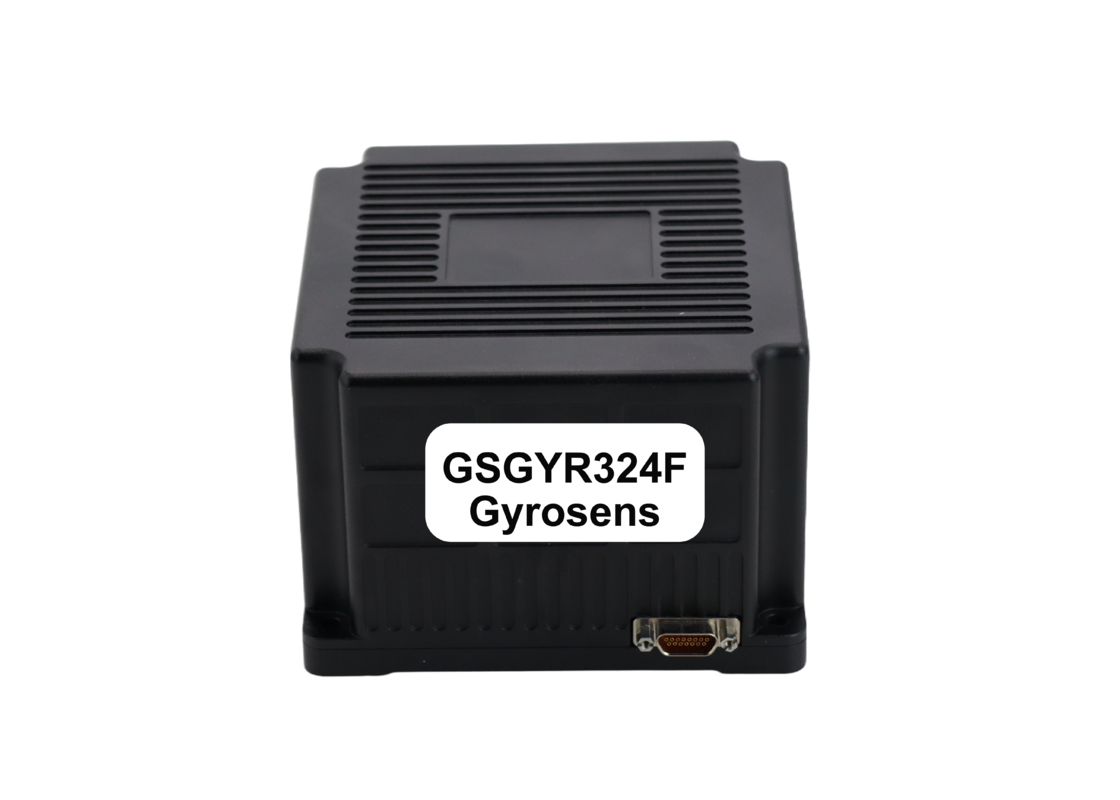

GSGYR324F Fiber Optic Gyroscope

Product Introduction

The GSGYR324F is an all-solid-state digital closed-loop three-axis integrated fiber optic gyroscope. Based on the Sagnac principle, it consists of an SLD light source, fiber optic coupler, photodetector, integrated optical phase modulator, fiber optic sensing coil, circuit, and structural body. Available in both integrated and split configurations, this three-axis fiber optic gyroscope is specifically designed for miniaturized inertial measurement systems and navigation-grade inertial measurement systems, offering high reliability, precision, and structural flexibility.

Key Features

Single 5V power supply
Excellent full-temperature performance
Immediate start-up: reaches nominal specifications immediately after power-on with no preheating required
Superior environmental adaptability: resistant to strong impact and vibration
Interference and fringe recognition technology: supports full dynamic range cold start
High reliability and precision with simple structure and wide dynamic range

Applications

Aircraft navigation and control
Miniaturized missile-borne inertial navigation systems
Attitude and heading detection
Attitude and heading reference systems
Strapdown inertial navigation systems

Technical Specifications

Specification Parameter	GSGYR324F-L	GSGYR324F	GSGYR324F-H	GSGYR324F-HH
Number of Axles	3
Power Voltage	+24V DC
Power 25°C	<18W
Output	RS422
Size	112×112×77.5mm
Run-up time	1s
Bias stability 25°C	<0.5°/h	<0.3°/h	<0.1°/h	<0.05°/h
Bias repeatability	<0.5°/h	<0.3°/h	<0.1°/h	<0.05°/h
Random walk	<0.05°/√h	<0.03°/√h	<0.01°/√h	<0.005°/√h
Scale factor nonlinearity	<100	<70	<60	<50
Scale factor asymmetry	<100	<70	<60	<50
Scale factor repeatability	<100	<70	<60	<50
Bandwidth	≥200Hz
Weight	<1200g
Dynamic range	±1000°/s
Operating temperature	-40°C～+70°C
Storage temperature	-55°C～+80°C
