GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Run-up Time 3s Fiber Optic Gyroscope

Bias Repeatability <0.5°/h Electronic Gyroscope Sensor

Bias Temperature Sensitivity <1°/h Inertial Angular Rate Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

CE

Model Number:

GSGYR203F

Contact Us
Request A Quote
GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h
Product Details
Run-up Time:
3s
Bias Repeatability:
<0.5°/h
Bias Temperature Sensitivity (1°C/min):
<1°/h
Bias Stability (25°C):
<0.5°/h
Bias:
<0.5°/h
Highlight:

Run-up Time 3s Fiber Optic Gyroscope

,

Bias Repeatability <0.5°/h Electronic Gyroscope Sensor

,

Bias Temperature Sensitivity <1°/h Inertial Angular Rate Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h online

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price
Good price GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation online

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price
Good price GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h online

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price
Good price GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs online

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

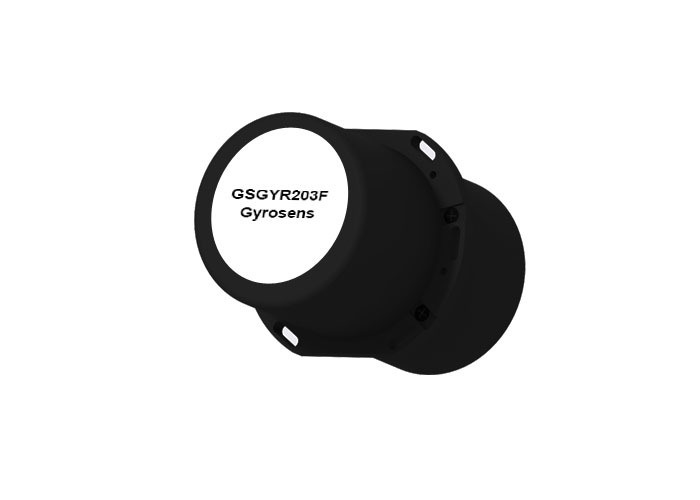

GSGYR203F Fiber Optic Gyroscope
Product Introduction
The GSGYR203F is an inertial angular rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along its sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences between clockwise and counterclockwise light propagation in the fiber optic loop, which are induced by external angular velocity. The system converts these signals through modulation, demodulation, and closed-loop feedback for real-time angular velocity detection.
Key Features
  • Comprises optical angular velocity sensing and signal detection units
  • Provides dual-axis angular increment data and internal temperature information
  • Three main components: optical path unit, circuit unit, and structural components
GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h 0
Technical Specifications
Parameter GSGYR203F
Number of Axles 2
Power Voltage +5V DC
Power (25°C) <3W
Power (-45°C～+70°C) <4W
Supply Current >1.5A
Output RS422
Size Φ65×90mm
Run-up Time 3s
Bias <0.5°/h
Bias Stability (25°C) <0.5°/h
Bias Temperature Sensitivity (1°C/min) <1°/h
Bias Repeatability <0.5°/h
Bias Magnetic Sensitivity <0.3°/h/Gs
Random Walk <0.05°/√h
Scale Factor Nonlinearity <50ppm
Scale Factor Asymmetry <10ppm
Scale Factor Repeatability <20ppm
Threshold <0.2°/h
Resolution <0.2°/h
Bandwidth ≥500Hz
Weight 270g±20g
Dynamic Range ±500°/s
Start-up Current <1.5A
Operating Temperature -45°C～+70°C
Storage Temperature -55°C～+80°C
Supply Voltage Accuracy <±5%
Power Ripple <50mV
Dimensions
GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h 1
