Name: GSGYR114F Single-Axis Fiber Optic Gyroscope with Single 5V Power Supply RS422 Output and Compact 98×98×35mm Size
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR114F
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

GSGYR114F Single-Axis Fiber Optic Gyroscope with Single 5V Power Supply RS422 Output and Compact 98×98×35mm Size

Single 5V Power Supply Fiber Optic Gyroscope

RS422 Output Single-Axis Gyroscope

Compact 98×98×35mm Size Angular Rate Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR114F

Request A Quote

Product Details

Power Voltage:

+5V DC

Run-up Time:

Size:

98×98×35mm

Output:

RS422

Power (25°C):

<6W

Highlight:

Single 5V Power Supply Fiber Optic Gyroscope

RS422 Output Single-Axis Gyroscope

Compact 98×98×35mm Size Angular Rate Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

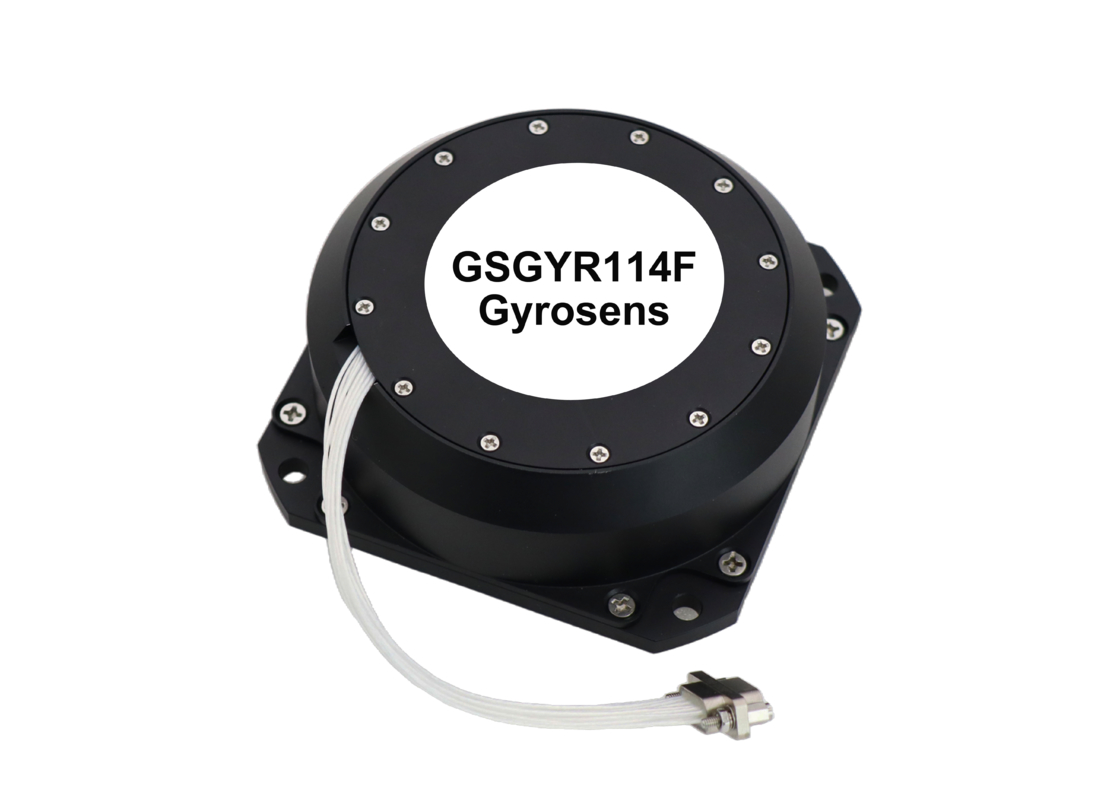

GSGYR114F Single-Axis Fiber Optic Gyroscope

Product Introduction

The GSGYR114F single-axis fiber optic gyroscope series operates on an all-digital closed-loop mode, featuring compact size, light weight, low power consumption, rapid startup, and user-friendly interface. This high-precision angular rate sensor is ideal for navigation and control applications across diverse industries.

Key Features

Single 5V power supply
Excellent full-temperature performance
Immediate operation at nominal index after power-on (no preheating required)
Superior environmental adaptability with resistance to strong impact and vibration
Interference fringe recognition technology supporting full-dynamic-range cold startup
High reliability, precision, simple structure, and wide dynamic range

Applications

High-precision stable platforms
Positioning and orientation systems
North seekers
Attitude and heading reference systems
Fiber optic compasses
Strapdown inertial navigation systems

Technical Specifications

Parameter	GSGYR114F-L	GSGYR114F	GSGYR114F-H	GSGYR114F-HH
Power Voltage	+5V DC
Power (25°C)	<6W
Output	RS422
Size	989835mm
Run-up Time	1s
Bias Stability (25°C)	<0.05°/h <0.015°/h(100s)	<0.02°/h <0.009°/h(100s)	<0.15°/h <0.007°/h(100s)	<0.01°/h <0.004°/h(100s)
Bias Repeatability	<0.05°/h	<0.02°/h	<0.015°/h	<0.01°/h
Random Walk	<0.005°/√h	<0.002°/√h	<0.0015°/√h	<0.001°/√h
Scale Factor Nonlinearity	<50	<40	<30	<10
Scale Factor Asymmetry	<50	<40	<30	<10
Scale Factor Repeatability	<50	<40	<30	<10
Bandwidth	≥200Hz
Weight	<470g
Dynamic Range	±1000°/s
Operating Temperature	-40°C～+70°C
Storage Temperature	-55°C～+80°C
