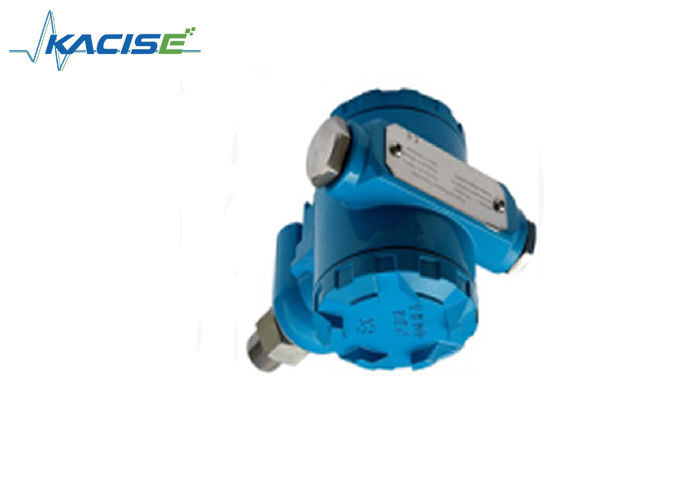

Metallurgical and Chemical Industry Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation

Metallurgical and Chemical Industry Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation

  • Metallurgical and Chemical Industry Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation
  • Metallurgical and Chemical Industry Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation
Metallurgical and Chemical Industry Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: GX-iPS600-8B
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 pieces per week
Contact Now
Detailed Product Description
Accuracy: ±0.5% Of F.S Pressure Range: 0~0.2MPa......60MPa; 2bar…600bar 29psi…8700psi; 20000MmH20…6118000mmH2O 1.97atm…592stm
Display Panel: No Display Over Pressure Safe: 1.5 Times Span Of Nominal Value
Media: Compatible With Stainless Steel 1Cr18Ni9Ti Power Supply: 3.6V/1bettery(1 Pcs)
High Light:

wireless pressure transducer

,

wireless pressure sensor

GX-iPS608-8B  Metallurgical and Chemical Industry  Self-organizing Mesh network Battery Power Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation



Application



  • Special for pipeline pressure monitoring
  • in wild field or non power distribution
  • Used in metallurgical industry and chemical industry



Feature



  • Accuracy ±0.5%F.S
  • Diffused semiconductor core body
  • Zig bee wireless communication
  • Self-organizing Mesh network
  • Use 1# Battery supply Power
  • Led display



Introduction



GX-iPS600-8A/8B series of low-power wireless pressure transmitter is a battery-powered LCD display, real-time data precision smart pressure measurement instruments; embedded Zigbee wireless communication module using the Zigbee protocol standard 2.4GHzRF transceiver, CSMA / CA anti-collision mechanism effectively avoid channel blocking send data at the same time and data loss.

It uses the 1# battery dry cell to supply the power, low-power design, the service life can up to six months or more.



Electronic interface and signals definition



Metallurgical and Chemical Industry Low Consumption Wireless Pressure Transmitter for Wild or No Power Situation 0



Parameter



Spec. Value
Type GXiPS600-8A GXiPS600-8B
Pressure range

0~0.2MPa......60MPa; 2bar…600bar

29psi…8700psi; 20000MmH20…6118000mmH2O

1.97atm…592stm

Over pressure safe 1.5 times span of nominal value
Secondary Containment 3 times span of nominal value
Accuracy ±0.5% of F.S
Long term stability 0.25%F.S/Year
Operate temperature -10°C~60°C
Compensated temperature range -10°C~60°C
Media compatible with Stainless Steel 1Cr18Ni9Ti
Data transmission channel Wireless ZIGBEE
Power supply 3.6V/1bettery(1 pcs)
Minimum isolation between case and terminations 100M Ω@50V
Surge immunity 500V@60 second
Shock and vibration 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Display panel No display 0.001~999999
Pressure Port: M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type Gauge, compound Gauge React time: 10ms
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
