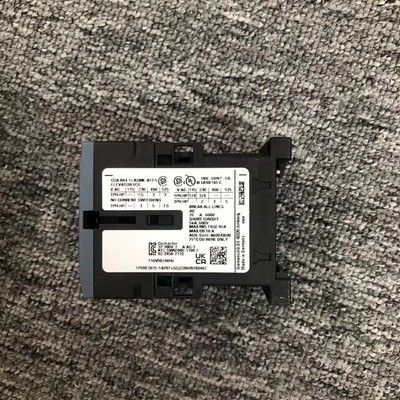

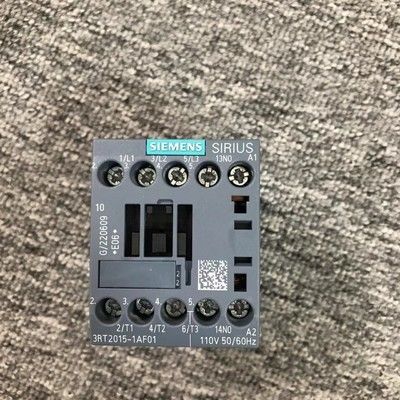

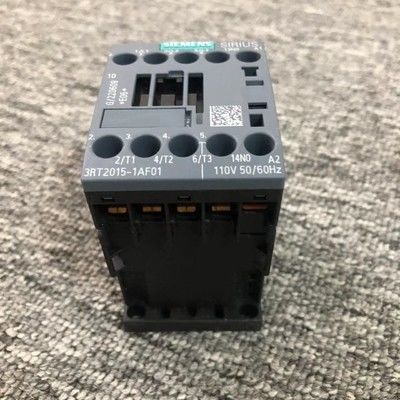

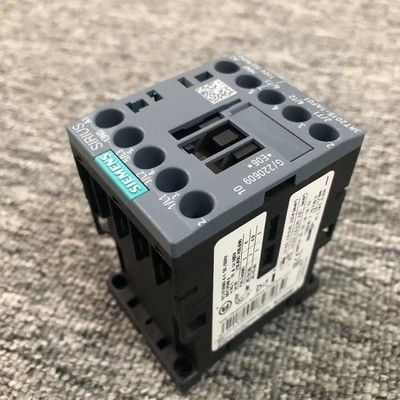

Siemens 3RT2015-1AF01 3-Pole Power Contactor

The Siemens 3RT2015-1AF01 is a 3-pole power contactor designed for reliable switching in industrial electrical systems. Part of the SIRIUS 3RT series, this contactor offers a rated current of 7 A and supports 3 kW loads at 400 V, suitable for AC-3/AC-3e applications. It features 1 normally open (NO) auxiliary contact, operates on 110 V AC (50/60 Hz), and utilizes screw terminals for secure wiring. Engineered with a compact S00 frame, it ensures efficient performance in motor control and power distribution setups, compliant with global safety standards.

• Electrical Specifications:
  • 3-pole design for three-phase power systems
  • Rated current: 7 A; power rating: 3 kW at 400 V (AC-3/AC-3e duty)
  • Coil voltage: 110 V AC (50/60 Hz) for broad compatibility
• Contact Configuration:
  • 1 NO auxiliary contact for control circuit signaling
  • Screw terminal connections for reliable wiring in industrial environments
• Compact & Robust Design:
  • S00 frame size for space-saving installation in control panels
  • Net weight: 0.233 kg; compact packaging dimensions (50 x 61.5 x 77.5 mm)
• Application Suitability:
  • Ideal for motor starting, stopping, and reversing in manufacturing and automation systems
  • Compliant with AC-3e duty for enhanced performance in heavy-duty applications
• Certifications & Compliance:
  • CCC certified for safety and quality in industrial use
• Reliability & Longevity:
  • Part of Siemens' SIRIUS series, known for durability and consistent operation
  • Active product lifecycle (PM300) ensures availability and support
