| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KUS1000-M18 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton with bubble |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Output: | 4-20mA / 0-10V | Power Supply: | 10 ... 30 V DC |
|---|---|---|---|
| Range: | 1000mm | Blind Zone: | 70mm |
| Protection Grade: | IP65 (IP67 Selectable) | Material: | Plastic Or Metal |
| High Light: | ultrasonic fluid level sensor,ultrasonic level transmitter |
||

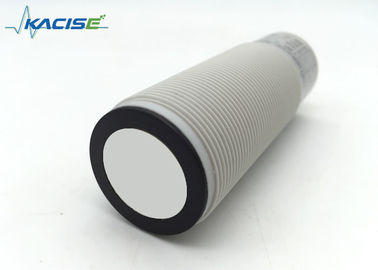

4-20mA 0-10V Small Diameter And Blind Zone M18 Ultrasonic Sensor Range 1000mm
Introduction
Ultrasonic sensor measure is a reliability and outstanding versatility measurement method. It can realize to solve the most complex projects including object detection or level measure, because its measuring way works reliably under almost all conditions.
Features
Non-contact
Teachable
Measuring window adjustable
Small unusable area
Appliactions
Level measuring
Mechanical engineering
Food industry
Woodworking and furniture
Agriculture
Construction
Paper making
Material handling
Dimensions
Parameters
General specifications
| Sensing range | 70 ... 1000 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx.380 kHz |
| Response delay | approx.50 ms |
Indicators/operating means
| LED blue | Power on |
| LED yellow | solid: object in the evaluation range |
| flashing: program function, object detected | |
| LED red | solid: Error |
| flashing: program function, no object detected |
Electrical specifications
| Operating voltage UB | 10 ... 30 V DC , ripple 10 %SS |
| No-load supply current I0 | ≤ 45 mA |
Output
| Output type | 1 analog output 0-10V or 4…20mA. |
| Resolution | 0.11 mm at max. sensing range |
| Deviation of the characteristic curve | ± 1 % of full-scale value |
| Repeat accuracy | ± 0.1 % of full-scale value |
| Load impedance | > 1kOhm |
| Temperature influence | ± 1.5 % of full-scale value |
Ambient conditions
| Ambient temperature | -25 ... 70 °C |
| Storage temperature | -40 ... 85 °C |
Mechanical specifications
| Connection type | Device connector M12 x 1 , 4-pin |
| Protection grade | IP65 (IP67 selectable) |
| Material | Housing: Plastic or metal, selectable |
LED Displays
| Displays in dependence on operating mode | Red LED | Yellow LED |
|
TEACH-IN evaluation limit Object detected No object detected Object uncertain (TEACH-IN invalid) |
off flashes on |
flashes off off |
| Normal mode (evaluation range) | off | on |
| Fault | on | previous state |
Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
