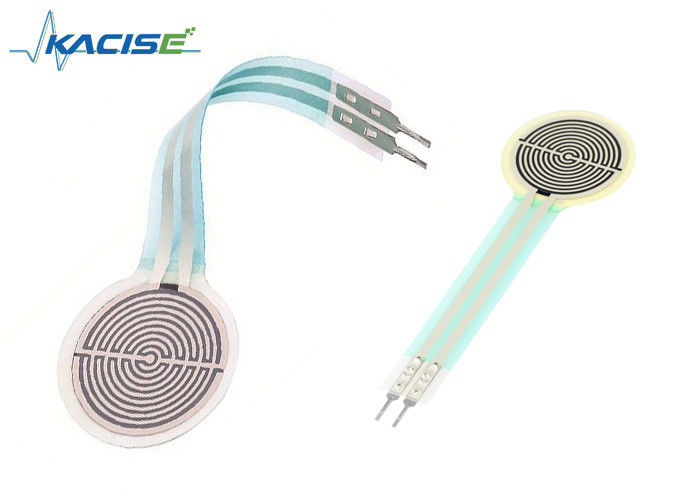

KXFSR402 Fluid Level Meter Thin Film Pressure Sensitive Resistor Force Sensor

KXFSR402 Fluid Level Meter Thin Film Pressure Sensitive Resistor Force Sensor

  • KXFSR402 Fluid Level Meter Thin Film Pressure Sensitive Resistor Force Sensor
KXFSR402 Fluid Level Meter Thin Film Pressure Sensitive Resistor Force Sensor
Product Details:
Place of Origin: china
Brand Name: kacise
Certification: ce
Model Number: kxfsr406
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Thickness: 0.42mm Sensitivity Range: 10g To 10Kg
Operating Temperature: -40℃~+85℃ Life Time: >1 Million
Drift: <10%, 2.5kg Load, 24H Shape: Flexible
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

KXFSR402 Thin Film Pressure Sensitive Resistor Force Sensor



Description



Force Sensitive Resistor are resistive sensor exhibiting vary resistance that responds to force applied to the sensing area. As force on the sensor is increased,resistance is decreased.

For the single-zone sensors, as the sensor is a Two-terminal device that can essentially be treated as a variable resistor whose value is controlled by applied force, and also a switch whose threshold is controlled by applied force and setting up.

The sensors are made up of robust polyester film, high-conductive material and Nano-sized force sensing material.

The top layer of the sensor consists of the area of force sensitive layer on a flexible film. And bottom layer is comprised of conductive circuit traces on a flexible film

And the above two layers are s are stick together by spacer adhesive and active area is without adhesive. When the active area is applied force, force sensitive layer on the top layer shunts the circuit traces on the bottom, varying resistance output terminals.



Static / Dynamic Pressure Sensing



Quick response

Durable long life

Customized design



Technical Data And Physical Properties





Thickness 0.42mm
Shape Flexible
Actuation force 10g Res.<=200KΩ
Sensitivity range 10g to 10Kg
Resolution continuous

Non-actuated

resistance

>10M Ω
Response time <10us

Operating

temperature

-40℃~+85℃
Life time >1 million

Repeatability Same

part

+/-5%,

Average R@1000g

Repeatability part to

part

+/-10%

Average R@1000g

Hysteresis

+10%,@1000g,

(RF+ - RF-)/FR+

EMI Generates no EMI
EDS not ESD sensitive
Drift <10%, 2.5kg load, 24H
RoHS RoHS
