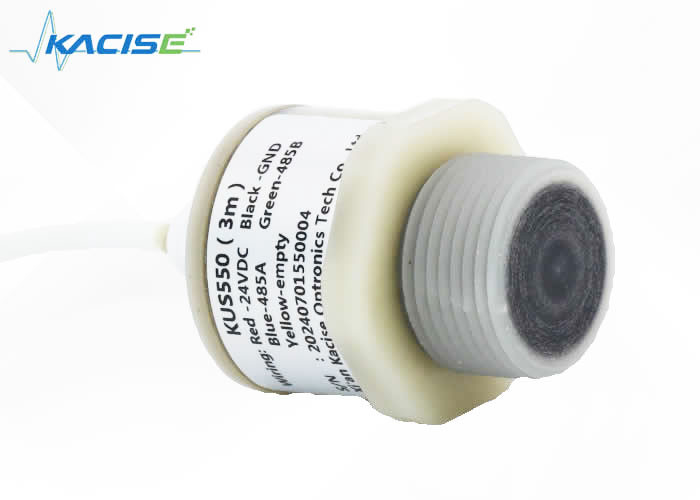

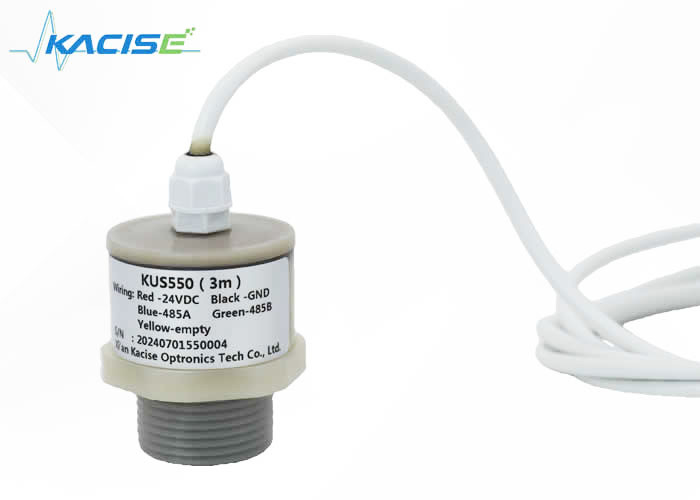

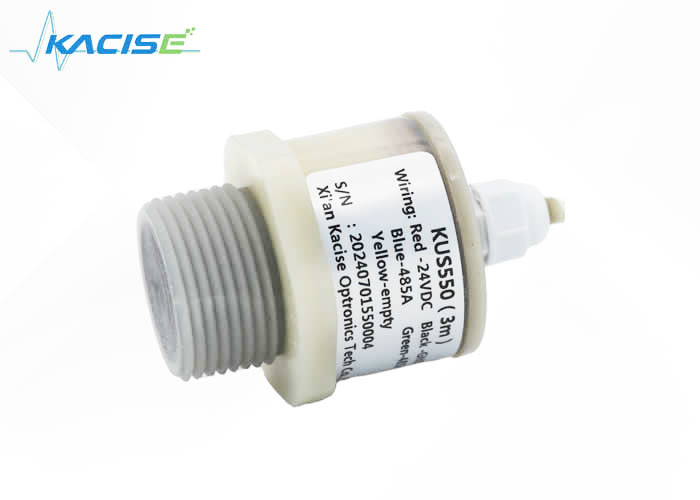

Digital RS485 Fluid Level Meter / Ultrasonic Water Level Sensor 70KHZ

Digital RS485 Fluid Level Meter / Ultrasonic Water Level Sensor 70KHZ

    • Digital RS485 Fluid Level Meter / Ultrasonic Water Level Sensor 70KHZ
    • Digital RS485 Fluid Level Meter / Ultrasonic Water Level Sensor 70KHZ
  • Digital RS485 Fluid Level Meter / Ultrasonic Water Level Sensor 70KHZ

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Certification: certificate of explosion-proof, CE
    Model Number: KUS550

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 1000 Pieces per Week
    Contact Now
    Detailed Product Description
    Detection Range: 200mm~3000mm Power Supply: 14.5~27VDC
    Transducer Frequency: 70KHZ IP Grade: Inside/outside/fix Temp.IP65
    Operating Voltage: 14.5VDC~27VDC Output: RS485 Modbus, 0-10V, Switch
    RSoftware: Modbus Or Our Software Power Consumption: ≤30mA
    High Light:

    ultrasonic level transmitter

    ,

    ultrasonic liquid level sensor

    1m 2m 3m Digital RS485 and 0/10V and 4-20mA Ultrasonic Water Level Sensor


    Introduction

    This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP65.



    Features



    . Designed for outdoor or indoor environments

    . High sensitivity

    . Free run operation can continually measure and output ranger information

    . Sensor beam angle is 7 degrees.



    Applications



    . Tank level measurement

    . Bin level measurement

    . Proximity zone detection

    . People detection

    . Robot ranging sensor

    . Autonomous navigation

    . Multi-sensors navigation

    . Distance measuring

    . Long range object detection

    . Industrial automation



    Parameters



    General Parameters Mechanical Properties
    Detection Range 200mm~3000mm Connection 5 pin cable
    Transducer Frequency 125KHZ Weight 100g
    Repeatability Precision ≤1% IP grade IP65
    Response Time <50ms
    Beam Angle 7°±2
    Temp. Compensation inside/outside/fix temp.
    Electrical Parameters
    Operating Voltage 24VDC
    Limit Working Voltage 13VDC~30VDC
    Power Consumption ≤30mA
    Circuit Protection short-circuit protection, overload protection
    Output Digital Output RS485
    Analogue Output 0~5V
    Switch Output 0V / 5V
    Ambient Environment
    Operating Ambient Temp. 0~70℃ (-40~85℃, -55~125℃, etc, customizable)
    Storage Temperature -40~125℃



    Dimensions



    Digital RS485 Fluid Level Meter / Ultrasonic Water Level Sensor 70KHZ 0



    Wiring



    Digital RS485 Fluid Level Meter / Ultrasonic Water Level Sensor 70KHZ 1

    Application

    • Tank level measurement
    • Bin level measurement
    • Proximity zone detection
    • People detection
    • Robot ranging sensor
    • Autonomous navigation
    • Multi-sensors navigation
    • Distance measuring
    • Long range object detection
    • Industrial automation
