Name: Stable Water Level Pressure Sensor Diffused Silicon Oil Filled Core Pressure Level Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS400
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

Stable Water Level Pressure Sensor Diffused Silicon Oil Filled Core Pressure Level Sensor

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXPS400

Request A Quote

Stable Water Level Pressure Sensor Diffused Silicon Oil Filled Core Pressure Level Sensor

Product Details

Stability:

Typical Value: 0.1%F.S Max.: 0.2% F.S/year

Operating Temperature:

-40°C~85°C Or -40 °C ~125 °C

Pressure Interface:

G1/4,input Type

Output Signal:

4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc

Power Supply:

24VDC, 11~30Vdc, Or Customized

Graduate Certificate Programs:

Certificate Of Explosion-proof, CE

Pressure Range:

0~1...500mH2O

Overload Pressure:

1.5times Rated Pressure

Secondary Containment:

3 Times Rated Pressure

Accuracy:

±0.25%F.S, ±0.5%F.S, ±1.0%F.S

Compensation Temperature:

-10°C~70°C

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

Submersible Diffused-Silicon oil filled core Level Pressure Sensor

1. Product Description

GXPS400 series level transmitter is a special structure and use of products, high precision, small size and

good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered

according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof

certificates. Customized solutions for various fluids can be supplied.

2. Parameter

Spec.	Numerical value
Pressure range	0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg
Overload pressure	1.5times Rated pressure
Secondary containment	3 times rated pressure
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02(Ω)	〉100kΩ
Insulation	〉100MΩ@50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface	G1/4,input type
Response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
Electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection	air conduction resistance 8000V,case, cable conduction

3. Feature

Diffused-Silicon oil filled core
All kinds of structure to satisfy different users
Easy to use with submersible measuring
Multiple pressure range and signal output
Non-polar 2 wire system current output
Can be used in lightning protection products
Reinforcing rib for liquid cable available
Intrinsically safe explosion proof, Isolation explosion proof, CE
Four layers of waterproof protection

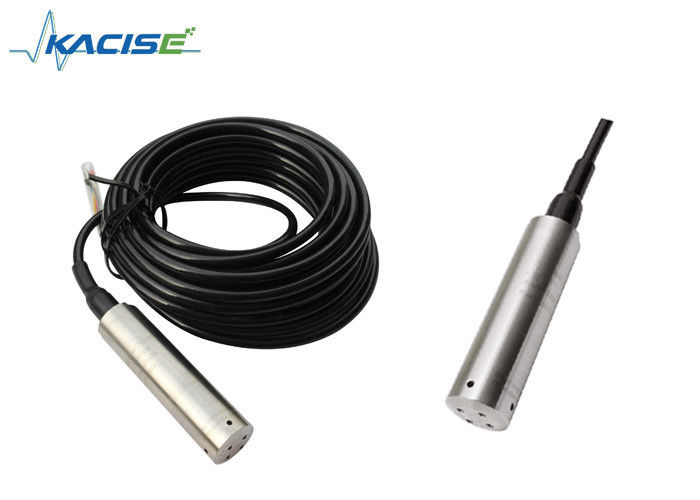

Stable Water Level Pressure Sensor Diffused Silicon Oil Filled Core Pressure Level Sensor 0

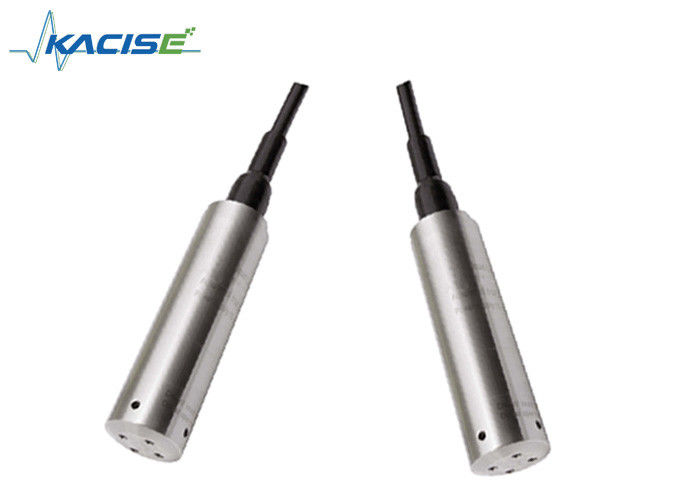

Stable Water Level Pressure Sensor Diffused Silicon Oil Filled Core Pressure Level Sensor 1

4. Application Field

Deep well level measuring
Hydrologic measurement for river, lake, sea
Sewage treatment
Cloudy level measuring
Fluid reservoir level measuring
Water-saving irrigation
Circulating liquid consumption monitoring
Diversion project
