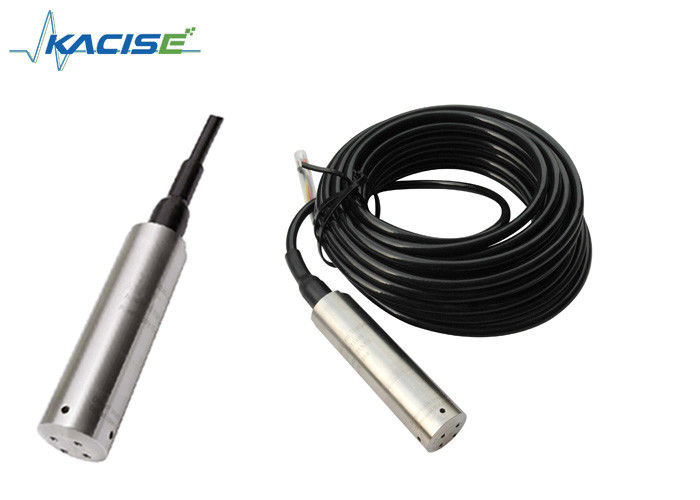

Water Surface Fluid Level Meter Submersible Level Meter High Precision

Water Surface Fluid Level Meter Submersible Level Meter High Precision

  • Water Surface Fluid Level Meter Submersible Level Meter High Precision
  • Water Surface Fluid Level Meter Submersible Level Meter High Precision
Water Surface Fluid Level Meter Submersible Level Meter High Precision
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: GXPS400
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Overload Pressure: 1.5times Rated Pressure Secondary Containment: 3 Times Rated Pressure
Pressure Interface: G1/4,input Type Power Supply: 24VDC, 11~30Vdc, Or Customized
Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S Stability: Typical Value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature: -40°C~85°C Or -40 °C ~125 °C Pressure Range: 0~1...500mH2O
Compensation Temperature: -10°C~70°C Output Signal: 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Water Surface Waterproof Submersible level meter High Precision Good Stability



1. Application Field



  1. Cloudy level measuring
  2. Fluid reservoir level measuring
  3. Water-saving irrigation
  4. Circulating liquid consumption monitoring
  5. Diversion project
  6. Deep well level measuring
  7. Hydrologic measurement for river, lake, sea
  8. Sewage treatment





2. Parameter



Spec. Numerical value
Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature -40°C~85°C or -40 °C ~125 °C
Compensation temperature -10°C~70°C
Pressure range

0~1……500mH2O

9.8KPa…4900KPa

0.09bar…49bar

0.09atm…48atm

1.4psi… 711psi

2.8inchHg…1400inchHg

Overload pressure 1.5times Rated pressure
Secondary containment 3 times rated pressure
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties 2 line 3 line
Output signal 4~20mA 0~5V 0~10V
Power supplies 10~30Vdc 80~30Vdc/ac 11~30Vdc/ac
Load resistance (U-10)/0.02(Ω)  〉100kΩ
Insulation  〉100MΩ@50V
Electrical Connections waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface G1/4,input type
Response time 10ms
Electric strength 500Vac@1 second
Graduate Certificate Programs certificate of explosion-proof, CE
Electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection air conduction resistance 8000V,case, cable conduction





3. Product Description







GXPS400 series level transmitter is a special structure and use of products, high precision, small size and

good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered

according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof

certificates. Customized solutions for various fluids can be supplied.





4. Feature



  1. Multiple pressure range and signal output
  2. Non-polar 2 wire system current output
  3. Can be used in lightning protection products
  4. Reinforcing rib for liquid cable available
  5. Intrinsically safe explosion proof, Isolation explosion proof, CE
  6. Four layers of waterproof protection
  7. Diffused-Silicon oil filled core
  8. All kinds of structure to satisfy different users
  9. Easy to use with submersible measuring

Water Surface Fluid Level Meter Submersible Level Meter High Precision 0





Water Surface Fluid Level Meter Submersible Level Meter High Precision 1
