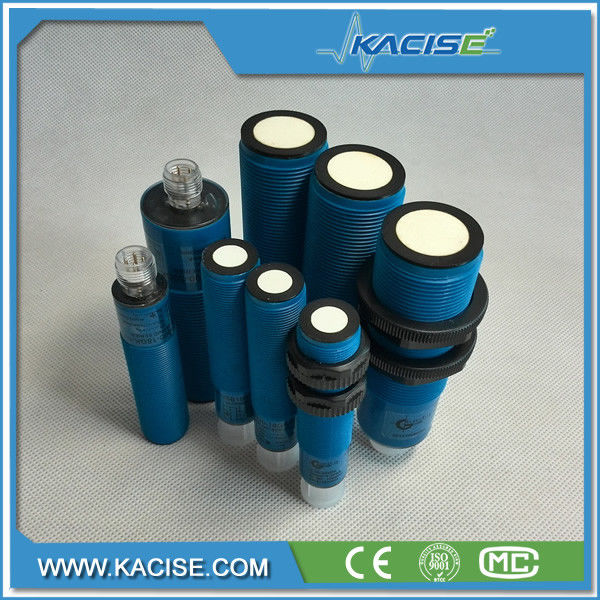

Small Non Contact Ultrasonic Water Level Sensor Liquid Tank Level Sensor

Small Non Contact Ultrasonic Water Level Sensor Liquid Tank Level Sensor

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

China

Brand Name:

KACISE

Certification:

CE / ISO

Model Number:

KUS / KUM Series

Contact Us
Request A Quote
Product Details
Power Supply:
24 V DC / 220V AC / Battery
Protection Grade:
IP65 (IP66, IP68 Selectable)
Installation:
Thread Or Flange
Output:
4-20mA / RS485 (Modbus) / Switch
Probe Material:
ABS / PTFE / Metal
Range:
Min. 0.5m, Max. 60m
Liquid Medium:
Water / Fuel / Oil / Beer / Milk / Diesel / Sewage / Vegetable Oil ...
Solid Medium:
Solid Like Wall / Car / Bean / People, Etc.
Housing Material:
Plastics / Metal
Highlight:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Payment & Shipping Terms
Minimum Order Quantity
0-100
Price
Negotiable
Packaging Details
carton with bubble
Delivery Time
3-5 work days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
1000 pieces per month
Product Description

Ultrasonic Level Sensor Ultrasonic Level Sensor Ultrasonic Fuel Liquid Tank Level Sensor





Principle



Ultrasonic level (material place,liquid level) meter,is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement.
Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time).



Features



Non-contact measurement

Short response time

With display

Various output optional: switch, analog, or RS485

Level value output or distance output



Introduction



The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors.



Parameters



Range  Min. 0.5m, Max. 60m
Resolution 3mm or 0.1%(which is bigger)
Response time < 200ms
Display Optional
Analog output 4~20mA
Switch output Relay(optional)
RS232/485 MODBUS protocol or customized protocol (optional)
Power supply 5VDC, 10~30VDC. 220VAC
Ambient temperature -20~+70℃ (-40~85℃, -55~125℃, etc, customizable)
Protection Class IP65 (IP66 is optional)

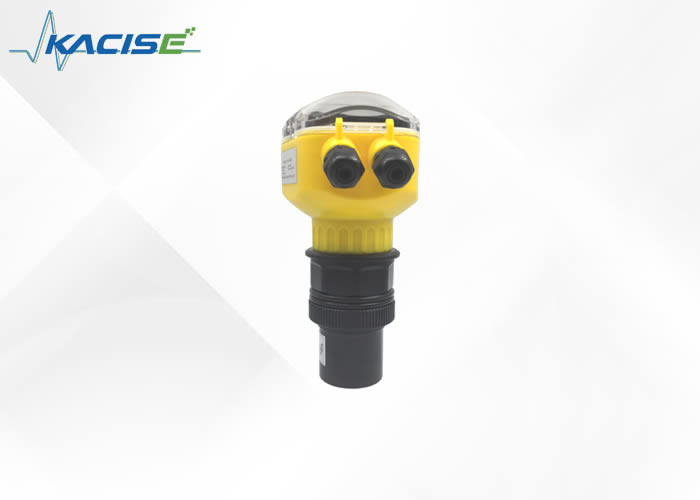

Small Non Contact Ultrasonic Water Level Sensor Liquid Tank Level Sensor 0



FAQ



1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
