3G Transimitter PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

Product Details

Detection Range:

200mm-3000mm

Response Time:

<50ms

Beam Angle:

7° ± 2

IP Grade:

IP65

Operating Voltage:

24VDC

Output:

Digital Output RS485 Anaolue Output 0-5V Switch Output 0V /5V

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

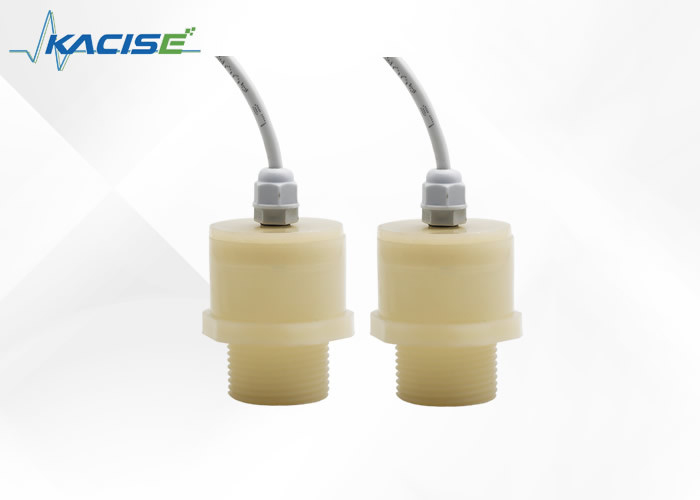

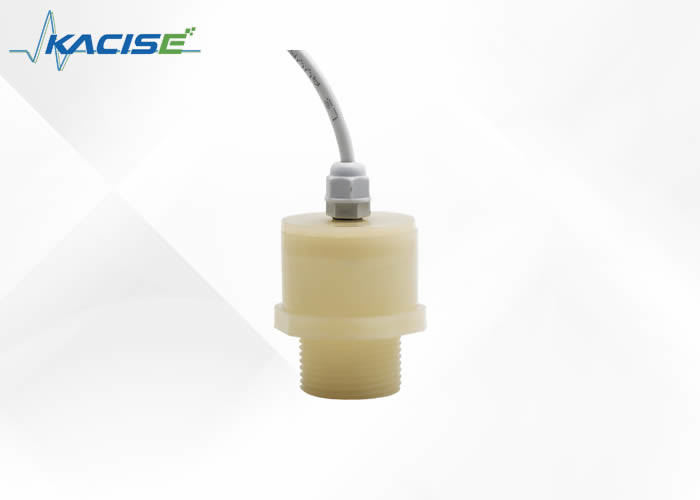

3G Transimitter PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

1.Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,designed to meet IP65.

2. Product features:

Designed for outdoor or indoor environments
High sensitivity
Free run operation can continually measure and output ranger information
Sensor beam angle is 7 degrees

3. Parameter

General Parameters		Mechanical Parameter
Detection Range	200mm-3000mm	Connection	5 Pin Cable
Transducer Frequency	125KHz	Weight	100g
Repeatability Precision	≤1%	IP Grade	IP65
Response Time	<50ms
Beam Angle	7° ± 2
Temp. Compensation	Inside/outside/fix temp.
Electrical Parameters
Operating Voltage	24VDC
Limit Working Voltage	13VDC-30VDC
Power Consumption	≤30mA
Circuit Protection	short-circuit protection, overload protection
Output	Digital Output	RS485
	Anaolue Output	0-5V
	Switch Output	0V /5V
Ambient Environment
Operating Ambient Temp.	0-70°C (-40-85°C, -55-125°C, etc, customizable )
Storage Temperature	-40-125°C

4.Dimensions

3G Transimitter PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage 0

5.Wiring

3G Transimitter PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage 1

6.Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation
