KUS550 ultrasonic level meter Range: 3m Output RS485 and Analog Output Low Power

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

Product Details

Product:

Ultrasonic Distance Sensor

Detection Range:

200mm~3000mm

Transducer Frequency:

125KHZ

Operating Voltage:

24VDC

Limit Working Voltage:

13VDC~30VDC

IP Grade:

IP67

Highlight:

ultrasonic level transmitter

ultrasonic liquid level sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

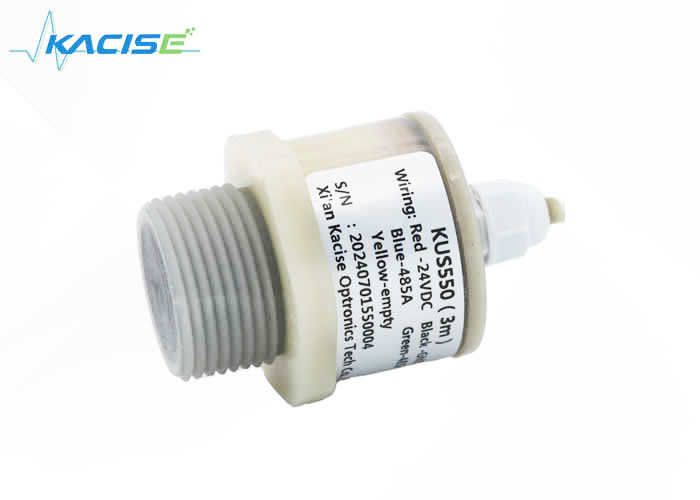

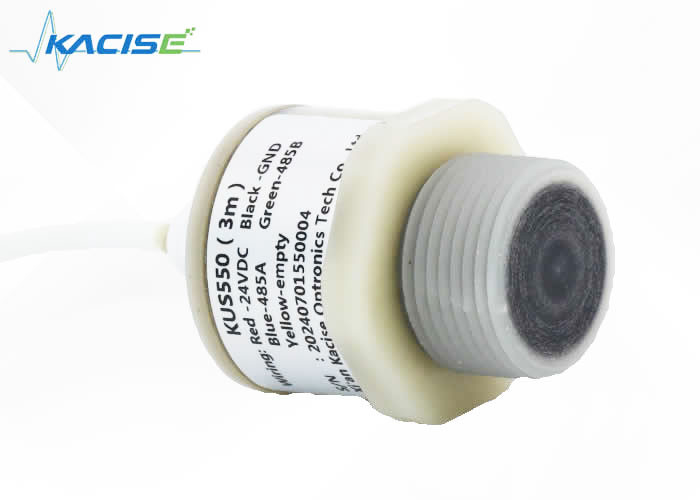

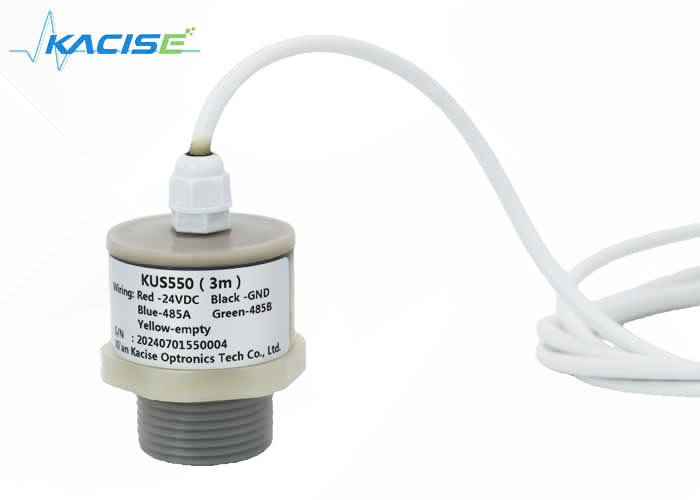

KUS550 Ultrasonic Level meter Range: 3m Output RS485 and Analog Output Low Power IP68 Grade

Introduction

The KUS550 Ultrasonic Level meter is a top-notch device. It has a range of 3m, allowing for effective level sensing. With both RS485 and Analog Outputs, it offers versatile connectivity options. Its low power consumption and IP68 grade make it suitable for various environments. Ideal for applications where accurate and reliable level detection is crucial.

Features

. Designed for outdoor or indoor environments

. High sensitivity

. Readings can occur up to every 50mS (20Hz) within 2meters

. Free run operation can continually measure and output ranger information

. 13-30 supply with very low average current draw

. 0-10V with RS485 interface.

. Sensor operates at 125KHz.

. Sensor beam angle is 7 degrees.

.The analogue output can be set between 0-10V can work with the switch output.

Applications

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

Parameters

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃ (233...358K)
Storage temperature	-40…85℃ (233...358K)

Other instructions

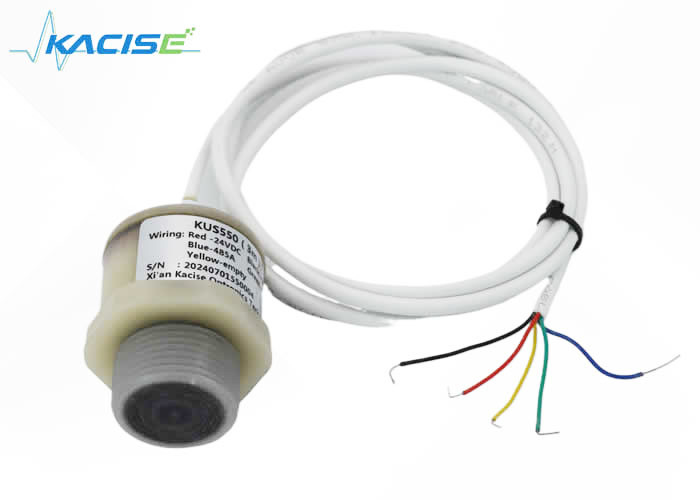

Electrical connection	5-core cable (analog output), 6-core cable (switch output) .
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

Electronic interface and signals definition

Analogue output type wiring diagram

KUS550 ultrasonic level meter Range: 3m Output RS485 and Analog Output Low Power 0 .

Switch output type wiring diagram

KUS550 ultrasonic level meter Range: 3m Output RS485 and Analog Output Low Power 1

Dimensions

KUS550 ultrasonic level meter Range: 3m Output RS485 and Analog Output Low Power 2

Ordering information

KUS	Model	Output	Max range	Description
	550
	Customized
		SW-1	Switch Output,SW-1 for one switch output,SW-2 for 2 switch outputs
		mA	3 wire 4-20mA output
		10V	Output is Vout 0-10V
		5V	Output is Vout 0-5V
		3V	Output is Vout 0-3V
		RS485	Output is RS485
		TTL	UART TTL output
			XX m	XX m is the maxim range can be detected, the max range is 5 meters. Default is 2.5m
KUS	550	RS485	2m

KUS550 ultrasonic level meter Range: 3m Output RS485 and Analog Output Low Power 3
