Non - Invasive Ultrasonic Fluid Level Sensor Temperature Integrated Sensor

Non - Invasive Ultrasonic Fluid Level Sensor Temperature Integrated Sensor

  • Non - Invasive Ultrasonic Fluid Level Sensor Temperature Integrated Sensor
  • Non - Invasive Ultrasonic Fluid Level Sensor Temperature Integrated Sensor
Non - Invasive Ultrasonic Fluid Level Sensor Temperature Integrated Sensor
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: 89
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Accuracy: 0.5%FS Stability: Typical Value: 0.1%F.S Max.: 0.2% F.S
Operating Temperature: -20°C~50°C Certificate: Certificate Of Explosion-proof, CE
Power Supply: 24vdc Type: Ultrasonic Level Sensor
Thickness Of Material: Within 5.5mm
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Ultrasonic Fuel Level truck Sensor

Product Description



1. Principle of Operation

External liquid lever sensor with sonar ranging principle,

using the temperature integrate sensor to process the sonar

signal. the sensor is pasted in the outerwall of the tank. Using the

patented algorithm to calculate the height of the liquid in the

tank and output to a remote control system(eg.DCS) through

(4-20)mA,HART, RS-485, Modbus.

According the figure right, the time is taken for the signal to



be transmitted and then received from the liquid surface. Signals

from the transducer are fed into the processor and then

processed by patented algorithm to calculate the height of the

liquid according to the formula:

H=αV(t-t1)/2

H: height of the liquid

v: velocity of sound in the liquid

t: time between transmitted and received signal

t g : propagation time in the tank wall

α :liquid compensation factor




2. Applications

LPG tanks

liquid ammonia tanks

liquid propane tanks

Fuel tanks

Acids/solvents tanks

Concentrated sulfuric acid(98%) tanks

Nitric acid tanks

Hydrochloric acid tanks


3. Features

True non-invasive sensing technology

The sensor sticks to the outside of the tank bottom

Suitable for most shapes and sizes of cans

Output to telemetry system - various options

CNEX approved for use in hazardous areas

(processor and sensor)

Temperature integrated sensor

Low cost, reliable & accurate tank gauging

Not affected by pressure

Easy installation - no tank break-in

Simple retroft to existing tanks

No down-time during installation

No moving parts – no maintenance


3. Parameter

Measure Range 5cm~3m diesel oil water as so on
Measure Precision 0.5%F.S
Power Supply Way 24vdc
Defend Grade IP66
Operating Temperature -20°C~ 50°C
Storage Temperature -25°C~70°C
Cable Length 8m , can be customized
Communication RS485, RS 232, GPS tracker
Display Resolution 1 mm
Current output (optional) 4-20ma

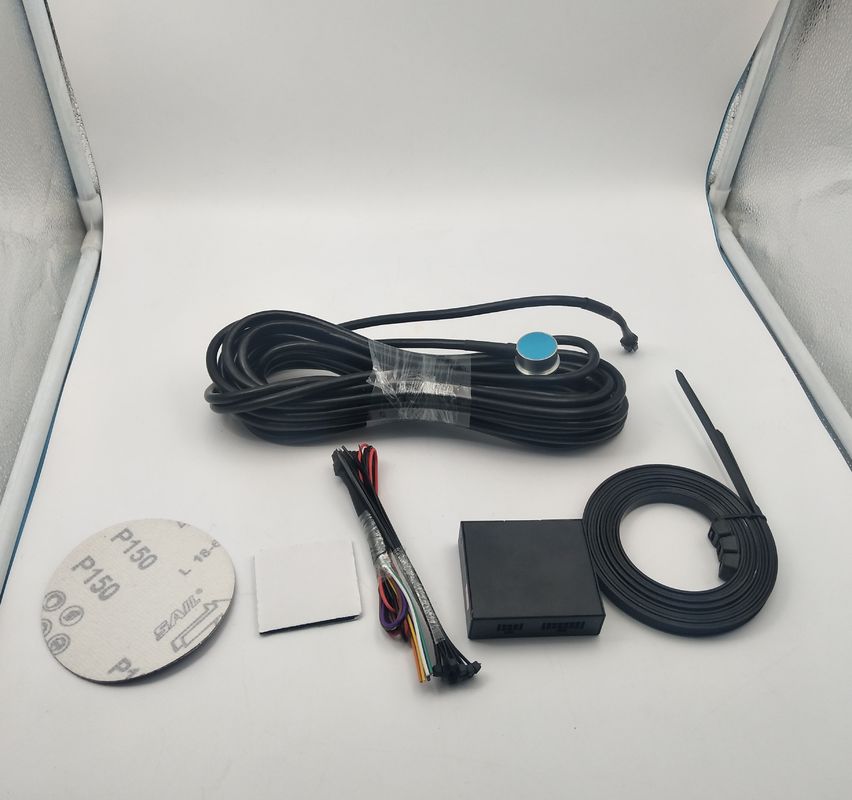

4. Package







In order to choose the suitable pressure sensor for you, please send us below information with the feedback.



1. Application field
2. accuracy
3. output signal
4. power supply voltage
5. Measuring range
6. medium
7. temperature range



5. Application Picture

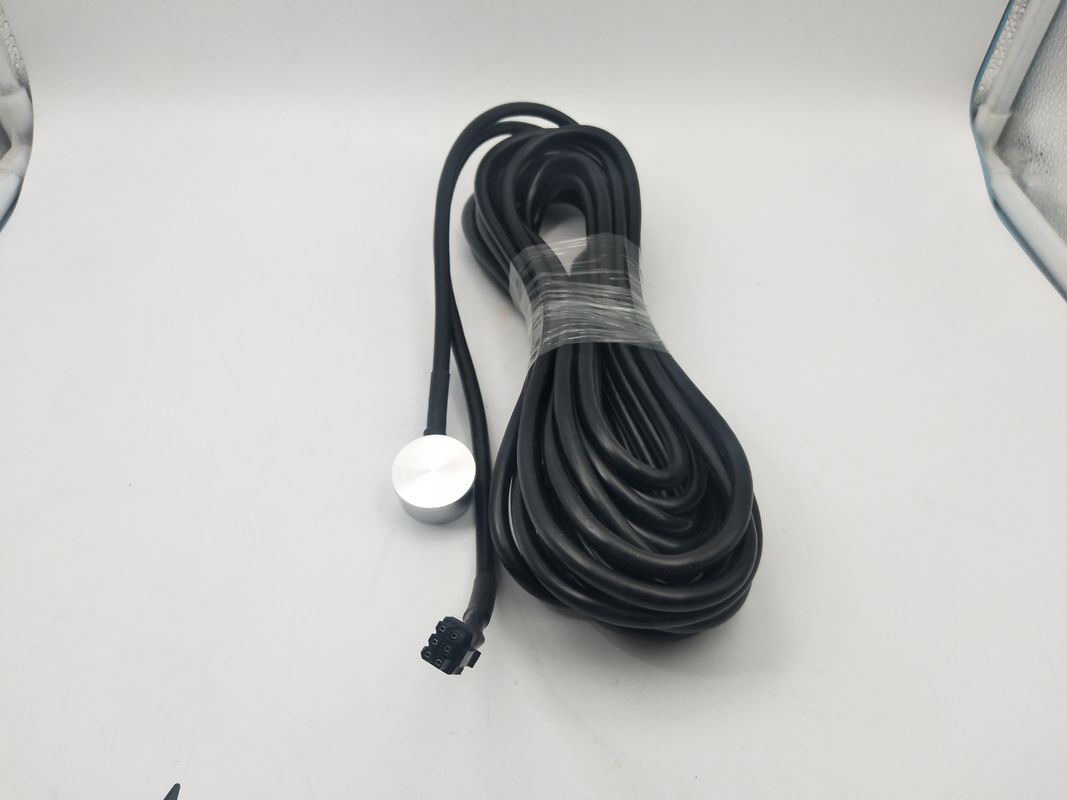

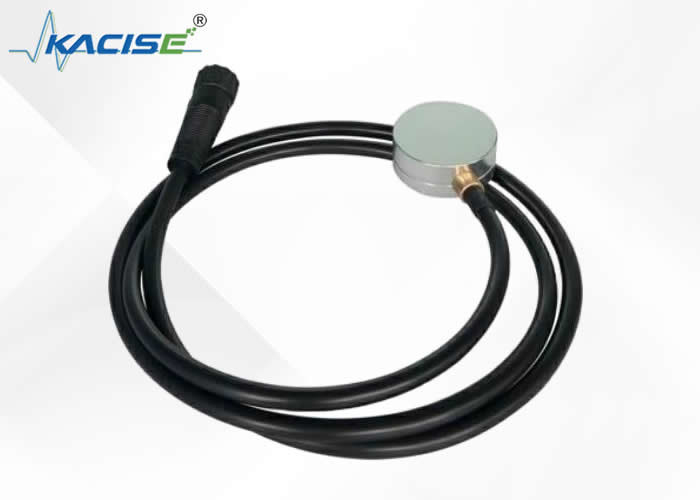

5. Product Picture
