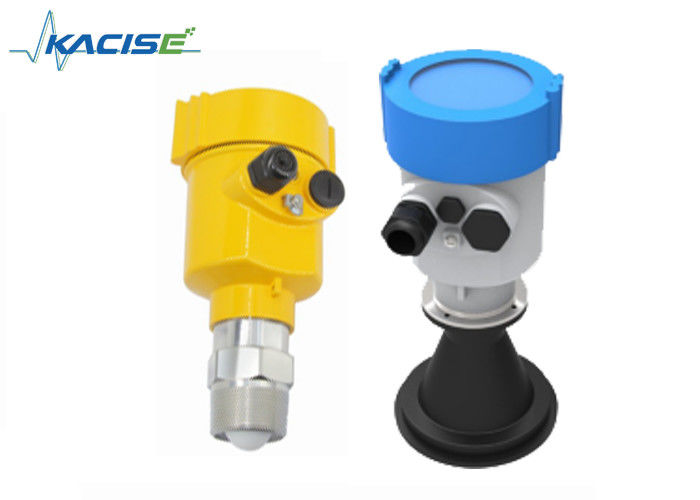

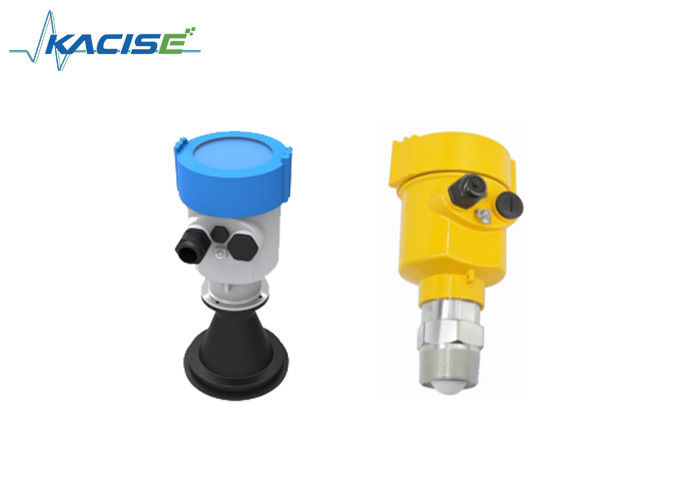

Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area

Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area

    • Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area
    • Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area
  • Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: KACISE
    Certification: CE
    Model Number: KLD-800

    Payment & Shipping Terms:

    Minimum Order Quantity: 0-100
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Frequency: 76GHz-81GHz Measuring Range: 120meters
    Accuracy: ±1mm Explosion-proof: Exia IIC T6
    Protection: IP67 Blind Area: 7~8cm
    Power Supply: 18~28VDC Bead Angel: 8 Or 3
    High Light:

    ultrasonic level transmitter

    ,

    ultrasonic liquid level sensor

    Non-Contact Radar Level Meter 80GHz (FMCW) Level Transmitter for powders and dust atmosphere



    Introduction

    76-81 GHZ frequency modulation wave FMCW radar products (also called a millimeter wave radar), because it USES higher than Ku band radar frequency millimeter wave band, the remote target detection, strong smoke dust environment, remote imaging, the respect such as multi-spectral imaging have important applications, and can detect more than microwave radar small goal and achieve a more accurate positioning, with a higher resolution and more privacy.



    Application field



    • The emission angle is less than 3 °, which is suitable for narrow space or guided wave pipeline measurement
    • Measuring range could reach to 120M, which is suitable for the measurement of large storage tanks
    • Measurement dead zone is in the range of 7-8CM, suitable for the measurement of small storage tanks
      The product has extremely high measurement accuracy, suitable for high-precision measurement level measurement
    • The product has rich echo processing algorithms and empirical data of various working conditions; it has unique advantages than other similar products in the application of extremely harsh working conditions such as strong dust, steam, or special process storage tanks with stirring and heating rods.



    Features of 80G Radar Level Sensor

    • 76GHz-81GHz FM wave radar
    • 5GHz ultra-large FM scanning frequency width, wide application
    • Support standard HART, RS485 / MODBUS bus protocol
    • Support operation mode such as upper computer setting software, tank side table, etc.
    • 24VDC power supply
    • Simple installation structure, adapt to various installation forms on site

    Parameters

    Frequency 76GHz~81GHz,FM sweep frequency width 5GHz
    Range

    0: 0.2 m~60m(Solid)(T0 Series blind area add 0.2m)

    1: 0.0 m ~30m(Liquid)(T0 Series blind area add 0.2m)

    2: 0.6m~120m(Solid)(T0Series blind area add 0.2m)

    Accuracy ±1mm
    Beam Angle 3°,8°
    The usage dielectric constant range >=2
    Power Supply

    18~28.0VDC,

    4 wire

    2 wire

    Communication Mode

    MODBUS

    HART

    Signal Output

    4~20mA or RS-485

    4~20mA

    The Fault Output 3.8mA,4mA,20mA,21mA, maitain
    Field operation / programming

    128×64 dot matrix display /4 button

    Upper computer setup software can be configured

    Temperature/humidity -40~85℃/≤95%RH
    Shell material Alluminum alloy, stainless steel
    Antenna Type Lens antenna, can be equipped with lens antenna shield/anti-corrosion antenna/antenna cooling paste/quartz isolation flange
    Process pressure -0.1~2MPa
    Outline Ø100*270mm
    Cable Connection M20*1.5
    Commend cable AWG18 or 75mm²
    Protection Grade IP67
    Explosion Grade ExdiaIICT6
    Installation Screw or flange




    Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
    We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
    Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
    Our Services



    • Your inquiry will be replied in 24hours.
    • Well-trained and experienced staffs to answer all your enquires in fluent English.
    • OEM&ODM, we can help you to design and your request will be put into product.
    • Distributorship are offered for your unique design and some our current models.
    • Protection of your sales area, ideas of design and all your private information.
    • Discounts are offered based on order quantities.
    • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
    • Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area 0

    Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area 1Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area 2Ip67 Protection Non Contact Radar Level Transmitter High Accuracy 7 - 8cm Blind Area 3
