Detailed Product Description
Storage Temperature: -20-80℃ Operating Temperature: -20-60℃
Operating Humidity: 0-90%RH Work Pressure: 0.8-1.2atm
Supply Voltage: 5-5.5V Maximum Operating Current: 120-150mA
Light Source Current: 60-70mA Warm-up Time: 120S
T90: 20S Repeatability Of ZERO: <±50ppm
Repeatability Of 50% FS: <±5% Of The Measured Value Life Span: 10 Year
High Light:

20S Fast Gas Detector Sensor

,

20SInfrared Carbon Monoxide Module

,

70mA Carbon Monoxide Module

KCS501X Infrared CO2 Module





























Table 1 Version history

version date description
V1.0 2016-10-12 V1.0 released
V2.2 2018-03-06 Adapt product attribute modifications













Table of Contents

1. overview............................................................................................................. 4

2. Technical parameters............................................................................................ 5

3. Structural Dimension Drawing................................................................................ 6

4. Signal output........................................................................... 错误!未定义书签.

5. Installation instructions................................................................................................... 7

6. Matters that should be paid attention to in maintenance..................................................... 7

7. Ordering instructions....................................................................................................... 7

8. Order Information........................................................................................................... 8

9. Contact Details............................................................................................................... 9







1. overview

KCS501X is a gas detection module based on the principle of NDIR infrared absorption, suitable for detecting carbon dioxide concentration in gas environment at room temperature.

KCS501X adopts a patented optical cavity, imported light source and dual-channel detector to achieve dual optical path reference compensation in space. KCS501X has good selectivity, no oxygen dependence, and long life.

KCS501X has UART, IIC digital output, analog voltage output and PWM frequency output mode, which is convenient for customers to choose applications; The KCS501X provides zero calibration, sensitivity calibration, and clean air calibration commands, and provides customers with a manually calibrated MCDL pin to facilitate the relative zero calibration of the sensor module using outdoor free-flowing clean air. KCS501X adopts diffusion ventilation method, which has a fast diffusion speed.

KCS501X can be widely used in HVAC fresh air control, indoor air quality monitoring, agricultural and animal husbandry production process monitoring, can be installed in intelligent buildings, ventilation systems, robots, automobiles and other applications. It can also be applied to other confined spaces for air quality monitoring.









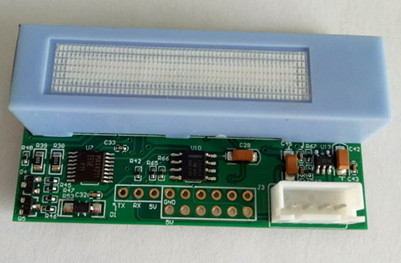

KCS501X diffuse exterior view

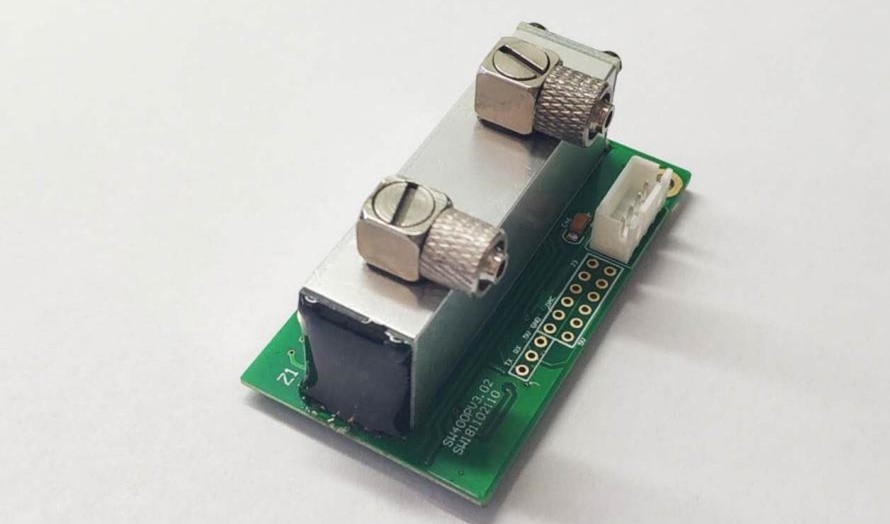

KCS501X pump suction exterior view

2. Technical parameters

parameter symbol minimum Typical values maximum unit
Storage temperature Tstg -20 - 80 °C
Operating temperature TA -20   60 °C
Operating humidity HA 0   90 % RH
Work pressure PA 0.8   1.2 atm
Supply voltage Vs 5 5 5.5 V
Maximum operating current Imax   120 150 mA
Light source current Iavg   60 70 mA
Warm-up time twarm 90 120 180 Sec
T90 diffusion - 20 40 second
repeatability zero     <±50   ppm
50% FS -   <±5% of the measured value -
life span   3 10 15 year







3.Structural Dimension Drawing

Unit: mm









Diffusion





Pump-suction type





5. Installation instructions

The sensor is mounted with a positioning hole spacing of 44.5mand a mounting hole diameter of 2.8 mm

The wiring socket spacing is 2.54 m m

Note: SW400PV3.01, mounting aperture: 3.2mm



6. Matters that should be paid attention to in maintenance

The sensor should be calibrated regularly, it is recommended that it be no more than 3 months, and calibration is not required on the long-term operation side if automatic calibration is turned on

Do not use the sensor for a long time in an environment with a high density of dust

Please use the sensor within the range of the sensor's power supply

7. Ordering instructions

In order to be able to purchase the specific specifications required, please provide the following information

1) Sensor name

2) Sensor range

3) Sensor measurement accuracy such as SW400, 0-2000pp

































8. Order Information



Order information sheet
KCS501X KCS501X CO2 concentration sensor
  xxxx The sensor measures the range of CO2 concentration in ppm, with a minimum value of 2000 and a maximum value of 50000 ppm.
2000 Range 200ppm (default).
10000 Range 10000ppm
50000 Range 50000ppm
  encode The reaction speed is divided into two types: fast and slow
S Slow (default).
Q fast
  encode Baud rate selection, support commonly used baud rate 2400 9600 19200 38400bps, 8 bits of data, 1 bit of stop bit, no check bit: Confirm special needs before ordering.
Custom Confirm the baud rate before ordering
2400 2400bps baud rate
9600 9600bps baud rate
19200 19200bps baud rate
38400 38400bps baud rate (default)
  encode Serial port protocol
Modbus-RTU Standard Modbus-RTU protocol (default).
Modbus-ASCII Standard Modbus-ASCII protocol
Modbus-Self Modbus private protocol
KCS501X -2000 -S -38400 -Modbus-RTU







9. Contact Details

URL: www.kacise.com

Tel: +86-29-17719566736

Email: sales@kacise.com

Address: Tangyan South Road, Xi'an City, Shaanxi Province, China



























































































Appendix



Shorthand Full name
VOL 1% VOL refers to 1% of the volume of a particular gas in air.
PPM 1PPM means that the volume of a specific gas in the air accounts for one millionth.
O2 Oxygen molecules
LCD LCD display
RS485 Asynchronous serial port 485
DC direct current
AC Communication
PVC polyvinyl chloride
