KSS5F6 Infrared SF6 Purity Meter





























Table 1 Version history

version	date	description
V1.0	2016-10-12	V1.0 released
V2.2	2018-03-06	Adapt product attribute modifications













Table of Contents

1. Overview............................................................................................................. 4

2. Technical Parameters............................................................................................ 5

3. Structural Dimension Drawing................................................................................ 6

4. Installation instructions................................................................................................... 6

5. Matters that should be paid attention to in maintenance..................................................... 6

6. Ordering Instructions...................................................................................................... 6

7. Order Information........................................................................................................... 7

8.Contact Details............................................................................................................... 8







1. Overview

SF6 gas is widely used as an insulating medium and arc extinguishing gas in power equipment, especially in high-voltage circuit breakers, transformers, transformers, capacitors, arresters, fuses, etc. Leakage occurs, equipment pressure decreases, insulation capacity is reduced; Pollute and destroy the atmospheric environment, increase the greenhouse effect; Accumulation in low-level spaces, resulting in accidents such as lack of oxygen in the brains of staff and even rapid asphyxiation; Under the influence of partial discharge, high temperature and other factors, SF6 gas will produce highly toxic decomposition substances such as SF4, SF2, SOF2, etc.

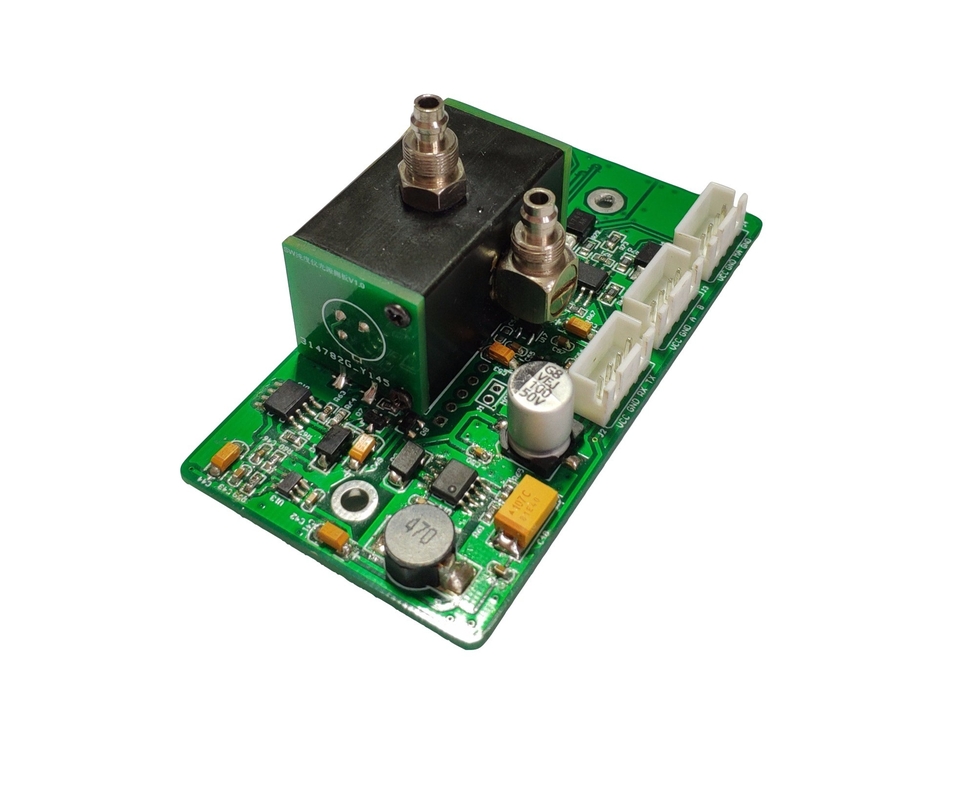

SF6 Purity Meter is a gas sensor module using NDIR infrared absorption detection principle. The concentration is determined according to the absorption of SF6 gas at 10.5um. The single-light source and dual-channel structure of MEMS light source, dual-channel pyroelectric detector and optical gas chamber are used to realize the reference compensation of the spatial dual optical path. Microprocessors perform signal acquisition, processing, and output, with temperature compensation and nonlinearity correction.







2. Technical Parameters





parameter		symbol	minimum	Typical values	maximum	unit
Storage temperature		Tstg	-20	-	80	°C
Operating temperature		TA	-20		60	°C
Operating humidity		HA	0		90	% RH
Work pressure		PA	0.8		1.2	atm
Supply voltage		Vs	11	12	30	V
Maximum operating current		Iavg	100	120	150	mA
Detection range		Ra		90-100		%vol
resolution		Resolution		1000		ppm
Measurement accuracy		Acurracy		± 0.3% true value		%vol
T90 pipeline type				20(500ml/min)		second
repeatability	zero			Less than 0.2% FS
	Range			Less than 0. 3%FS
life span				10		year
Air intake method				Pipe-type
Warm-up time				10min
Means of communication				UART,485,4~20mA
Operating temperature		T		The default is -20 degrees to 60 degrees, which can be customized by customers
baud rate				9600, can be customized
Address number				The default is 20H, which can be modified by customers







3.Structural Dimension Drawing

Unit: mm



LENGTH * WIDTH * HEIGHT (MM) = 80 * 43 * 40



4. Installation instructions

See structural dimension drawing.

5. Matters that should be paid attention to in maintenance

The sensor should be calibrated regularly, not more than 3 months is recommended.

Do not use the sensor for a long time in an environment with a high density of dust.

Please use the sensor within the range of the sensor's power supply.

6. Ordering Instructions

In order to be able to purchase the specific specifications required, please provide the following information

1) Sensor name 2) Sensor range 3) Measurement accuracy, etc

For example, KSS5F6, 90%~100%, 2% accuracy, etc





















7. Order Information



Order information sheet
KSS5F6	KSS5F6 CO2 concentration sensor
	xxxx	The sensor measures the range of CO2 concentration in ppm, with a minimum value of 2000 and a maximum value of 50000 ppm.
	2000	Range 200ppm (default).
	10000	Range 10000ppm
	50000	Range 50000ppm
		encode	The reaction speed is divided into two types: fast and slow
		S	Slow (default).
		Q	fast
			encode	Baud rate selection, support commonly used baud rate 2400 9600 19200 38400bps, 8 bits of data, 1 bit of stop bit, no check bit: Confirm special needs before ordering.
			Custom	Confirm the baud rate before ordering
			2400	2400bps baud rate
			9600	9600bps baud rate
			19200	19200bps baud rate
			38400	38400bps baud rate (default)
				encode	Serial port protocol
				Modbus-RTU	Standard Modbus-RTU protocol (default).
				Modbus-ASCII	Standard Modbus-ASCII protocol
				Modbus-Self	Modbus private protocol
KSS5F6	-2000	-S	-38400	-Modbus-RTU







8.Contact Details

URL: www.kacise.com

Tel: +86-29-62929722

Email: sales@kacise.com

Address: Tangyan South Road, Xi'an City, Shaanxi Province, China
