| Place of Origin: | shanxi xi'an |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSS530 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | each unit has indicidual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Storage Temperature: | -20-80℃ | Operating Temperature: | -20-60℃ |
|---|---|---|---|
| Operating Humidity: | 0-90%RH | Work Pressure: | 0.8-1.2 Atm |
| Supply Voltage: | 12V | Maximum Operating Current: | 120mA |
| Range (customizable): | 100ppm | Measurement Accuracy: | 0.5ppm Or ±2% True Value Is The Greater |
| T90 Of Pump Suction: | 5S | T90 Of Diffusion: | 30S |
| Repeatability Of Zero: | <±50 Ppm | Repeatability Of 50%F.S.: | <±5% Measurement |
| Life Span: | 10 Years | ||
| High Light: | SF6 Gas Detector Sensor Module,5% SF6 Gas Detector Sensor,MEMS SF6 Gas Detector Sensor |
||

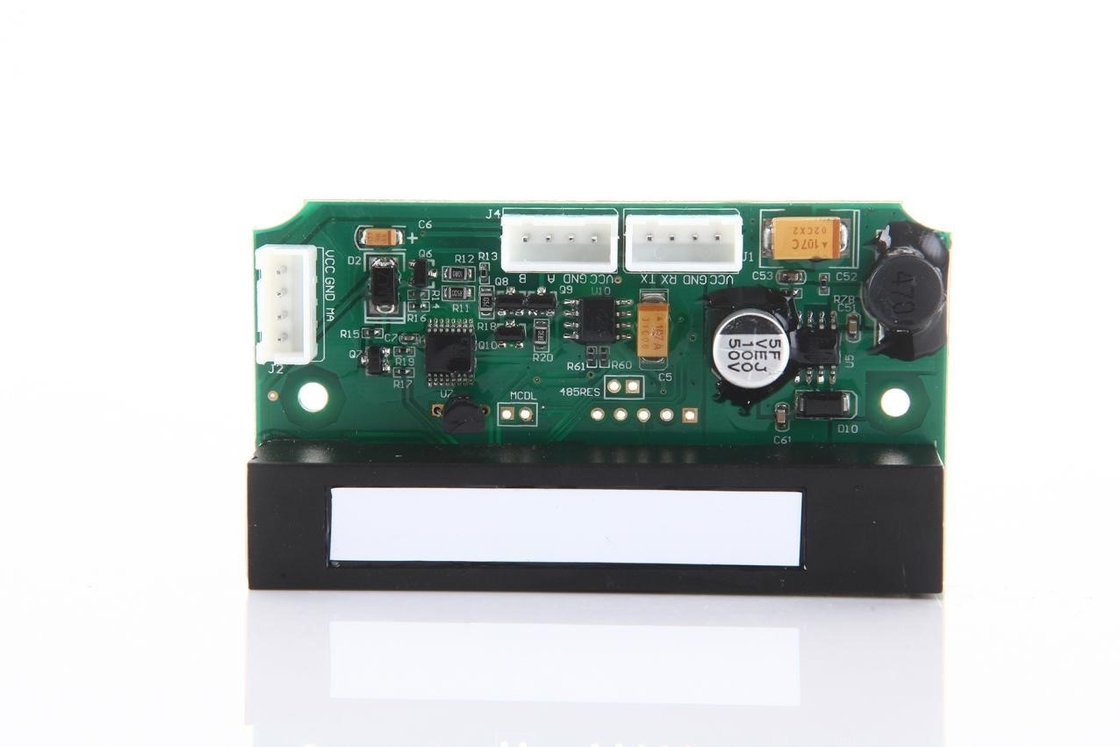

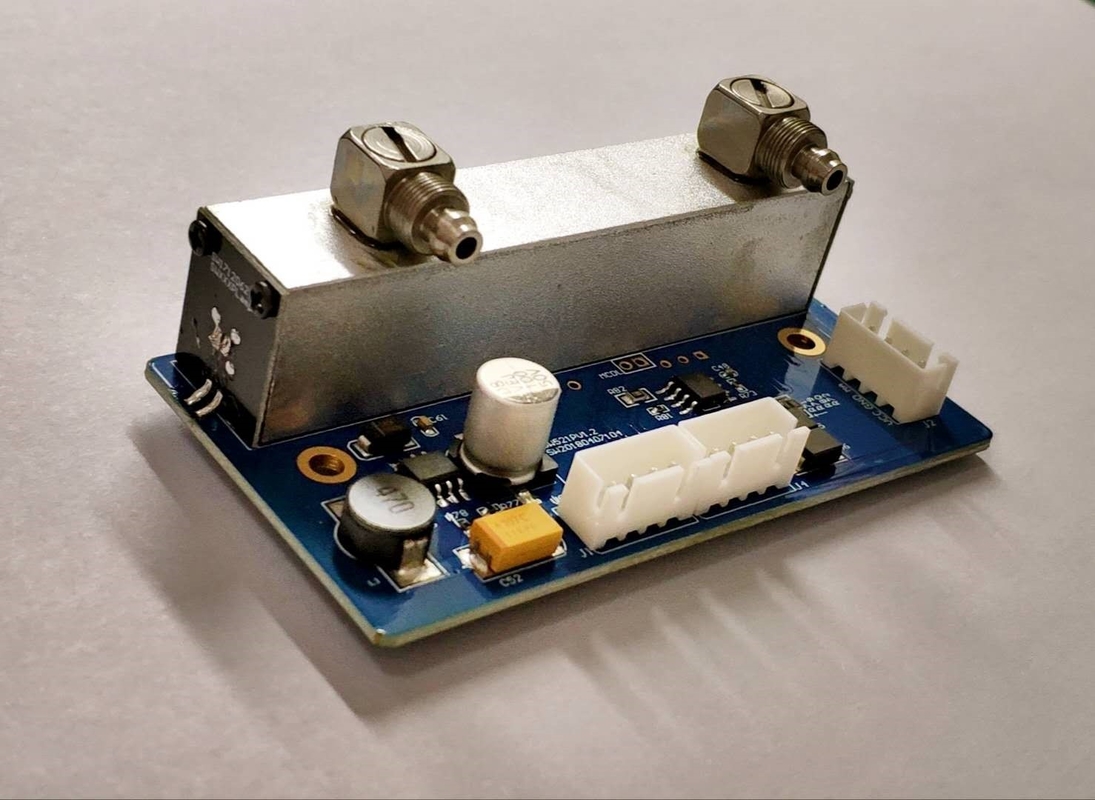

KSS530 Infrared SF6 Gas Sensor Module
KSS530 is a gas sensor module using NDIR infrared absorption detection principle, which determines the concentration according to the absorption of SF6 gas at 10.6um. KSS530 adopts MEMS light source, optical cavity with special structure and dual-channel detector to realize spatial dual-optical path reference compensation, and microprocessor for signal acquisition, processing and output. KSS530 has good selectivity, high sensitivity, no oxygen dependence, long life, low power consumption; Built-in temperature sensor for temperature compensation; At the same time, it has UART, 485 output and analog voltage output, which is convenient for customers to various applications.
| parameter | symbol | minimum | Typical values | maximum | unit | |
| Storage Temperature | Tstg | -20 | - | 80 | °C | |
| Operating Temperature | TA | -20 | 60 | °C | ||
| Operating Humidity | HA | 0 | 90 | % RH | ||
| Work Pressure | PA | 0.8 | 1.2 | atm | ||
| Supply Voltage | Vs | 11 | 12 | 30 | V | |
| Maximum Operating Current | Iavg | 100 | 120 | 150 | mA | |
| Range (customizable) | 100 | ppm | ||||
| Measurement Accuracy | Acurracy | 0.5ppm or ±2% true value is the greater | %vol | |||
| T90 | Pump suction | 5 | second | |||
| Diffusion | 30 | second | ||||
| Repeatability | Zero | <±50 | ppm | |||
| 50%F.S. | <±5% measurement | |||||
| Life Span | 10 | year | ||||
The sensor is mounted with a positioning hole spacing of 64 mm and an aperture of 3 mm
The wiring socket spacing is 2.54 m m
The sensor should be calibrated regularly, it is recommended that it be no more than 3 months, and calibration is not required if automatic calibration is turned on for long-term operation
Do not use the sensor for a long time in an environment with a high density of dust
Please use the sensor within the range of the sensor's power supply
In order to be able to purchase the specific specifications required, please provide the following information
1) Sensor name
2) Measure the gas
3) Sensor range
For example, SW521R200, SF6, 0-100 ppm
In order to facilitate the better use of this product, V1.2 updates the calculation method of returning concentration value in the 4.3.2 MODBUS RTU protocol and the command description of reading concentration value after changing the address.
| Order information sheet | |||||
| KSS530 | KSS530 infrared SF6 gas sensor module | ||||
| xxxx | The sensor measures the range of CO2 concentration in ppm, with a minimum value of 2000 and a maximum value of 50000 ppm. | ||||
| 2000 | Range 200ppm (default). | ||||
| 10000 | Range 10000ppm | ||||
| 50000 | Range 50000ppm | ||||
| encode | The reaction speed is divided into two types: fast and slow | ||||
| S | Slow (default). | ||||
| Q | fast | ||||
| encode | Baud rate selection, support commonly used baud rate 2400 9600 19200 38400bps, 8 bits of data, 1 bit of stop bit, no check bit: Confirm special needs before ordering. | ||||
| Custom | Confirm the baud rate before ordering | ||||
| 2400 | 2400bps baud rate | ||||
| 9600 | 9600bps baud rate | ||||
| 19200 | 19200bps baud rate | ||||
| 38400 | 38400bps baud rate (default) | ||||
| encode | Serial port protocol | ||||
| Modbus-RTU | Standard Modbus-RTU protocol (default). | ||||
| Modbus-ASCII | Standard Modbus-ASCII protocol | ||||
| Modbus-Self | Modbus private protocol | ||||
| KSS530 | -2000 | -S | -38400 | -Modbus-RTU | |
