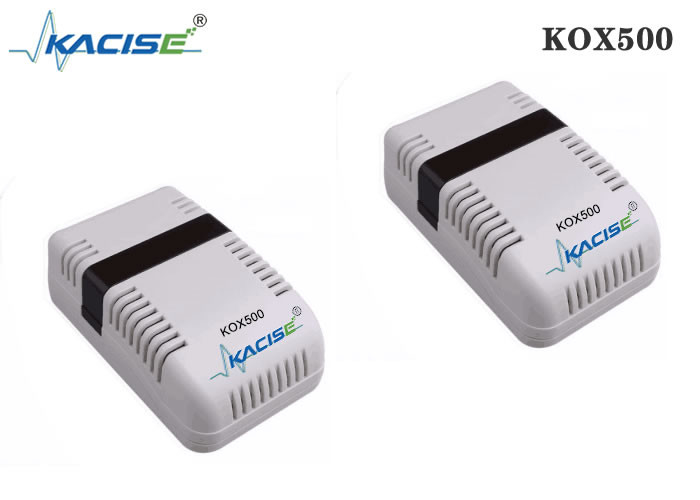

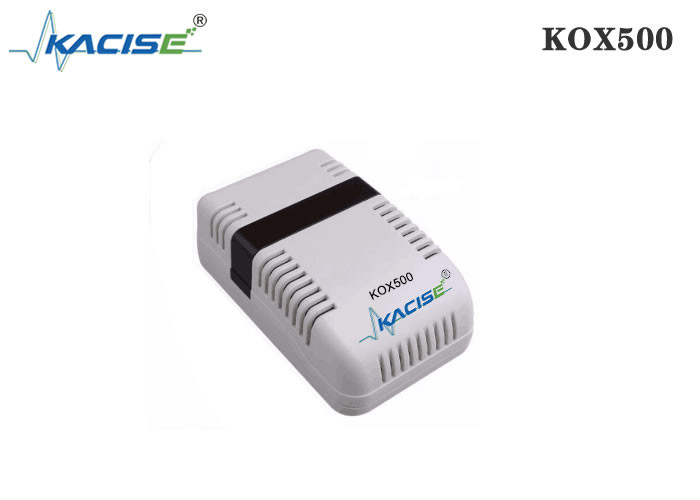

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy

  • KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy
  • KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy
  • KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy
KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy
Product Details:
Place of Origin: China
Brand Name: Kacise
Model Number: KOX500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 124~144USD/pc
Packaging Details: carton About 80 g
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100+
Contact Now
Detailed Product Description
Measurement Accuracy: ± (0.3%VOL+ 5%FS) Measuring Range: 0 ~ 25% VOL
Response Time: <15s Signal Output: 4 ~ 20 Ma / 0 ~ 10 V UART RS485
Signal Type: RS485 Serial Port Output RS485 Type: Multiple, Half Duplex
Connection: 2 Wire System, Maximum Communication Distance 1200 Meters, Cable Direct Connection Power Supply: 12VDC±10% 220VAC 50HZ
The Shell: ABS(grey)
High Light:

ABS Shell O2 Sensor

,

High Accuracy O2 Sensor

,

RS485 Oxygen Gas Detector Sensor

First-class quality & Professional service

KOX500 Series O2 Sensor ABS Shell High Measurement Accuracy 0



Production Introduction
The sensor module adopts high precision detection technology and the core sensor adopts electrochemical sensor. The module uses a high-performance microprocessor and is equipped with different gas sensors to measure the corresponding gas. With digital output and analog voltage output, convenient for users to use and debug, greatly shorten the user's design and development cycle. It combines electrochemical sensor and circuit perfectly to meet the needs of customers for different gas detection occasions.
The module provides 4-20MA, 0-10V, RS485 output, suitable for a variety of customer application scenarios.
Features
Ø Different gas sensors can be mounted to measure the corresponding gas
Ø Advanced circuit design, high measurement accuracy, stable performance
Ø Lightweight case for easy field installation
Ø Rich interface, convenient for customers to choose
Ø Provide zero point calibration
Application
Ø Air quality monitoring
Ø Smart Buildings
Ø Granary air detection

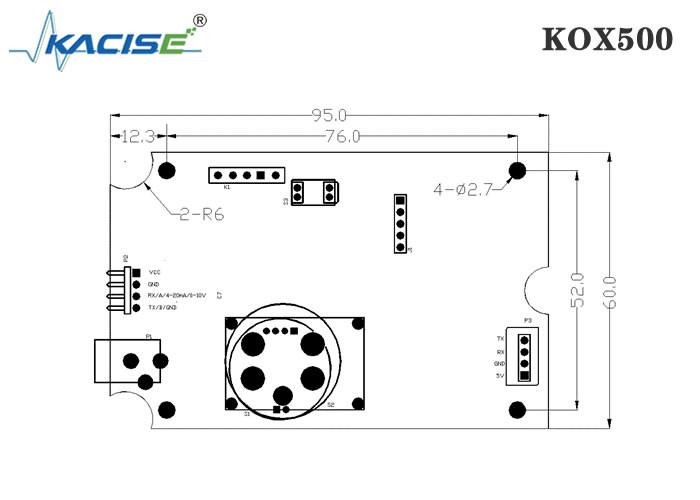

KOX500 size structure chart
Sensor size (unit mm)

KOX500 technical parameters

Class

Performance

Parameter

O2

Sensor type

Electrochemical principles

Measurement accuracy

± (0.3%VOL+ 5%FS)

Measuring range

0 ~ 25% VOL

Response time

<15s

Calibration

Standard calibration

output parameter

Signal output

4 ~ 20 ma / 0 ~ 10 v UART RS485

485 parameter

Signal type

RS485 serial port output

RS485 type

Multiple, half duplex

Connection

2 wire system, maximum communication distance 1200 meters, cable direct connection

Address

1-254, through software Settings, broadcast address 255, default address 32

Communication Protocol

MODBUS-RTU,

Data Format

1 start bit, 8 data bits, no oddity, 1 stop bit

Baud rate

The default value is 9600bit/s

The energy consumption

Power supply

12VDC±10%

220VAC 50HZ

Connection mode

Terminal

2.54mm four-core socket

The environment

Working environment

Temperature -20...+ 50 ℃

Humidity 15...90%RH, no condensation

Storage environment

Temperature 10...+ 30 ℃

Humidity 0-90%RH, no condensation

Protection grade



Enclosure protection class

IP30 Refer to IEC 529 -- 598/GB 700 -- 86/ GB 4208

Materials and Colors

The shell

ABS(grey)

Weight

About 80 g
Ordering information
Ordering Information Selection Table
Product Power supply Cable length Signal output
KOX500 O2 Gas Sensor
  12VDC The power supply is 12VDC (Default)
220V/110VAC The power supply is 220/110VAC
  Cable length
XXm The default is 5meters the longest is 500m
  4-20mA 4-20mA output without RS485 output
RS485 RS485 output without 4-20mA output (Default)
ARS485 4-20mA output with RS485 output
  Modbus-RTU protocol of RS485 output is Modbus-RTU (Default)
Modbus-ASC protocol of RS485 output is Modbus-RTU
customized Support OEM
KOX500 DC12V 5m RS485 Modbus-RTU
Matters needing attention
Ø In environments with EMC problems, shielded cables must be used.
Ø When the module is started cold, the preheating time should not be less than 2 minutes.
Ø The sensor should be calibrated regularly, and no more than 3 months is recommended.
Ø Do not use the sensor in a dust dense environment for a long time.
Ø Please pay attention to the wiring of the positive and negative terminals of the power supply and the signal output terminals. Do not connect backward.
Ø High concentration of chemical pollution will lead to the damage of sensor polymerization layer, therefore, the product should be kept and used away from chemical pollution sources.
Ø Please refer to the relevant national product installation standards for the installation process.

Summary appendix

Abbreviation

Paraphrase

VOL

100PPM

O2

Oxygen molecular formula

LCD

Liquid Crystal Display

RS485

asynchronous serial

DC

Direct Current

AC

Alternating Current

PVC

Polyvinyl chloride
