4 - 20mA Anti Corrosive Radar Level Transmitter Diesel Fuel Oil Water Tank FMCW KLD803

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Certification:	CE/Explosion-proof
Model Number:	KLD803

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100+

Contact Now

Detailed Product Description

Medium:	Strong Corrosive Liquid, Steam, Foam	Measuring Range:	0.1m～10/20/30/60/100m
Process Connection:	Flange ≥ DN50	Process Temperature:	-40～130℃
Process Pressure:	-0.1～2.5MPa	Antenna Size:	34mm Lens Antenna (according To Flange Size)
Antenna Material:	PTFE	Accuracy:	±1mm/±5mm
Protection Class:	IP67	Center Frequency:	80GHz
Launch Angle:	3°	Power Supply:	DC24V/DC12~24V /AC220V
Casing:	Aluminum/plastic/stainless Steel	Signal Output:	4...20mA/HART Protocol/RS485 Modbus
High Light:	20mA Anti Corrosive Radar Level Sensor , Diesel Fuel Radar Level Transmitter , FMCW Radar Level Transmitter

KLD803 80G FM Radar Level Sensor

Introduction

The hardware system uses advanced microprocessors and embedded system processing software. The signal algorithm processing integrates advanced Echo-capture signal processing technology. This makes the product applicable to various complex industrial plant conditions.

The “empty tank pretreatment” technology enables the instrument to correctly identify effective echoes and obtain correct measurement results even in the presence of multiple false echo interference.

Not affected by various complicated working conditions. Such as strong corrosive liquid, steam, foam medium.

Feature

Cast aluminum shell: safe, durable (not easy to oxidize and rust), light weight, strong plasticity (strong ductility)
Stainless steel shell: 304 (high temperature resistance, high toughness), 316L (corrosion resistance)
False wave learning function

KLD803

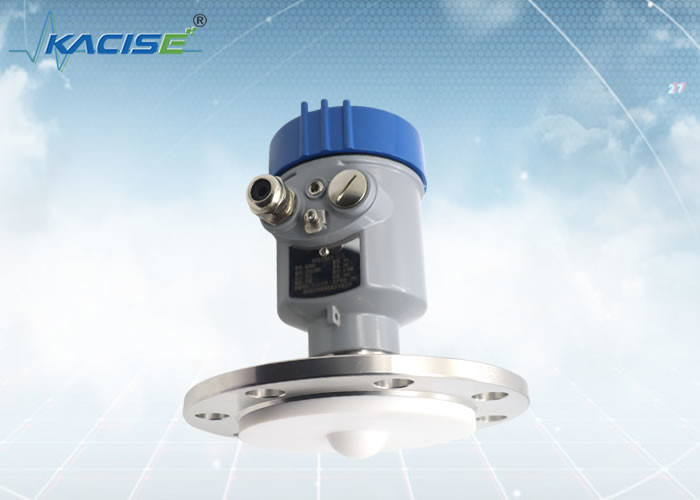

4 - 20mA Anti Corrosive Radar Level Transmitter Diesel Fuel Oil Water Tank FMCW KLD803 0

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～2.5MPa

Antenna size: 34mm lens antenna (according to flange size)

Antenna material: PTFE

Accuracy: ±1mm (range below 35m)

±5mm (range between 35m and 100m)

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbu

Product Dimension

Unit in mm:

4 - 20mA Anti Corrosive Radar Level Transmitter Diesel Fuel Oil Water Tank FMCW KLD803 1

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

datum plane
vessel center or axis of symmetry

4 - 20mA Anti Corrosive Radar Level Transmitter Diesel Fuel Oil Water Tank FMCW KLD803 2

Hoisting Installation

What does FMCW stand for?

FMCW, namely Frequency Modulated Continuous Wave.
FMCW technology and pulse radar technology are two technologies used in high-precision radar ranging. The basic principle is that the transmitted wave is a high-frequency continuous wave. Its frequency changes with time according to the law of triangle wave.
FMCW (Frequency Modulated Continuous Wave), the received echo frequency and the transmitted frequency change law are the same, both are triangular waves. There is only a time difference. Using this tiny time difference, the target distance can be calculated.
