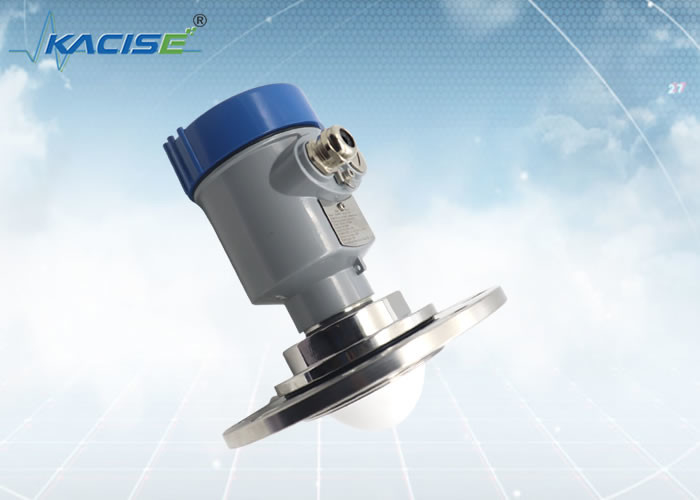

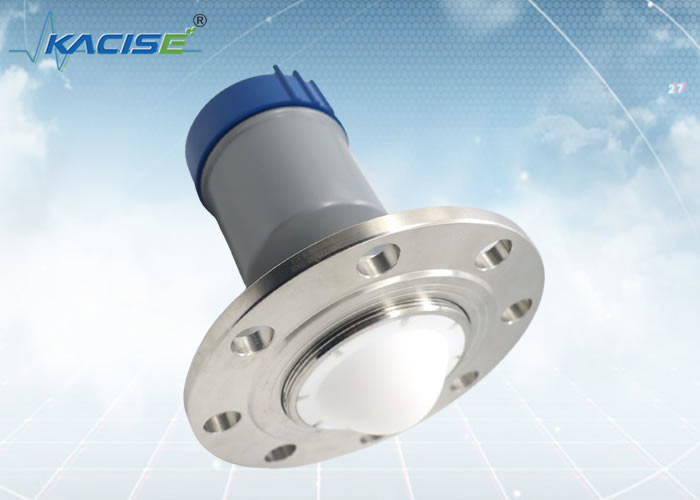

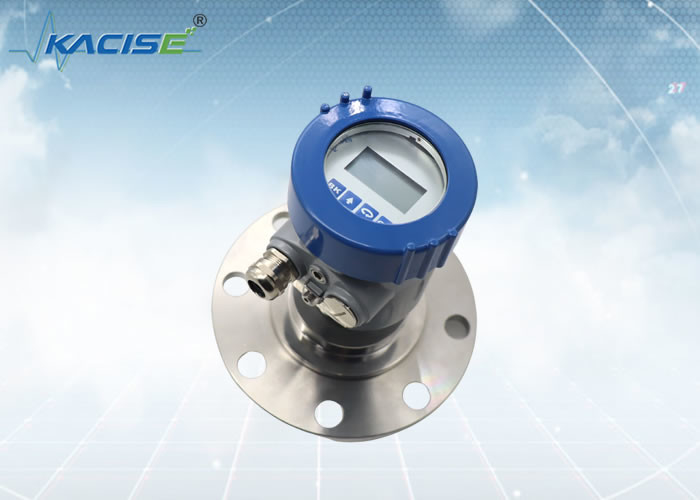

Name: KLD804 Liquid Water Radar Type Level Sensor For Long / Tall / Narrow Applications
Brand: Kacise
SKU: KLD804
Rating: 4.9 (189 reviews)

Home Products Fluid Level Meter

KLD804 Liquid Water Radar Type Level Sensor For Long / Tall / Narrow Applications

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Certification:	CE/Explosion-proof
Model Number:	KLD804

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100+

Contact Now

Detailed Product Description

Medium:	Strong Corrosive Liquid, Steam, Foam	Measuring Range:	0.1m～10/20/30/60/100m
Process Connection:	Flange ≥ DN50	Process Temperature:	-40～130℃
Process Pressure:	-0.1～1.0MPa	Antenna Size:	76mm Lens Antenna (according To Flange Size)
Antenna Material:	PTFE	Accuracy:	±1mm
Protection Class:	IP67	Center Frequency:	80GHz
Launch Angle:	2°	Power Supply:	DC24V/DC12~24V /AC220V
Casing:	Aluminum/plastic/stainless Steel	Signal Output:	4...20mA/HART Protocol/RS485 Modbus
High Light:	Flange Radar Type Level Sensor , Liquid Radar Type Level Sensor , Explosion Proof Radar Level Transmitter

KLD804 80G FM Radar Level Sensor

Introduction

The extremely narrow microwave pulse emitted by the antenna on radar level instrument can travel at the speed of light and part of its energy, which is reflected off the surface of target medium, is received by the very same antenna. The time lapse between pulse emission and reception by the antenna is proportional to the distance between the surface of target medium and the reference point on antenna. However, due to the fact that the electromagnetic wave is transmitted at extremely high speed, which leads to the tiHH time lapse (nanosecond level) and makes it difficult to be identified, the series of radar level instrument have adopted a special demodulation technology, enabling itself to detect the time lapse between pulse emission and reception correctly, and eventually generate accurate measurement result.

Feature

• Low power consumption power supply enables the equipment to operate independently in the most remote areas;

• Non-contact measurement principle. Not damaged by silt accumulation or debris;

• Wireless transmission, avoid the trouble of pulling cables. Install and use, remotely unattended;

• High-level industrial requirements for the appearance of the iron shell. Application in hazardous areas and harsh environments;

KLD804

KLD804 Liquid Water Radar Type Level Sensor For Long / Tall / Narrow Applications 0

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 2°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Casing Dimension

Unit in mm:

KLD804 Liquid Water Radar Type Level Sensor For Long / Tall / Narrow Applications 1

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

datum plane
vessel center or axis of symmetry

KLD804 Liquid Water Radar Type Level Sensor For Long / Tall / Narrow Applications 2

Hoisting Installation

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
