| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KLD805 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Medium: | Strong Corrosive Liquid, Steam, Foam, High Temperature. And High Pressure | Measuring Range: | 0.1m~10/20/30/60/100m |
|---|---|---|---|
| Process Connection: | Flange ≥ DN80 | Process Temperature: | -40～200℃ |
| Process Pressure: | -0.1～2.5MPa | Antenna Size: | 76mm Lens Antenna (according To Flange Size) |
| Antenna Material: | PTFE/overall Filling | Accuracy: | ±1mm |
| Protection Class: | IP67 | Center Frequency: | 80GHz |
| Launch Angle: | 3° | Power Supply: | DC24V/DC12~24V /AC220V |
| Casing: | Aluminum / Plastic / Stainless Steel | Signal Output: | 4...20mA/HART Protocol/RS485 Modbus |
| High Light: | DN80 Flange Fluid Level Meter,Radar Strong Corrosive Liquid Level Meter,Industrial Liquid Level Meter 100m |
||

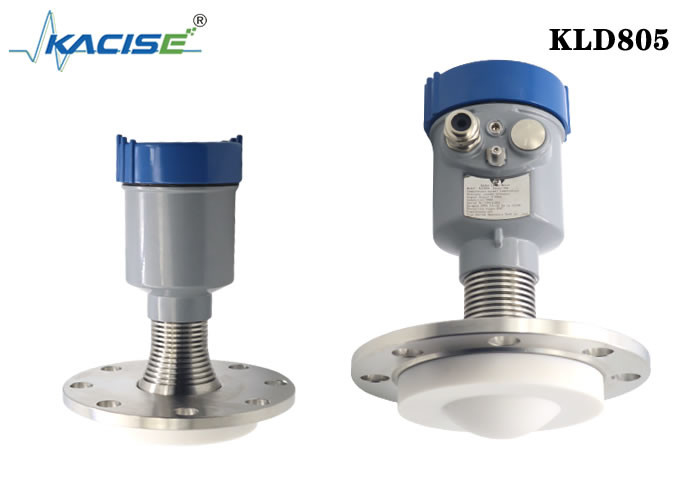

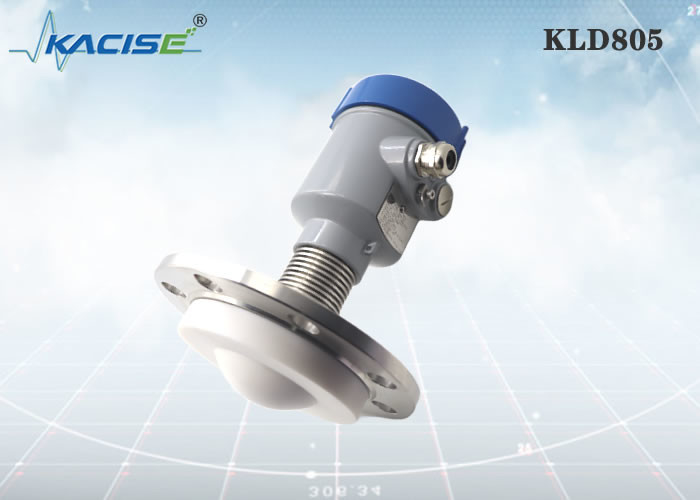

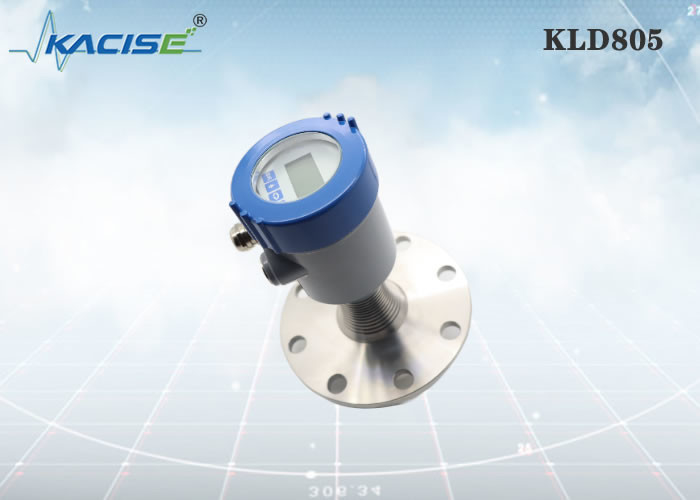

KLD805 80G FM Radar Level Sensor
Introduction
·High temperature conditions
The terahertz FM radar level meter has good penetration performance. For high temperature occasions, thermal insulation accessories such as ceramic or quartz glass can be added to the front end of the antenna. With the special environment learning function, it can measure high temperature liquids.
·Strong corrosiveness

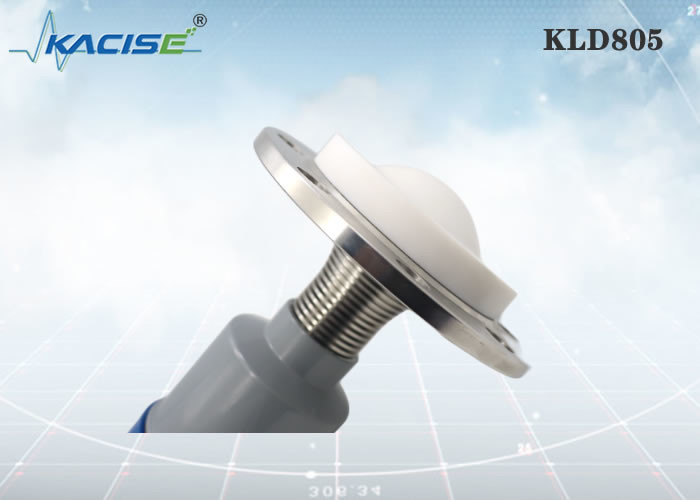

It has good penetration performance. For strong corrosion occasions, the front end of the antenna can be equipped with PTFE or PFA anti-corrosion sheath. And the maximum thickness of 30mm fluoroplastic can be added. It has good pressure resistance while anti-corrosion.
Feature
|
KLD805
|
Medium: strong corrosive liquid, steam, foam, high temperature. and high pressure Measuring range: 0.1m~10/20/30/60/100m Process connection: flange ≥ DN80 Process temperature: -40～200℃ Process pressure: -0.1～2.5MPa Antenna size: 76mm lens antenna (according to flange size) Antenna material: PTFE/overall filling Accuracy: ±1mm Protection class: IP67 Center frequency: 80GHz Launch angle: 3° Power supply: two-wire /DC24V four-wire /DC12~24V four-wire /AC220V Casing: aluminum / plastic / stainless steel Signal output: two-wire /4...20mA/HART protocol four-wire 4...20mA/ RS485 Modbus |
Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions
Casing Dimension
Unit in mm:
Production:
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
