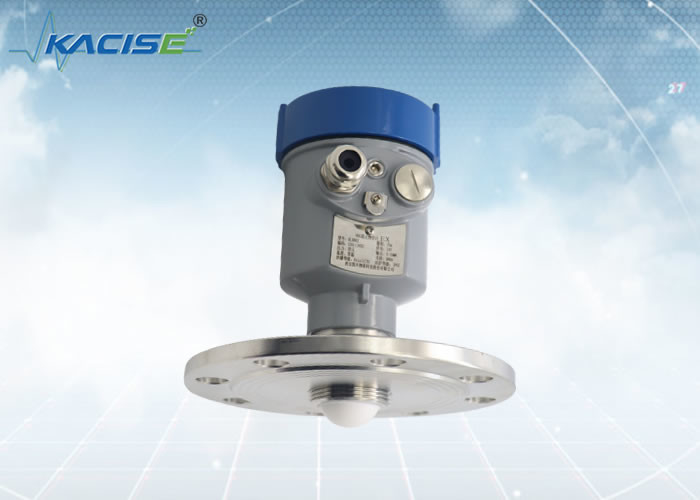

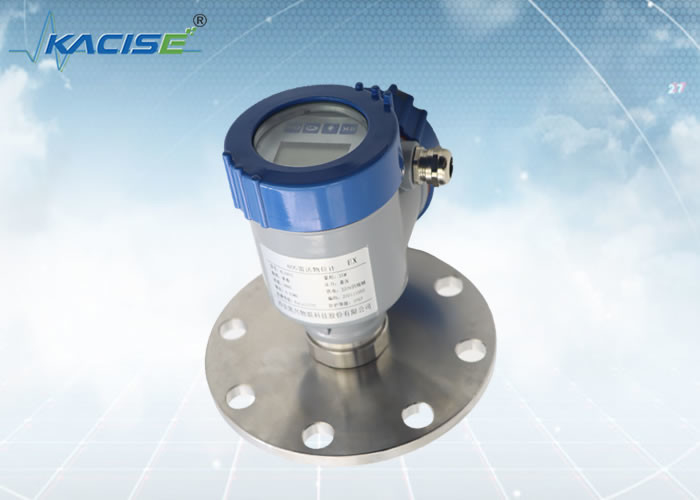

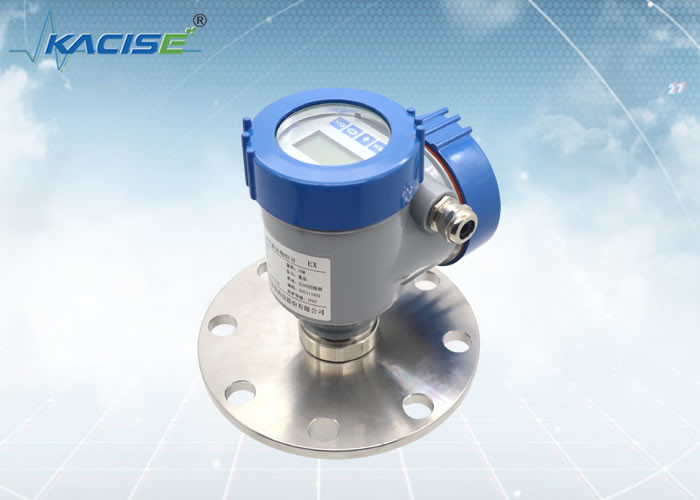

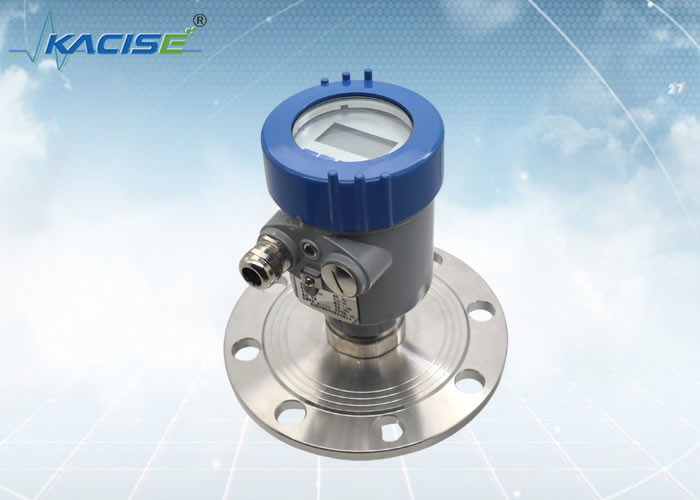

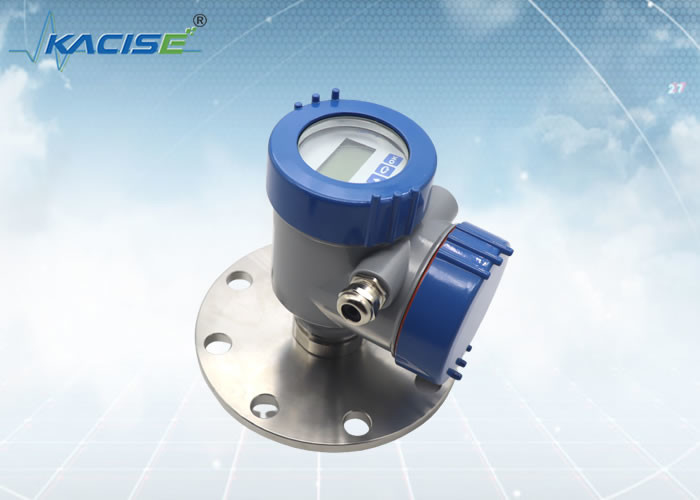

KLD802 PTFE Antenna Radar Level Sensor For Liquids Center frequency 80 GHz，the radar's antenna size is small,

KLD802 80G FM Radar Level Sensor

Introduction

Level in the focus
KLD802 operates with a transmission frequency of 80 GHz. With an 80-mm antenna, this results in a beam angle of only 3°. The radar sensor receives only distinct, definitive reflections from the product surface. This makes the measurement more accurate and reliable.

Previous radar sensors required process fittings with a minimum size of 1½" to achieve adequate signal focusing. For that reason it was virtually impossible to use radar sensors on very small containers with their typically small mounting sockets. KLD802 operates with a transmission frequency of 80 GHz. This corresponds to a factor of 3 compared to the technologies used until now. For that reason, the antenna system and the process fitting can have correspondingly smaller dimensions.

Feature

• Non-contact measurement with FMCW working principle;
• The beam angle is small and it is more easier for the instrument to avoid interferencefrom a possible obstacle;
• The radar's antenna size is small, and it is easy to be installed;The upper dead zone is smaller, it is more suitable for the River Water Monitoring;

Installation





Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
