| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KLD802 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100+ |
| Medium: | Non-corrosive Liquid, Slightly Corrosive Liquid | Measuring Range: | 0.1m~10/20/30/60/100m |
|---|---|---|---|
| Process Connection: | Flange ≥ DN80 | Process Temperature: | -40～110℃ |
| Process Pressure: | -0.1～1.6MPa | Antenna Size: | 32mm Lens Antenna |
| Antenna Material: | PTFE | Accuracy: | ±1mm (range Below 35m)、±5mm (range Between 35m And 100m) |
| Protection Class: | IP67 | Center Frequency: | 80GHz |
| Launch Angle: | 3° | Power Supply: | DC24V/DC12~24V /AC220V |
| Casing: | Aluminum / Plastic / Stainless Steel | Signal Output: | 4...20mA/HART Protocol/RS485 Modbus |
| High Light: | 32mm Lens Antenna Liquid Level Gauge,Corrosive Liquid Radar Level Gauge,IP67 Radar Type Level Gauge |
||

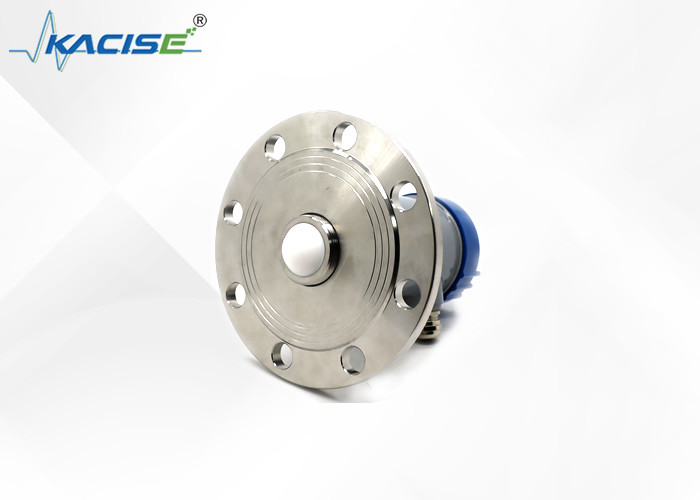

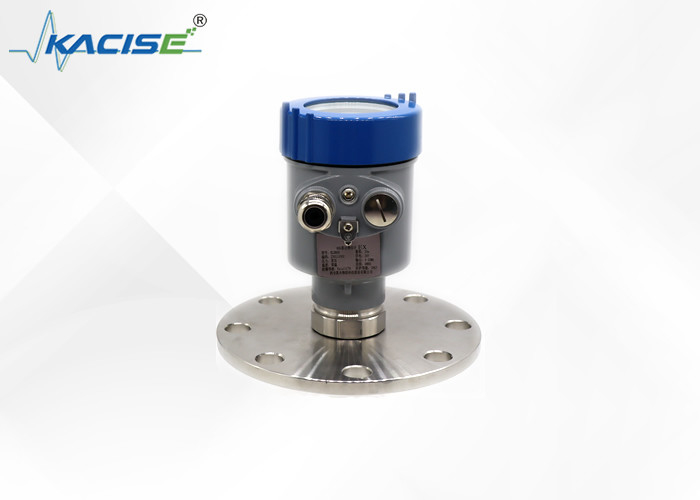

80G Radar Level Gauge For Slightly Corrosive Liquid KLD802
Introduction
KLD800 series 80G radar level gauge adopts frequency modulated continuous wave (FMCW) technology. The antenna emits a high-frequency FM radar signal, and the frequency of the radar signal increases linearly. The transmitted radar signal is received by the same antenna after being reflected by the measured medium. At the same time, the frequency difference between the transmitted signal frequency and the received signal frequency is proportional to the measured distance. The collected frequency difference signal is subjected to fast Fourier transform (FFT) to obtain the spectrum of the reflected echo, and the distance to the target to be measured is calculated based on this.
Feature
⚫ Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
⚫ The smaller antenna size satisfies the measurement of more working conditions.
⚫ A variety of lens antennas, smaller launch angles, more concentrated energy, stronger echo signals, and higher reliability than other radar products under the same industrial and mining conditions.
⚫ It has stronger penetration and can be used normally in the case of adhesion and condensation.
⚫ The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
⚫ Multiple measurement modes, radar response in fast measurement mode
|
KLD802
|
Medium: non-corrosive liquid, slightly corrosive liquid |
Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions
Casing Dimension
Unit in mm:
Production:
