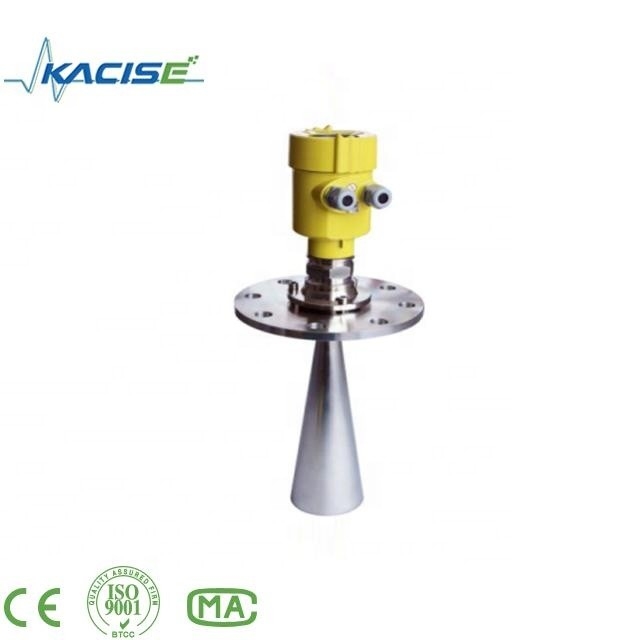

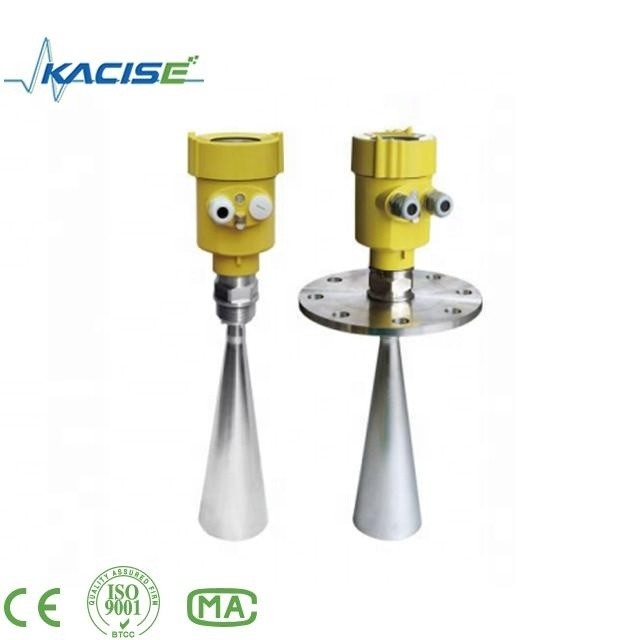

Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485

Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485

Place of Origin:

China

Brand Name:

Kacise

Certification:

CE

Model Number:

KLD

Contact Us
Request A Quote
Product Details
Usage:
Level Sensor
Theory:
Other
Output:
Analog SENSOR
Product Name:
Radar Level Sensor
Measuring Range:
10~80m
Input:
Two-wire (DC24V), Four-wire(DC24V/AC220V)
Output Signal:
4-20mA / HART, RS485
Display Resolution:
1mm
Frequency Range:
26GHz
Liquid Medium:
Water, Sea Water, Sewage, Chemical Liquids, Bases, Oil,
Sanitary/food-grade Liquids:
Milk, Beer, Juice, Alcohol, Red Wine, White Wine, Iodine.
Oil Liquid:
Gasoline, Diesel, Fuel, Palm Oil, Soybean Oil, Peanut Oil .
Solid Medium:
Powder, Granule, Corn, Beans, Bran, Wheat Husk, Coal Ash, Coal.
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$500.00 - $1,000.00/units
Packaging Details
Carton or customers requests available
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
100 Piece/Pieces per Month
Product Description

Oil diesel fuel tank radar level sensor meter gauge



We also produce 6G and Guided wave radar level meter.

Introduction



26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature,pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment



Operation principle



Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal



Features of 26G Radar Level Sensor


 1). Antenna size is small, easy to install;
 2). Non-contact radar, no wear, no pollution.
 3). Almost free from corrosion, foam impact;
 4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
 5). Severe dust working environment has little effect on high-frequency level meter.
 6). Shorter wave length that has a better reflection on the inclined solid surface.
 7). Small beam angle, energy concentration, enhanced echo capabilities meanwhile beneficial to avoid interferences.
 8). Measuring blind zone is smaller, it will achieve good results for canister’s measuring.
 9). High signal to noise ratio, even in the case of fluctuations can obtain better performance.
10). High frequency, it is the best choice for measurement of solids and low dielectric media.



Parameters



KLD-2601
Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 0

Application: All kinds of corrosive liquid

Measuring Range:10 meters

Process Connection: Thread, Flange

Medium Temperature: -40 ~ 130

Process Pressure: -0.1~0.3 MPa

Accuracy: ± 5mm

Protection Grade: IP67

Frequency Range: 26GHz

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia C T6 Ga/ Exd ia IIC T6 Gb

KLD-2602
Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 1 Application:Anti-high temperature, Anti-high pressure                           Liquid, Mildly corrosive liquid
Measuring Range:30 meters
Process Connection:Thread, Flange
Medium Temperature:-40℃ ~ 250℃
Process Pressure:-0.1 ~ 4.0 MPa
Accuracy: ±3mm
Protection Grade:IP67
Frequency Range: 26GHz
Signal Output:4~20mA/HART (Two-wire / Four) RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb
 KLD-2603
 Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 2 Application:Solid material, Strong dust
                 Easy to crystallize, condensation occasion
Measuring Range: 70 meters
Process Connection:Universal Flange Medium
Temperature: -40℃ ~ 250℃
Process Pressure: -0.1 ~ 0.1 MPa
Protection Grade: IP67
Accuracy: ±15mm
Frequency Range:26GHz
Signal Output:4~20mA/HART (Two-wire / Four)                                       RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb
 KLD-2604
Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 3

Application:Solid material, Strong dust,
easy to crystallize, condensation occasion
Measuring Range:80 meters
Process Connection:Universal Flange Medium
Temperature: -40℃ ~ 250℃ Process
Pressure:-0.1 ~ 0.1MPa

Accuracy: ±15mm
Protection Grade:IP67
Frequency Range:26GHz
Signal Output:4... 20mA/HART (Two-wire / Four)

                     RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb

 KLD-2605
 Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 4 Application:Solid particles, Powder
Measuring Range:Liquid 30m/Solid 20m/powder 15m
Process Connection:Thread, Flange
Medium Temperature:-40℃ ~ 250℃
Process Pressure:-0.1 ~ 4.0MPa (Flat Flange)
-0.1 ~ 0.1MPa (Universal Flange)
Accuracy:±10mm
Protection Grade:IP67
Frequency Range:26GHz
Signal Output:4... 20mA/HART (Two-wire / Four) RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb
 KLD-2506
 Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 5

Application:Hygienic liquid storage, Corrosive medium container
Measuring Range:20 meters
Process Connection:Flange
Medium Temperature:-40℃ ~ 130℃
Process Pressure:-0.1 ~ 4.0MPa Accuracy:±3mm
Protection Grade:IP67
Frequency Range:26GHz
Power Supply: Two-wire (DC24V)

                      Four-wire (DC24V/AC220V)
Signal Output:4... 20mA/HART (Two-wire / Four)
                      RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb



Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 6Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 7Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 8Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485 9
