Place of Origin:
CHINA
Brand Name:
KACISE
Certification:
CE
Model Number:
KCF100

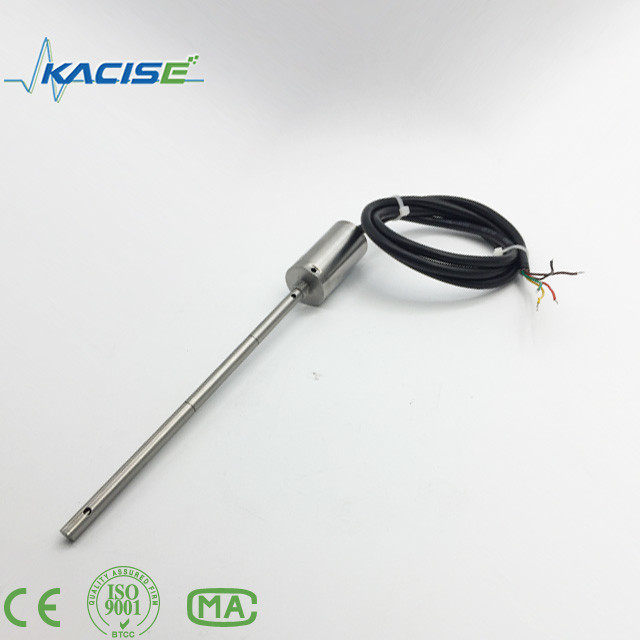

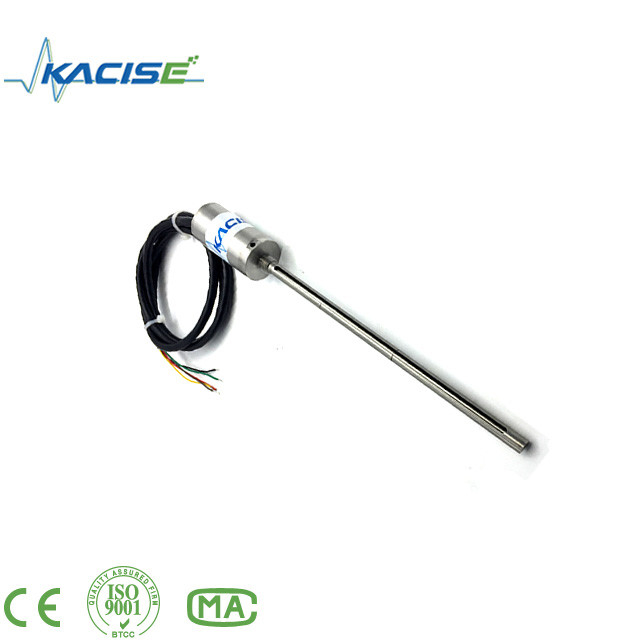

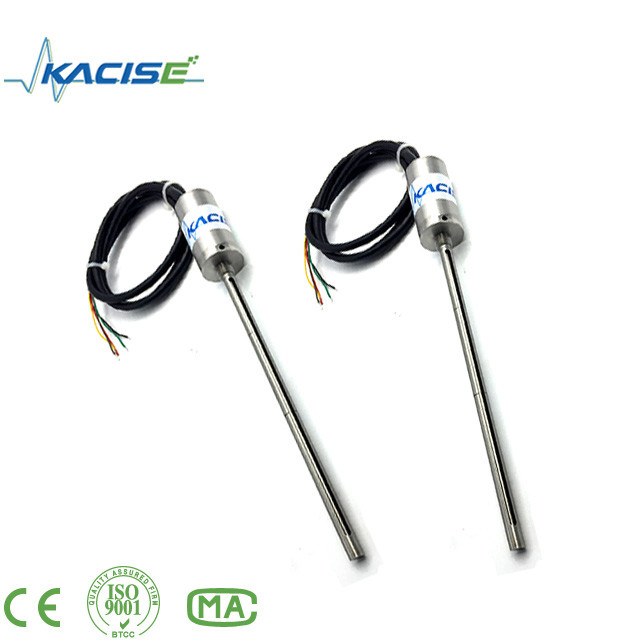

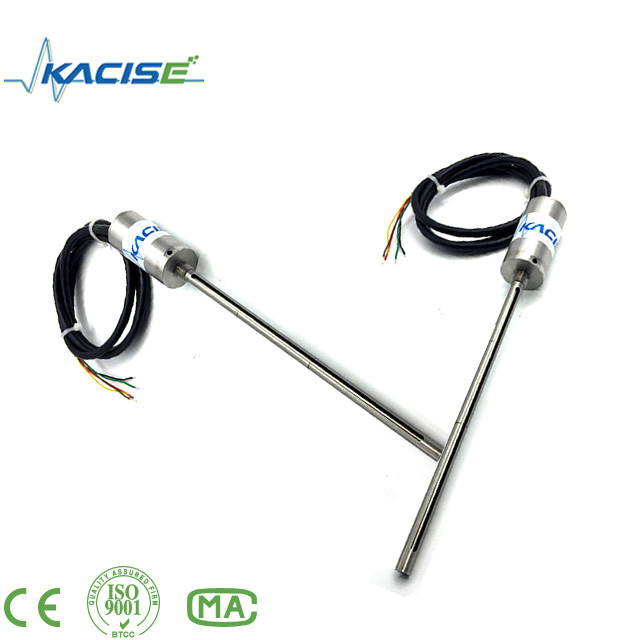

Temperature And Pressure Integrated Liquid Level Transmitter
1. Introduction
KCF100 series temperature and pressure integrated liquid level transmitter is an adjustable capacitance type liquid level transmitter developed by our company for high precision and high stability measurement of oil level and water level. It has short-circuit protection and certain over-voltage surge protection capability, and has the characteristics of fast response, wide voltage supply, strong load capacity and wide temperature measurement range. It supports two calibratable analog outputs, ModBus RTU communication protocol and fast forced zero function, the overall performance is stable and reliable.
2. Features
Range 0~150mm
Short circuit protection and reverse polarity protection
High precision, high stability, high reliability
Temperature, liquid level double output
Protection class IP68
3. Parameter
Spec. | Numerical value |
Level range | 0~150mm |
Temperature range | -30~100℃ |
Accuracy |
Typical error of level 0.35% Temperature error ±2.5 °C |
Response time |
Level measurement is typically less than 1 seconds Temperature measurement is typically less than 3 seconds. |
Load resistance | ≤300Ω |
Working current | < 60mA (when two 4-20mA output same time) |
Operating temperature | -30°C~80°C |
Compensation temperature | -10°C~80°C |
Storage temperature | -40°C~125°C |
Medium compatibility | All Caustic Medium Compatible with 316L |
Output signal | 4~20mA / RS485-Modbus |
Power supplies | 9~24Vdc |
Connection | M10.00*1mm male thread |
Cable | Polyethylene cable |
IP Grade | IP68 |
4. Electronic interface and signals definition
Color |
Definition |
Red |
+V |
Black |
GND |
Brown |
Level output 4-20mA |
White |
Temperature output 4-20mA |
Green |
RS485-A |
Yellow |
RS485-B |
5.Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
