| Place of Origin: | Shaanxi, China |
| Brand Name: | KACISE |
| Model Number: | KLD260 series |
| Price: | $600.00 - $800.00/pieces |
|---|---|
| Packaging Details: | Carton or customers requests available for the KLD260 series 26G Radar Level Transmitter for Water Conservancy Facilities |
| Supply Ability: | 3000 Piece/Pieces per Month |
| Measuring Range: | 30m,70m | Accuracy: | 3mm, 10mm |
|---|---|---|---|
| Power Supply: | DC (6-24V)/ Four-wire , DC24V / Two-wire | Output Signal: | RS485/Modbus Protocol (DC6-24V) , 4-20mA/Hart Two Wire (DC24V) |
| Temperature: | (-40~100)℃ | Item: | KLD260 Series 26G Radar Level For Water Conservancy Facilities |
| Liquid Medium: | Rivers, Lakes, Shallows And Reservoirs | Sanitary/food-grade Liquids: | Milk, Beer, Juice, Alcohol, Red Wine, White Wine, Iodine. |
| Oil Liquid: | Gasoline, Diesel, Fuel, Palm Oil, Soybean Oil, Peanut Oil . | IP Grade: | IP67 / IP65 |
| Port: | Shanghai Or Other |

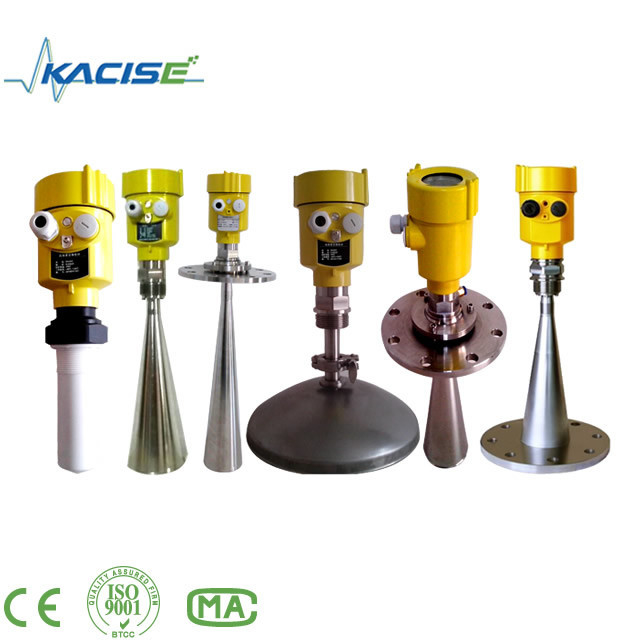

We also produce 6G and guided wave radar level meter .
Introduction
26G Radar level transmitter for water conservancy facilities is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment l
Operation principle
The antenna of the radar material water transmitter will transmit ultra-narrow microwave pulse and the pulse will transmit within the space at a speed of light. If running into a water surface, one part of the electromagnetic wave will be transmitted back and received by the antenna. Applying a high-speed chip and special software, the KLD series 26G radar water level transmitter can accurately recognize the time interval between electromagnetic wave transmission and electromagnetic wave reception. The distance from the radar antenna to the water surface is equal to the time interval multiplies by the speed of electromagnetic wave and then divided by two.
Features of 26G Radar Level for water conservancy facilities
1) The wave beam angle is small, energy is concentrated, capacity of resisting disturbance is stronger and measurement accuracy and reliability are improved;

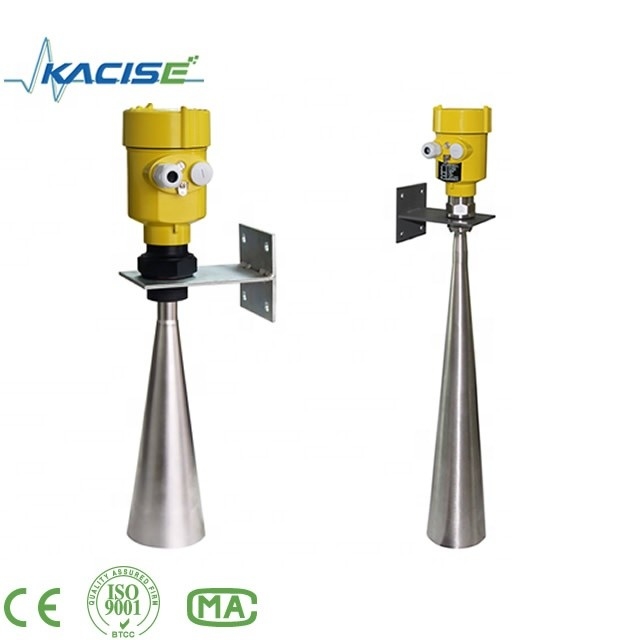

2) The antenna is in small size and it is convenient for the installation and addition of antenna protective device, such as dust cover.
3) As it weighs about 1KG, it can be easily installed and does not pose great load to the horizon bar.
4) The measuring range can reach 70m at the highest and covers the water level measurement of large reservoirs.
5) Interface of various output circuits coordinates with the collection system and it can not only send 485 signal to RTU, but also provide 4-20mA signal.
6) Applying pulse mode, the radar water level transmitter has extremely low transmitting power and it will be no harmful to human and animals.
Parameters
|
KLD2608 |
|
|
|
Application: Rivers, lakes, shallows and reservoirs Measuring range: 30m Connection: thread G1½ A/ bracket/ flange Temperature: -40~100℃ Pressure: Normal pressure Precision: ±3mm Frequency range: 26GHz IP grade: IP67 / IP65 Power supply:DC (6-24V)/ four-wire DC24V / two-wire Signal output: RS485/Modbus protocol (DC6-24V) 4-20mA/Hart two wire (DC24V) Display: optional Case: aluminum/ plastic
|
|
KLD2609 |
|
|
|
Application:Rivers, lakes, shallows and reservoirs Measuring Range:70m Connection:thread G1½ A/ bracket/ flange Temperature: -40~100℃ Pressure: Normal pressure Precision: ±10mm Frequency range: 26GHz IP grade: IP67 / IP65 Power supply: DC (6-24V)/ four-wire, DC24V / two-wire Signal output: RS485/Modbus protocol(DC6-24V), 4-20mA/Hart two wire (DC24V) Display: optional Case: aluminum/ plastic |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, medium, measuring range, output signal, power supply,
temperature, installation method, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ for the KLD260 series 26G Radar Level Transmitter for Water Conservancy Facilities?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for the KLD260 series 26G Radar Level Transmitter for Water Conservancy Facilities?
A: Yes, we have the warranty of 12 months.
