| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | KLD260 series |
| Price: | $600.00 - $1,100.00/pieces |
|---|---|
| Packaging Details: | 1pc/box, many boxes/ carton, some carton/wooden case, or customers requests available |
| Supply Ability: | 200 Piece/Pieces per Month |
| Process Connection: | Thread Or Flange | Measuring Range: | 10m, 20m, 30m, 70m, 80m |
|---|---|---|---|
| Signal Output: | 4...20mA/HART/RS485 Modbus | Explosion-proof Grade: | Exia IIC T6 Ga/ Exd Ia IIC T6 Gb |
| Medium: | Corrosive Liquid/solid/powder | Temperature: | -40~400℃ |
| Frequency Range: | 26GHz | Port: | Shanghai Or Other |

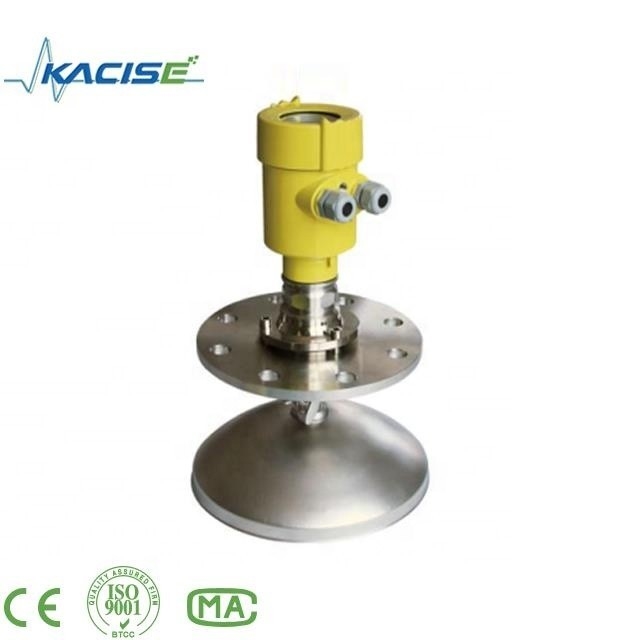

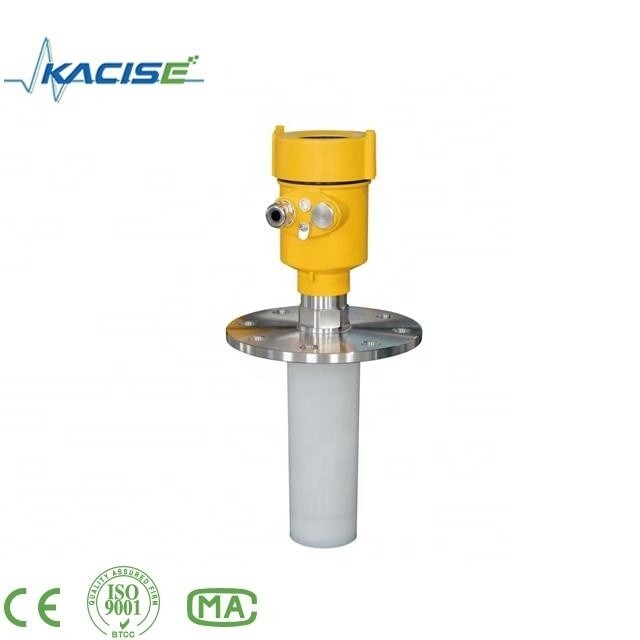

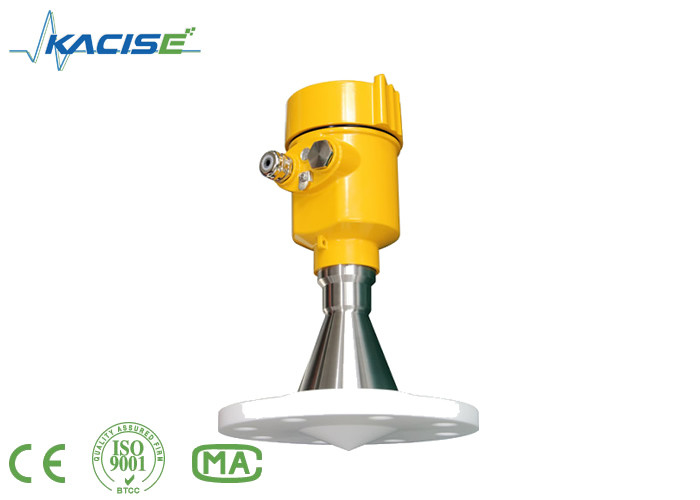

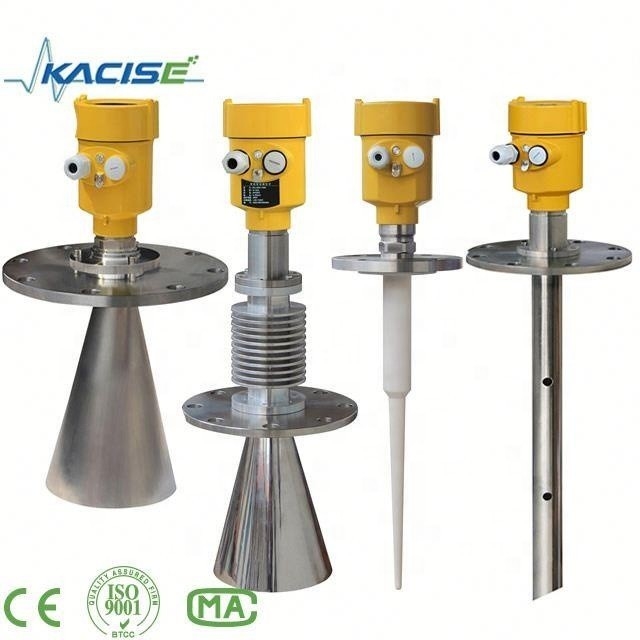

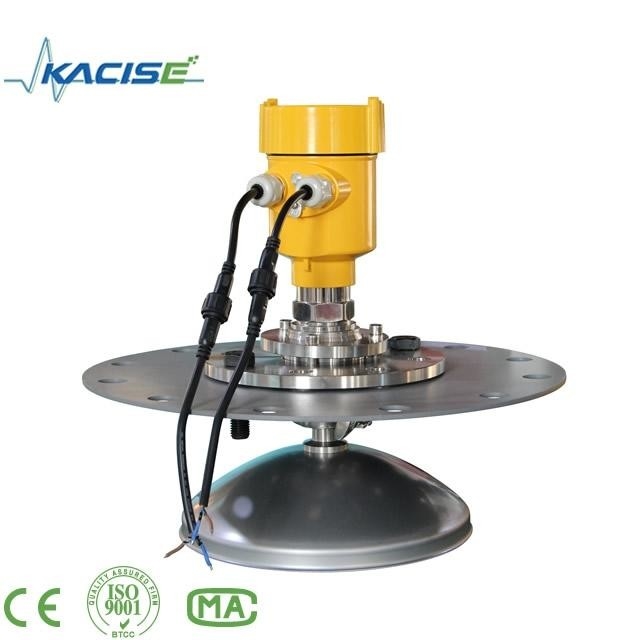

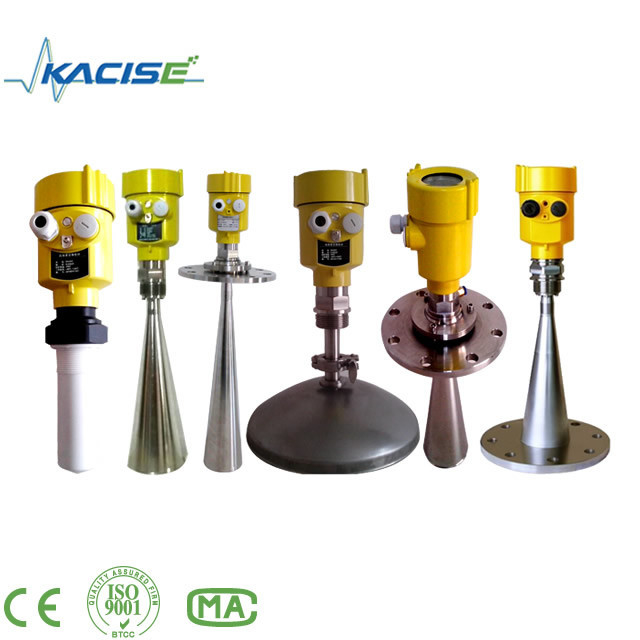

KLD260 series 26G High Frequency Radar Level Meter
We also produce 6G and guided wave radar level meter.
Introduction
26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment
Operation principle
Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal
Features of 26G Radar Level Sensor
1). Antenna size is small, easy to install;
2). Non-contact radar, no wear, no pollution.
3). Almost free from corrosion, foam impact;
4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
5). Severe dust working environment has little effect on high-frequency level meter.
6). Shorter wave length that has a better reflection on the inclined solid surface.
Parameters
|
KLD2601 |
|
|
|
Application: All kinds of corrosive liquid |
|
KLD2602 |
|
|
|
|
|
KLD2603 |
|
|
|
|
|
KLD2604 |
|
|
|
|
|
KLD2605 |
|
|
|
|
|
KLD2606 |
|
|
|
Application:Hygienic liquid storage, Corrosive medium container Measuring Range:20 meters Process Connection:Flange Medium Temperature:-40℃ ~ 130℃ Process Pressure:-0.1 ~ 4.0MPa Accuracy:± 3mm Protection Grade:IP67 Frequency Range:26GHz Power Supply: Two-wire (DC24V) / Four-wire (DC24V/AC220V) Signal Output:4~ 20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb
|
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, medium, measuring range, output signal, power supply,
temperature, installation method, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ for the KLD260 series 26G High Frequency Radar Level Mete?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
