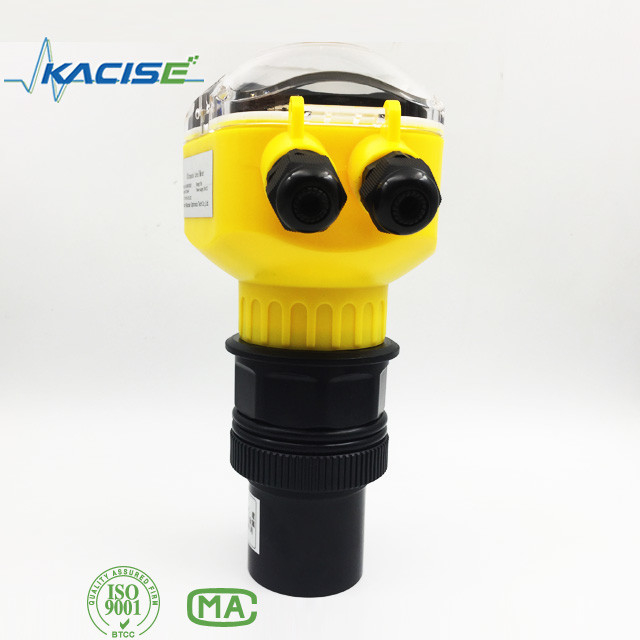

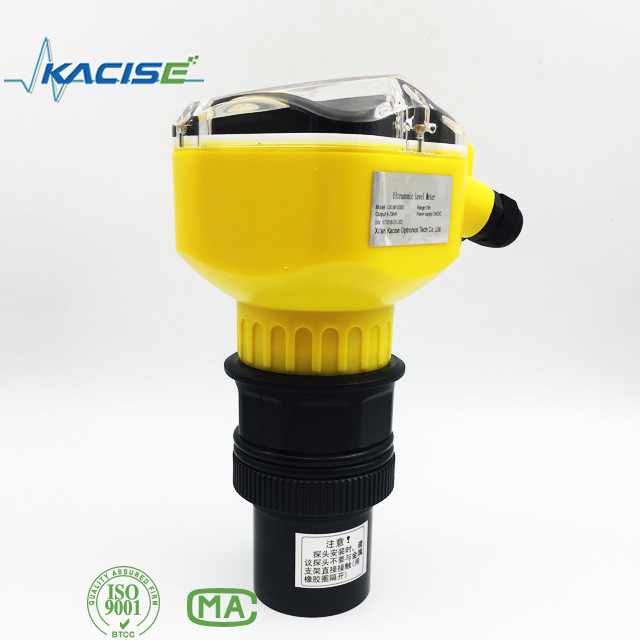

High quality long distance ultra short blind zone GXUM series intelligent water level measurement/transducer

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	GX support OEM
Model Number:	GXUS series

Payment & Shipping Terms:

Price:	$80.00 - $200.00/pieces
Packaging Details:	carton or wooden box
Supply Ability:	1000 Piece/Pieces per Month water level transducer

Contact Now

Detailed Product Description

Model:	Ultrasonic Level Meter	Product Feature:	Water Level Transducer
Measurement Range:	5m,10m,15m,20m,30m,40m,50m,60m,70m	Measurement Accuracy:	0.25%-0.5%
Environment Temperature:	Display Instrument-20~+60°C, Transducer-20~+80°C	Port:	Xi'an Or Other

High quality long distance ultra short blind zone GXUM series intelligent water level transducer/measurement

Feature

1. Non-Contact measurement.

2.Cost effective.

3. Easy to installation and set,you can calibrate the instrument completely according to our manual.

4. Easy to use spport Modbus protocol (both RTU and ASCII).

4.Eight types algorithm can be choose to adapt to a variety application field.

5.Accuracy can be 0.3% and against all kinds of interference waves.

6.This instrument is a non-contact instrument, so it has low breakdown rate. It provides a variety of installation methods.

Parameters of water level transducer

Function	Integral type	Split type
Measurement range	5m,10m,15m,20m,30m,40m,50m,60m	5m,10m,15m,20m,30m,40m,50m,60m,70m
Measurement accuracy	0.25%-0.5%	0.25%-0.5%
resolution	3mm or 0.1%(which is bigger)	3mm or 0.1%( which is bigger)
display	Chinese and English LCD	Chinese and English LCD
Analog output	4wires4~20mA/750Ω load 2wires4~20mA/250Ω load	4~20mA/750Ω load
Relay output	2groups AC 250V/ 8A or DC 30V/ 5A state programmable(optional)	Single channel for two groups, double channels for four groups AC 250V/ 8A or DC 30V/ 5A state programmable( optional )
Power supply	Standard configuration 24VDC optional 220V AC+15% 50Hz optional 12VDC or customerized power supply	Standard configuration 220V AC+15% 50Hz optional 24VDC 120mA optional 12VDC or customerized power supply
Environment temperature	Display instrument-20~+60°C, transducer-20~+80°C	Display instrument -20~+60°C, transducer-20~+80°C
communication	Optional 485,232 communication(Manufacturer agreement)	Optional 485,232 communication(Manufacturer agreement )
Protection grade	Display instrument IP65,transducer IP68	Display instrument IP65,transducer IP68
transducer cable	no	Up to 100 m, Standard configuration 10m
Transducer installation	According to the range and transducer select	According to the range and transducer select

Note:This series of ultrasonic level meter can also customize according to the customer demands: special specifications of transducer such as high voltage, high temperature resistant, minor-caliber, small blind area and so on.

Installation dimensions:

Integral enhanced ultrasonic water level transducer :

High quality long distance ultra short blind zone GXUM series intelligent water level measurement/transducer 0

Integral explosion-proof ultrasonic water level transducer :

High quality long distance ultra short blind zone GXUM series intelligent water level measurement/transducer 1

Products photos

Related prducts

Packaging & Shipping

Package

1pc/box, many boxes/ carton, or customer's requests available.

Our Services

The quality principle: Quality is the best sales

Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow

Shipping:

1.All parts will be shipped out within 1 - 3 working days after comfirm the payment

2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex

3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service

We promise to deliver the following after-sales service:

1. Warranty: The warranty period is 12 months starting from the shipping date;

2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Company Information

Company show

We supply high quality ultrasonic level meters, please let us know your requirements, we will try best to provide most suitable solution for you. Please feel free to send us an inquiry, we will reply you within 24 hours.

FAQ

1. How do ultrasonic level sensors work?

An ultrasonic sound pulse is pulsed periodically from the base of the transducer. The pulse travels through air, reflects against the process medium below and returns to the transducer. The sensor measures the pulse time of flight between sound generation and receipt, and translated this into distance or liquid level height within the vessel.

2. What are the advantages of ultrasonic level sensors?
Many application liquids have challenging characteristics that negatively impact contact type sensor performance, maintenance and/or replacement costs. Examples include corrosive, coating, scaling, viscous and dirty liquids. Ultrasonic sensors are non-contact, and therefore impervious to these characteristic.

3. What should I avoid with ultrasonic level sensors?

The application variables to avoid with ultrasonic are extreme foam, vapor, turbulence or installation in tall fittings with narrow risers. Foam, vapor and turbulence can absorb and/or deflect away a substantial portion of the return signal. Tall riser fittings can disrupt the acoustic signal path. Appropriate product selection and installation is important.

4. How do I select the best GXUM series intelligent water level transducer range for optimum performance?

Select a range of GXUM series intelligent water level transducer range that covers the tank height with at least 25% margin. In challenging applications with light foam, vapor and/or turbulence, select a sensor range that is double the tank height. The additional sensor will improve performance in such conditions.
5. What does the 4-20 mA signal represent?
The 4-20 mA represents the sensor's measurement distance. The 4 mA set point is normally placed near the bottom of the empty tank, or the greatest measurement distance from the sensor. The 20 mA set point is normally placed near the top of the full tank, or the shortest measurement distance from the sensor. The sensor will proportionately generate a 4 mA signal when the tank is empty and a 20 mA signal when the tank is full.
