High performance good price handheld ultrasonic hydraulic flow meter

Introduction

KUFH2000 ultrasonic flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a handheld measurement system which is both easy to install and use. The KUFH2000 operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next.

Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. The KUFH2000 can be used for metallic, plastic and rubber tubes.  And it can measure heat if adding temperature sensor.

Features

• 1% accuracy.
• Non-contact to liquid measurement, so non-conductive, corrosive, explosive liquid can be measured.
• Wide range for various application fields. (DN15-DN6000)

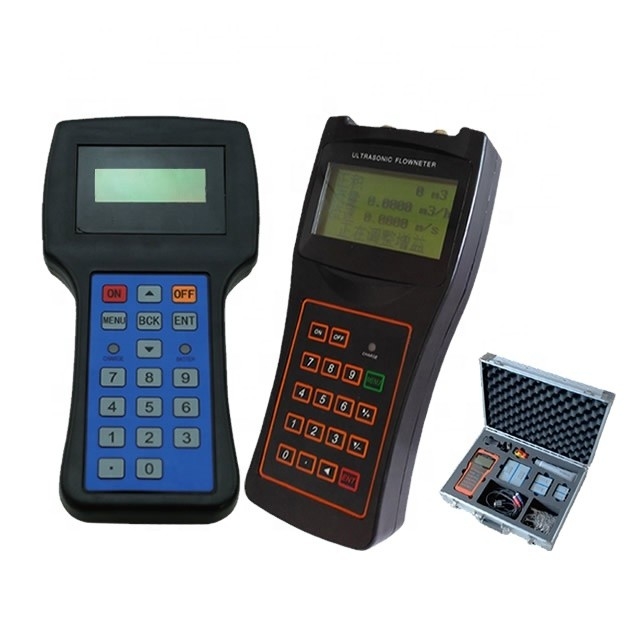

• Portable handheld host meter with clamp-on sensors measure liquid flows nearly anywhere.
• No mechanical drive in ultasonic flowmeter, parts are rarely damaged. Maintenance free and long operating life.
• Easy and quick installation. Save time with no pipe cutting or process shutdown.
• No obstruction measurement, no pressure loss.

Specifications

Description of parts

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

• Your inquiry will be replied in 24hours.
• Well-trained and experienced staffs to answer all your enquires in fluent English.
• OEM&ODM, we can help you to design and your request will be put into product.
• Distributorship are offered for your unique design and some our current models.
• Protection of your sales area, ideas of design and all your private information.
• Discounts are offered based on order quantities.
• We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

1. Q: What information need to be provided to choose the suitable model?

    A: Please provide us: application field, pipe size , pipe material, medium( liquid type),

         temperature, installation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ for the handheld ultrasonic flow meter?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

         For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

        And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for the handheld ultrasonic flow meter?

    A: Yes, we have the warranty of 12 months.
