GPS&GPRS Diesel Fuel Tank Level Sensor with Timing Work Time 5 minute ~ 1000 minute(can set)

System summarize of diesel fuel tank level sensor

 “Terminal” Structure Drawing of  fuel tank level sensor

GXPS609(GPRS) terminal structure drawing: as picture one

Parameter of  tank level sensor

1) “Terminal” battery use time limit: for example, use number one battery “ER34615M”, its capacity is 14.5AH, the “System” work frequency is work once per hour: The GXPS609 (GPS) terminal can work about 120 days.

2) Battery model select: recommend use number one battery “ER34615M”. If user want select battery by self, please according to the battery standard as following. battery voltage: 3.0VDC~3.6VDC; max continue output current: more than 0.5A; pulse output current capacity: more than 1A.

3) Power supply use illuminate: the “Terminal” can use battery or external power supply. See the terminal structure drawing, the position of external power supply in the “External Electrical Interface”, in the interface, “1” is anode, “2” is cathode.

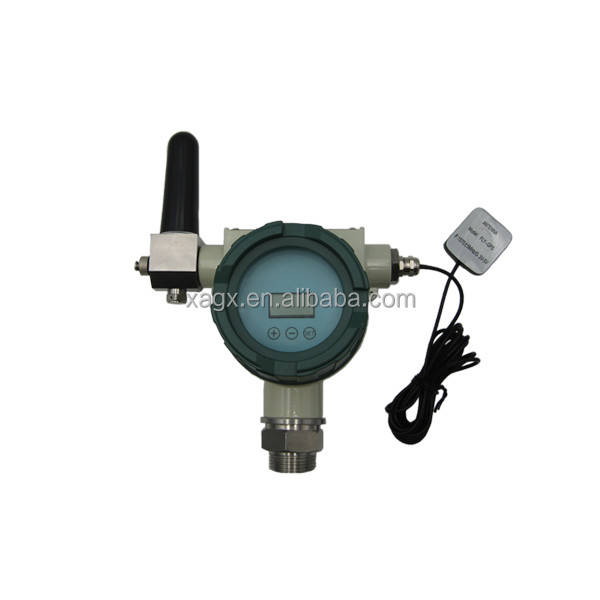

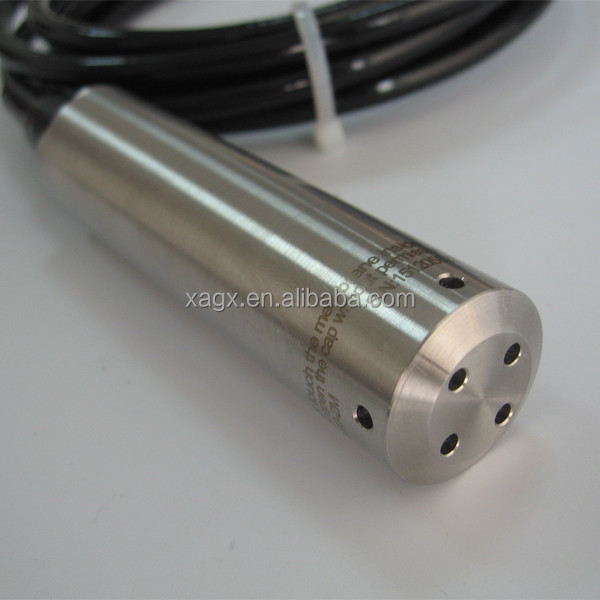

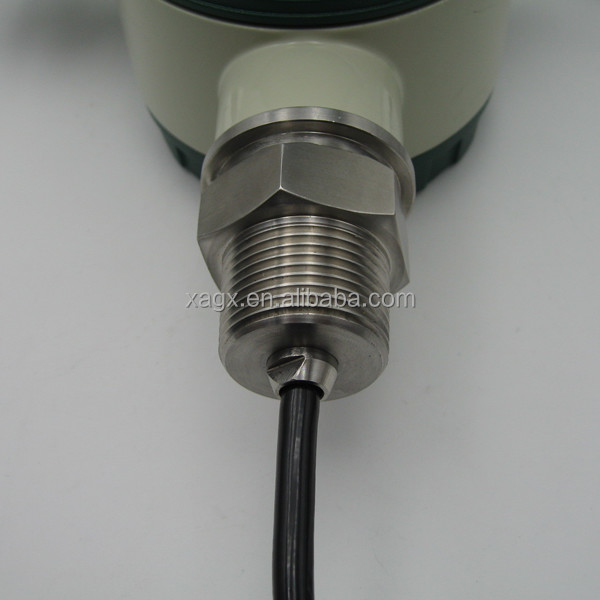

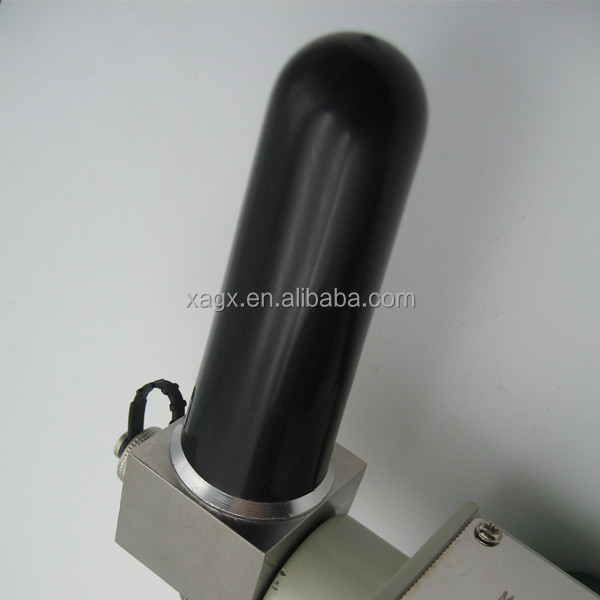

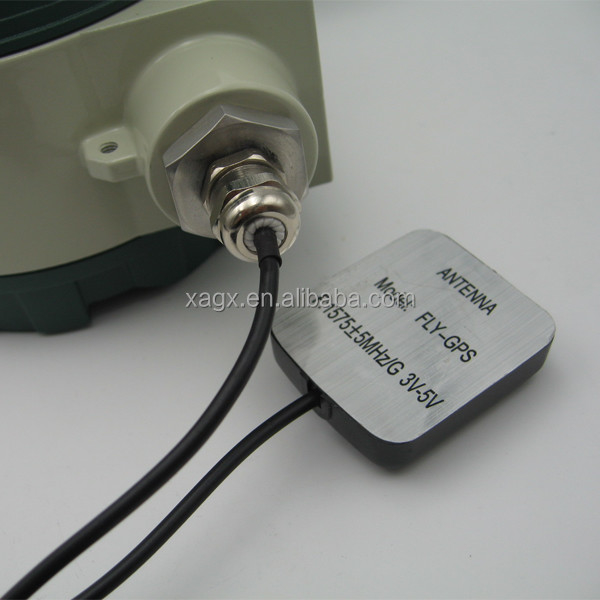

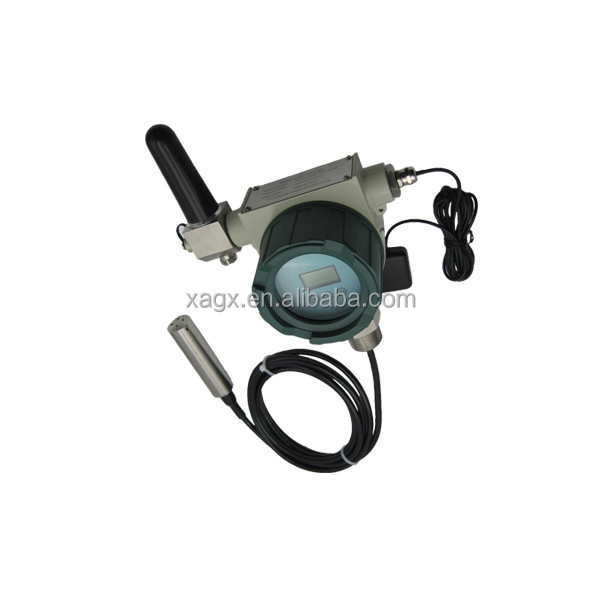

Photo of diesel fuel tank level sensor

Our Services

Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.

Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
