| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXUM |
| Price: | $150.00 - $593.00/pieces |
|---|---|
| Packaging Details: | 1pc/ bag, 1bag/ box, many boxes/carton, or customizd available |
| Supply Ability: | 1200 Piece/Pieces per Week ultrasonic level sensor |
| Range: | 5,10,15,20,25,30,,40,50,60,70m | Analog Output: | 4~20mA |
|---|---|---|---|
| Relay Output: | Available | Output: | RS485, RS232 |
| Type: | Ultrasonic Level Sensor | Port: | Xi'an, Shanghai, Tianjin Or Other |
RS485&232 4~20mA relay ultrasonic sensors distance
ultrasonic level sensor
Introduction of ultrasonic sensors
ultrasonic level sensor

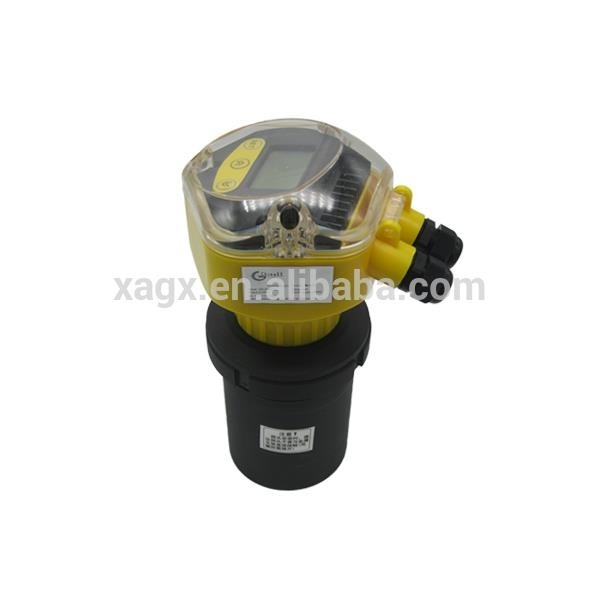

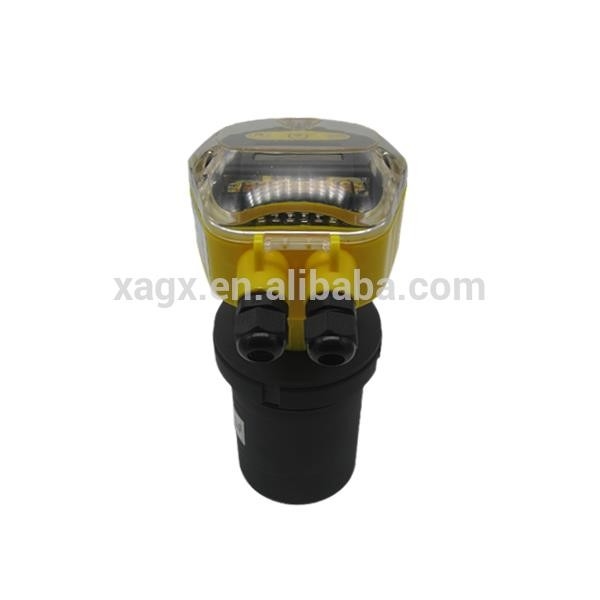

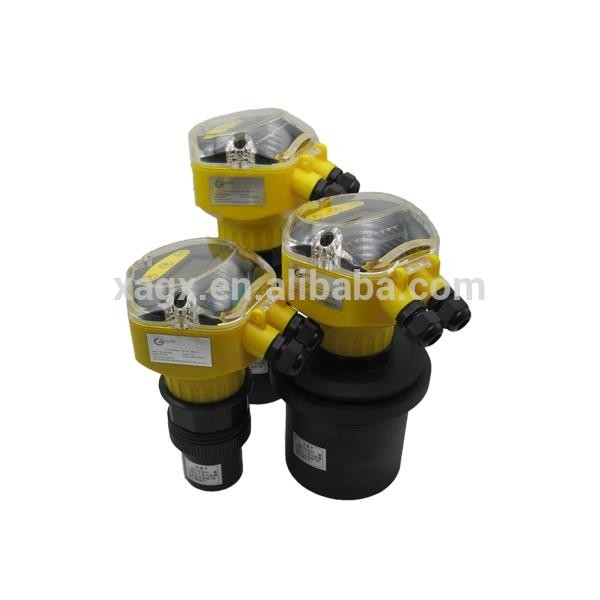

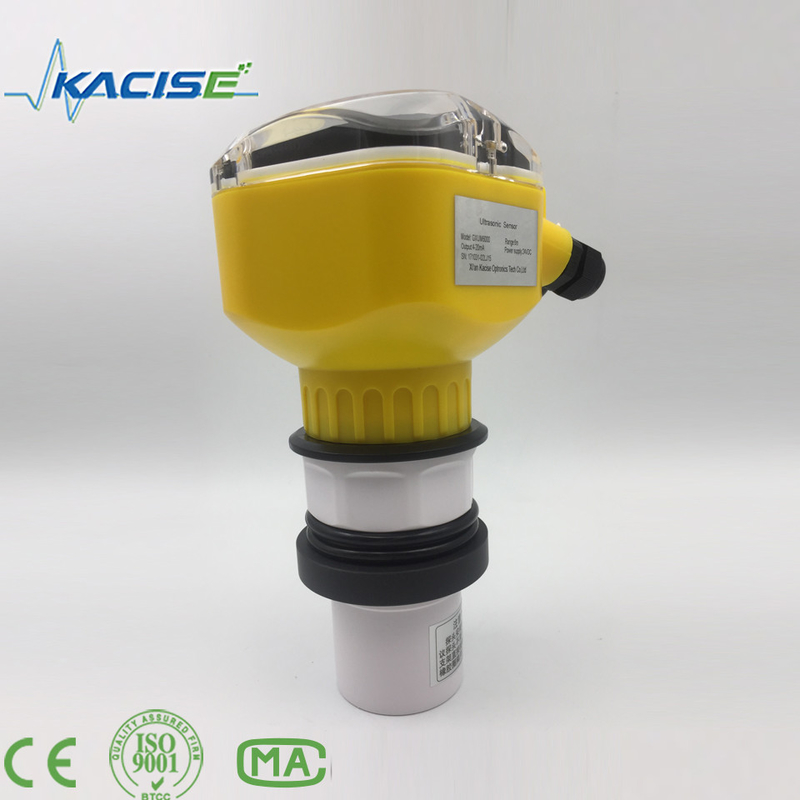

GXUM ultrasonic level (material place,liquid level) meter,is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement.
Parameter of ultrasonic sensor distance
Function | Integral type | Split type |
Range | 5,10,15,20,30,40,50,60m | 5,10,15,20,30,40,50,60,70m |
Accuracy | 1%(0.25~0.5% under laboratory condition) | |
Resolution | 3mm or 0.1%(The larger one is effective) | |
Display | Chinese and English LCD | Chinese and English LCD |
Analog output | 4wires4~20mA/510Ω load 2wires4~20mA/250Ω load | 4~20mA/510Ω load |
Relay output | 2 AC 250V/ 8A or DC 30V/ 5A state programmable(optional) | 2 for GXUMS series product , 4 for GXUMSD series AC 250V/ 8A or DC 30V/ 5A state programmable(optional) |
Power supply | Standard configuration 24VDC(default) 220V AC+15%@50Hz or 110V AC+15%@60Hz | 220V AC+15%@50Hz(default) 24VDC or 12VDC or 110V AC+15%@60Hz |
Environment temperature | Display instrument-20~+60°C, transducer-20~+80°C | Display instrument -20~+60°C, transducer-20~+80°C |
Communication | RS485(default),RS232 | |
Protocol | Modbus-RTU(default) or Modbus-ASCII | |
Protection grade | Display instrument IP65,transducer IP68 | |
Transducer cable | No | 10m(default) can be ordered as need but cannot longer than 100m |
Transducer installation | According to the range and transducer select | According to the range and transducer select |

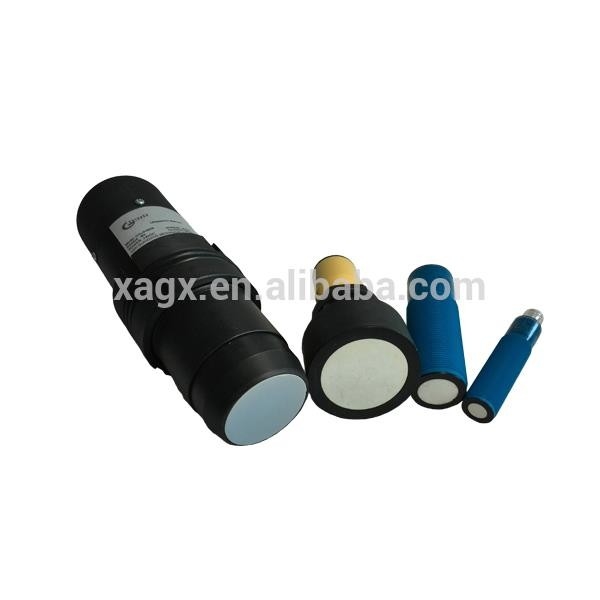

Probe type | There are 6 type probes now and also there is 3 type under develop. Type1:PVDF Type2:aluminium alloy Type3:ABS Type4: stainless steel 316 Type5: Teflon Type6:titanium alloy We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe. | |
Note:This series of ultrasonic level meter can also customize according to the customer demands: special specifications of transducer such as high voltage, high temperature resistant, minor-caliber, small blind area and so on.
GSM GPRS tank level sensor

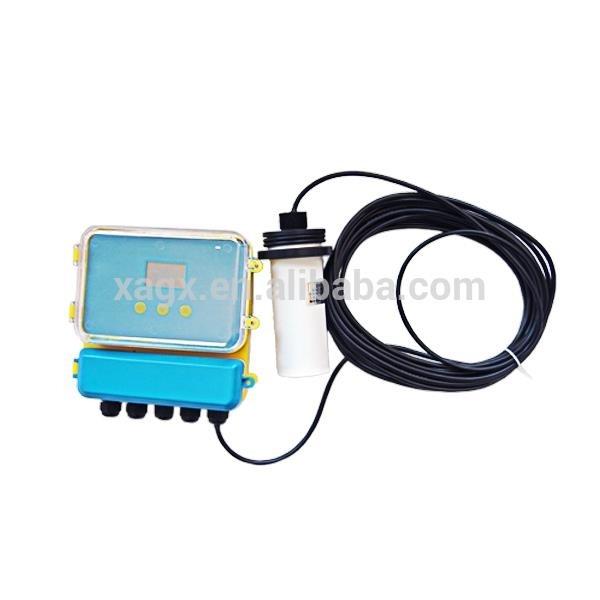

GXUM series split type ultrasonic level sensor
GXUS Series ultrasonic level or distance transmitter ultrasonic level sensor
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
