| Place of Origin: | Shaanxi, China |
| Brand Name: | GX |

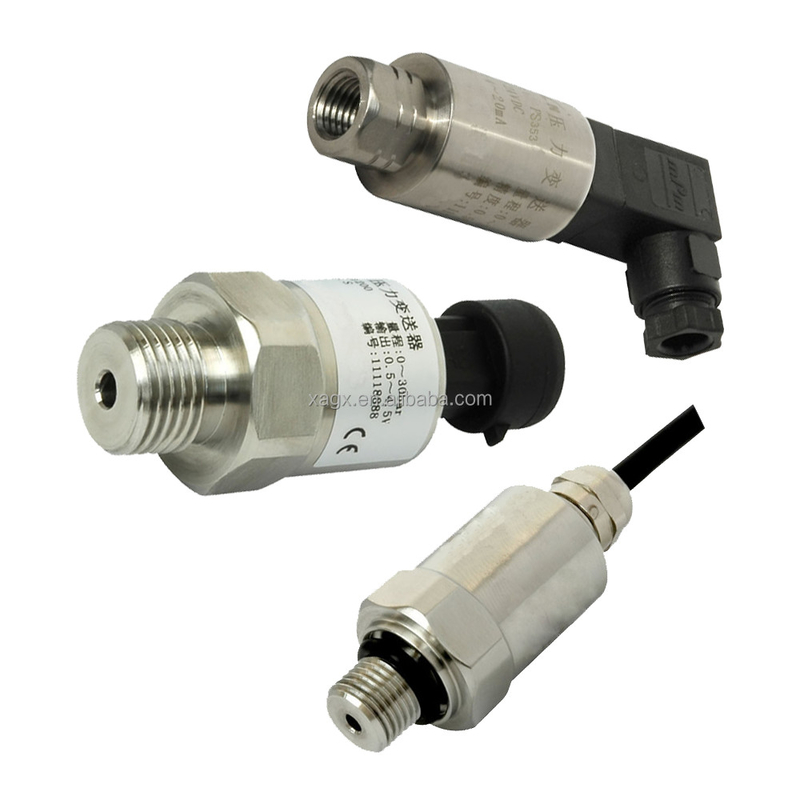

| Model Number: | GXPS353 |
| Price: | $80.00 - $260.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week coolant level sensor |
| Output: | Optional 0/1-5V 0-10V 4-20mA | Usage: | Coolant Level Sensor |
|---|---|---|---|
| Theory: | Resistance Sensor | Output: | Analog Sensor |
| Pressure Range: | 0~5bar......50bar | Accuracy: | ±0.5%F.S, ±1.0%F.S , ±2.0%F.S |
| Operating Temperature: | -40°C~120°C | Load Pressure: | (U-10)/0.02(Ω) |
| Insulation: | >100M @Ω50V | Pressure Port: | G1/4, NPT1/4, 7/16-20UNF |
| Port: | Shanghai Or Other |
1). Accuracy: ±0.25, ±0.5, ±1%F.S
2). High stability, high reliability
3). Import German ceramic core body
4). Digital calibration
5). Variety of connector choice
6). Variety of pressure port
7). Zero can be arbitrarily displaced
8). Variable drive can be between 50 to 100%
9). CE certificate
10). RoHS compliant
Application
1). Compressor coolant level sensor
2). Floor house water supply
3). Hydraulic control
4). Air conditioning unit
5). Automobile engine
6). Automatic detection system
7). Hydraulic unit
8). Refrigeration equipment
Spec. | Value | |||
Pressure range | 0~2bar ......600bar | |||
Load pressure | 1.5times nominal value pressure (1.5X) | |||
Rupture pressure | 3times nominal value pressure (3X) | |||
Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | |||
Stability | Typical value 0.5%F.S, Max. value: 1%F.S | |||
Operating temperature | -40°C~100°C | |||
Compensation temperature | -10°C~ 80°C | |||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
Electrical performance | 2 wire system | 3 wire system | ||
Output signal | 4~20mA | 0.5~4.5V | ||
Power supply | 10~30Vdc | 5Vdc | 10~30Vdc | |
Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
Insulation | >100MΩ@50V | |||
Electric strength | 500V@60 second | |||
Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
Pressure durable | 2×106pressure circle @25°C | |||
Electrical connection | Packard, Hirsmann , air plugs, fixed cable, water proof cable | |||
Pressure port | G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2, | |||
Pressure type | G, S | Response time: 10ms | ||
Certificate | Intrinsically safe mode E, RoHS; CE | |||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
1.100% real photos--Detailed images, detailed description
2.7*24 hours online--Efficient service, Professional answers
3.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
4. OEM is available; small quantities, mixed bulk orders are also welcome;
5. Payment: L/C, T/T, Paypal , Western Union, MoneyGram;
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
7.The sale of products within one year warranty and life time maintenance.
