2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KUS550

Document:

KUS550 series ultrasonic se....8.pdf

Request A Quote

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

Product Details

Accuracy:

0.5%, 1.0%

Working Current:

≤ 45 MA (fastest Measurement Speed), Typical Power Consumption ≤ 10 MA;

Output Signal:

0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog Output.

Ranging Resolution:

0.1mm

Port:

Shanghai Or Other

Temperature Compensation:

Yes

Supply Voltage:

3.3 ... 30 VDC, Ripple 10 %SS

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$50.00 - $180.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KDI Series Display Controller Supporting Multi - Machine Communication

Get Best Price

Video

KDI Series Display Controller with Open Internal Parameter Setting Interface High Accuracy and 0.1 Resolution

Get Best Price

Video

Accurate KDI Series Measurement Display Controller with Multiple Index Input Switching and Temperature Compensation

Get Best Price

Video

KDI Series Light Column Display Controller With Digital And Analog Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

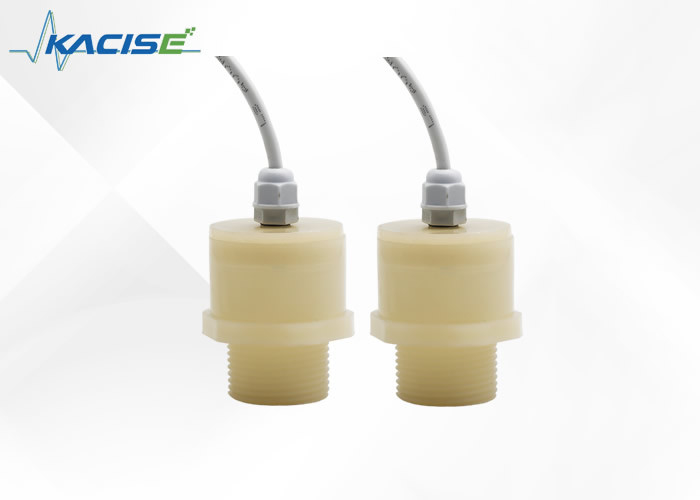

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm 0

1. Features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

2. Dimension

Unit in the diagram is mm.

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm 1

3. Electronic interface and signals definition

Analogue output type wiring diagram

2024 Ultrasonic sensor distance meter with ranging resolution 0.1mm 2
Switch output type wiring diagram

4.Applications

.Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial sensor

5. Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃ (233...358K)
Storage temperature	-40…85℃ (233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output) .
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS
